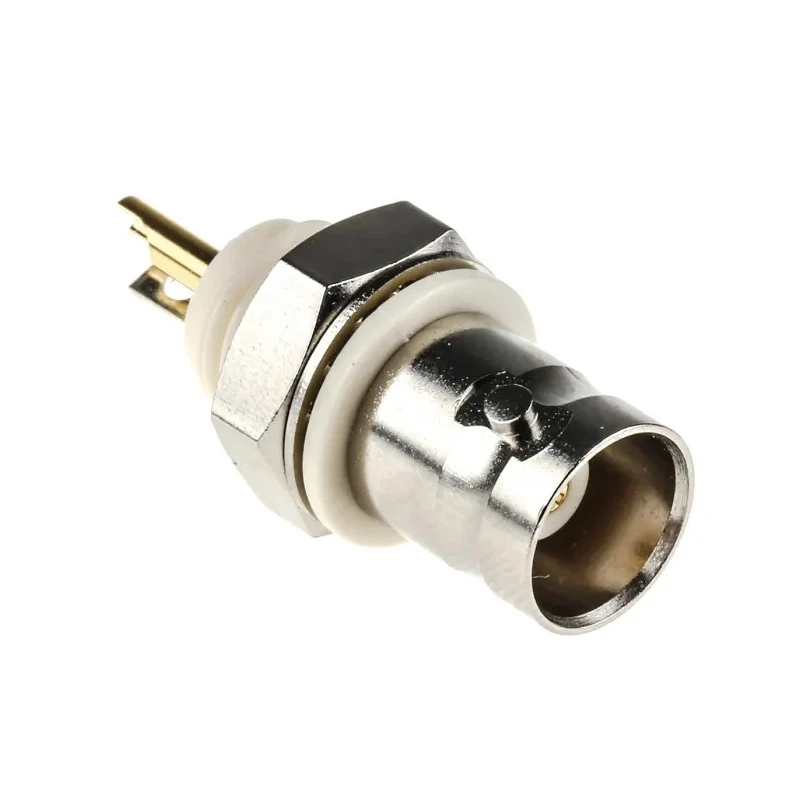

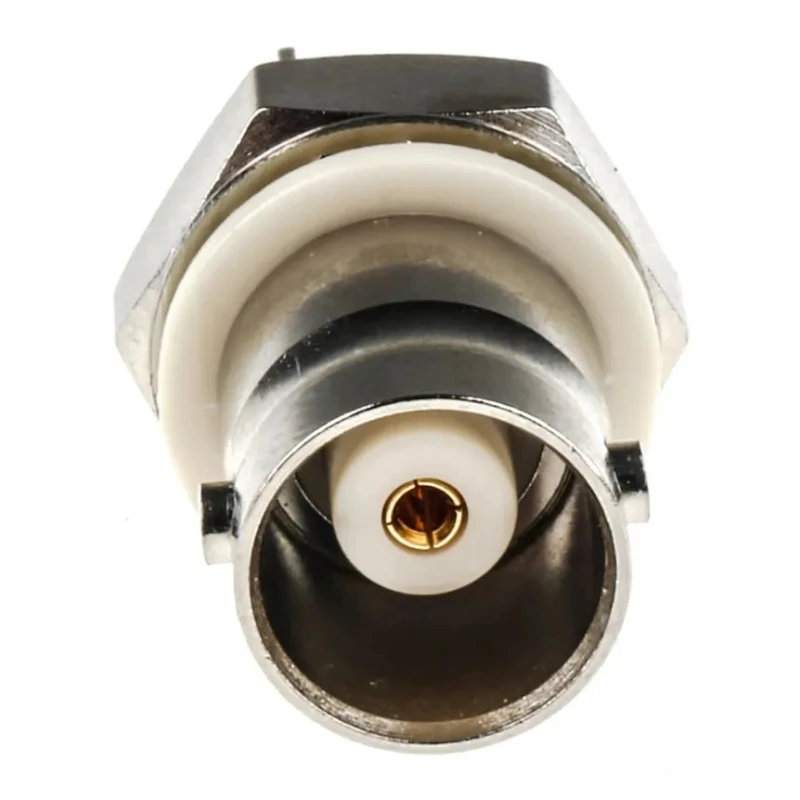

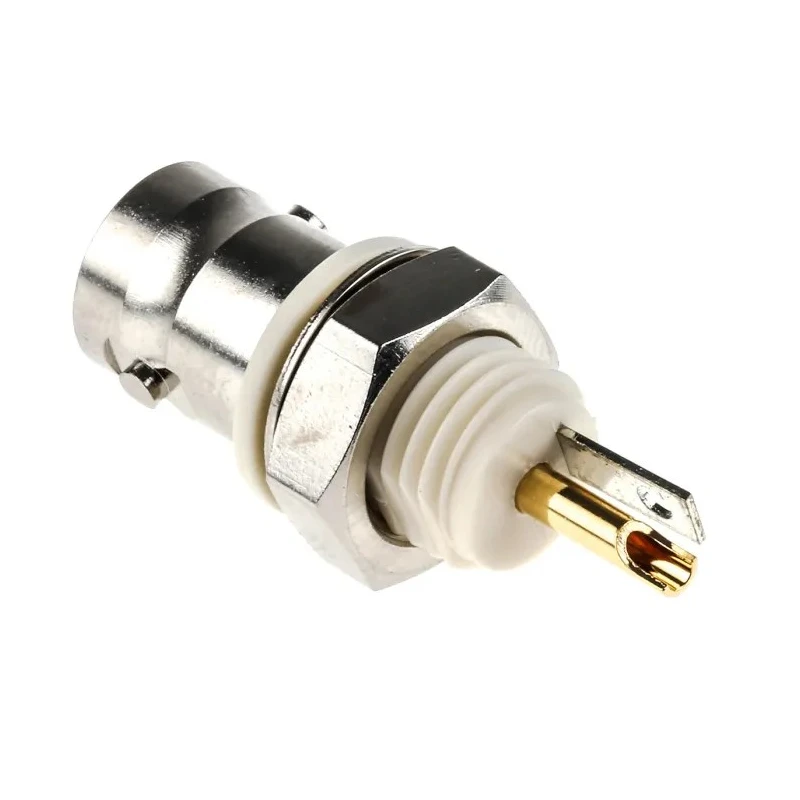

TE Connectivity BNC Series Coaxial Connector Panel Mount Female 50 Ω Straight Body Solder 1-1337452-0
Specifications
| Country of Origin | China |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Panel Mount |
| Operating Frequency | 4GHz |
| Contact Material | Brass |
| Series | BNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- Panel mount type with bulkhead and D-shape panel cut-out for secure installation.
- Operates reliably across temperatures from -55°C to 85°C.
- Nickel-plated brass body with gold-plated brass contacts ensures durability and excellent conductivity.
- Supports operating frequencies up to 4 GHz suitable for RF applications.
- Solder termination type with normal polarity and female contact gender.
- Standard size connector for easy integration with existing systems.
- Made in China with professional-grade manufacturing standards.
Product Description
TE Connectivity 1-1337452-0 BNC Series Coaxial Connector is a high-quality panel mount female coaxial connector designed for RF signal transmission with 50 Ω impedance and straight body solder termination. This standard size bulkhead connector is fitted with a hex nut panel mount retention and a D-shape panel cut-out, ensuring secure installation in various electronic and industrial equipment.
The body is made of nickel-plated brass providing corrosion resistance and mechanical strength, while the contacts are crafted from gold-plated brass for superior electrical connectivity and reliability. It operates efficiently at frequencies up to 4 GHz, making it suitable for demanding RF applications commonly found in telecommunications, broadcast equipment, test and measurement instruments, and communication devices.
Engineered to withstand harsh environmental conditions, this connector supports a wide temperature range from -55°C minimum to 85°C maximum, ensuring stable performance in extreme cold and heat.
The solder termination ensures robust wiring connections, and the normal polarity female contact configuration is compatible with standard male counterparts for seamless installation.
Panel mount type with hex nut and D-shape cut-out for secure attachment. Nickel plated brass body enhances durability and corrosion resistance. Gold plated brass contacts optimize signal transmission quality. Supports frequencies up to 4 GHz for high-speed RF applications.
Temperature range from -55°C to 85°C suits various industrial environments. Solder termination type provides reliable electrical connection. Standard size for compatibility with a wide range of systems.
This product is ideal for industrial, laboratory, telecommunications, and manufacturing applications requiring high-quality RF connectors. Choose this TE Connectivity 1-1337452-0 BNC Series Coaxial Connector for dependable signal integrity and durable panel mounting solutions.
Explore more quality Coaxial Connectors and related products in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The impedance of this BNC series coaxial connector is 50 Ω, making it suitable for RF applications.
It supports operating frequencies up to 4 GHz, suitable for high-speed RF applications.
This connector operates reliably across a temperature range from -55°C to 85°C, accommodating various environmental conditions.
The connector features a solder termination type, ensuring robust wiring connections.
The body is made of nickel-plated brass for corrosion resistance, while the contacts are made of gold-plated brass for superior electrical connectivity.
It is a panel mount type with a hex nut for secure attachment and a D-shape panel cut-out for easy installation.
This model features a female contact gender, compatible with standard male counterparts.
This connector is manufactured in China, adhering to professional-grade manufacturing standards.
It is ideal for industrial, laboratory, telecommunications, and manufacturing applications requiring high-quality RF connectors.
The orientation of this connector is straight, designed for straightforward integration into systems.
This connector is classified as a standard size, ensuring compatibility with a wide range of systems.
The contacts are gold-plated, optimizing signal transmission quality and reliability.
