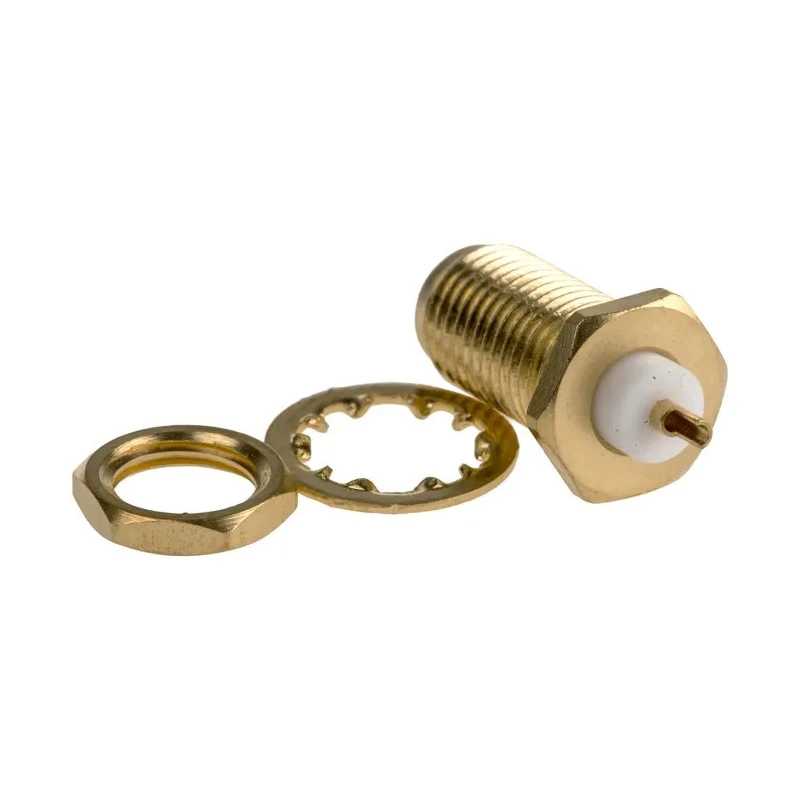

TE Connectivity SMA Series Coaxial Connector Panel Mount Female SMA 50 Ω Straight Body Solder 1-1478966-0
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Panel Mount |
| Operating Frequency | 18GHz |
| Contact Material | Beryllium Copper |
| Series | SMA |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Cable Type | Coaxial |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel over Copper |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Gold |
Key Features
- Professional grade 50 Ohm rear mount bulkhead SMA jack with PTFE dielectric.
- Gold plated stainless steel body and gold plated beryllium copper center contact ensure excellent conductivity.
- Designed for high frequency performance up to 18 GHz with good power ratings.
- Offers compatibility with connectors conforming to MIL-C-39012 and BS 9210 N0006 standards.
- Solder spill termination supports reliable cable connection for coaxial cables.
- Suitable for semi-rigid or flexible cables, enabling versatile microwave cable use.
- Captive contact design guarantees correct positioning when mating with other assemblies.
- Operates reliably under a temperature range from -65°C to 165°C.
Product Description
TE Connectivity 1-1478966-0 SMA Series Coaxial Connector is a high quality 50 Ω panel mount female SMA connector featuring a straight body design and solder termination suitable for coaxial cables.
This connector is professional grade and designed for precise applications in industrial, electronic component manufacturing, and communication systems requiring reliable RF connections up to 18 GHz.
Its gold plated stainless steel body and gold plated beryllium copper center contact offer excellent electrical conductivity and corrosion resistance. The PTFE dielectric provides stable performance at high frequencies and power levels.
The panel mount configuration allows easy integration into equipment housings, ensuring robustness and durability in demanding environments. Operating temperature spans from -65°C to 165°C to support various industrial and laboratory conditions.
This connector is compatible with standards MIL-C-39012 and BS 9210 N0006, ensuring interoperability with many coaxial components. It supports semi-rigid or flexible cables and features a solder spill termination for secure cable attachment.
Professional grade 50 Ohm rear mount bulkhead SMA jack with PTFE dielectric. Gold plated stainless steel body and beryllium copper center contact with gold plating. High frequency performance up to 18 GHz at good power ratings.
Conforms to MIL-C-39012 and BS 9210 N0006 standard connectors. Solder termination type for reliable cable connection. Supports both semi-rigid and flexible coaxial cables. Captive contact design for accurate mating alignment.
Wide operating temperature range: -65°C to 165°C. Panel mount female SMA type with straight orientation.
This Coaxial Connector is essential for applications in RF testing, telecommunications equipment, laboratory instrumentation, aerospace, and defense electronics, where dependable signal integrity is critical.
Discover a wide range of TE Connectivity connectors and accessories at EnvMart for your electronic and industrial component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum operating frequency of 18 GHz, making it suitable for high-frequency applications.
It features a solder termination type, which ensures a reliable connection for coaxial cables.
It operates reliably within a temperature range of -65°C to 165°C, accommodating various industrial and laboratory conditions.
The connector has an impedance rating of 50Ω, which is standard for many RF applications.
It features a gold plated stainless steel body and a gold plated beryllium copper center contact, providing excellent conductivity and corrosion resistance.
Yes, it conforms to MIL-C-39012 and BS 9210 N0006 standards, ensuring interoperability with many coaxial components.
This model supports both semi-rigid and flexible coaxial cables, allowing for versatile applications.
The connector has a straight orientation, which is typical for panel mount applications.
The connector features a female contact gender, suitable for mating with male connectors.
This connector is manufactured in India.
The body of this connector is plated with gold, enhancing its conductivity and resistance to corrosion.
It is designed for panel mount applications, allowing for easy integration into equipment housings.
