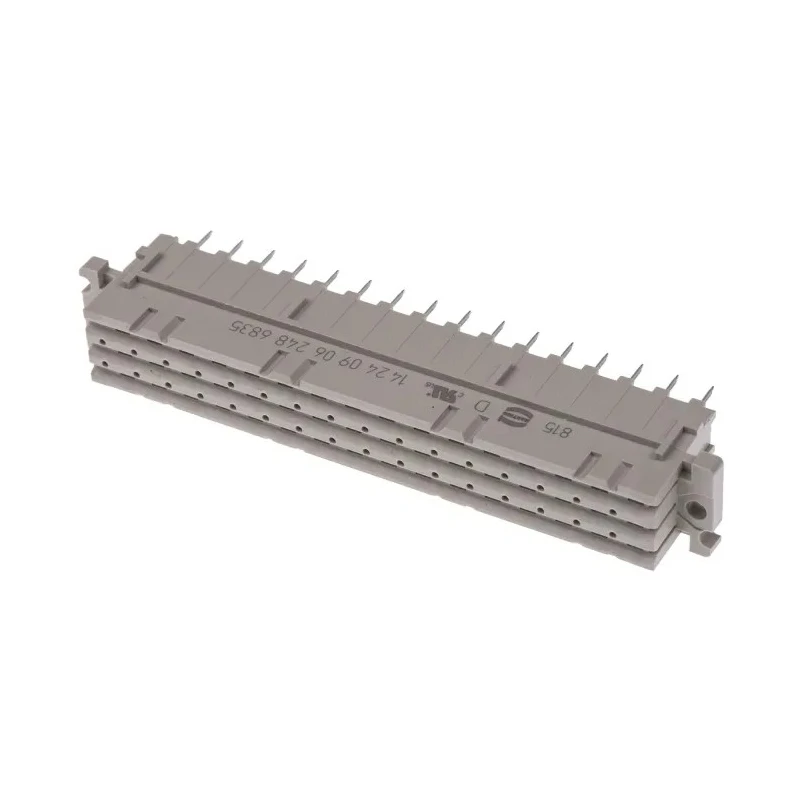

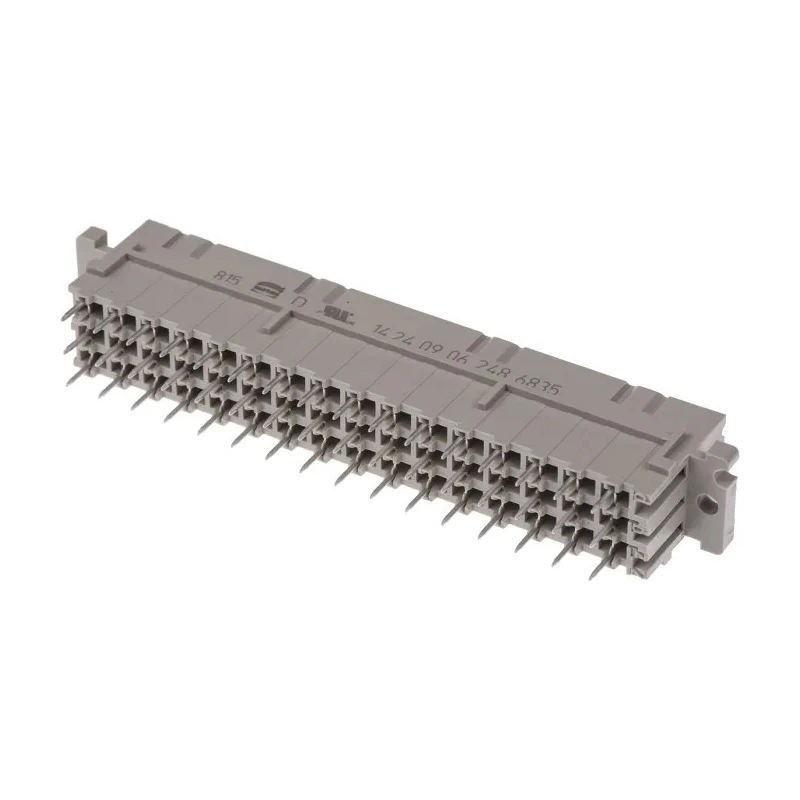

HARTING DIN 41612 48 Way 5.08 mm Pitch Through Hole Solder Type Class C2 3 Row Female Straight Connector 09062486835
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 6A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 5.08mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 48 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 15mΩ |
| Row Loading | D, Z, B |
| PCB SOCKET 48W TYPE FBrand | TE Connectivity |
Key Features
- Features 48 female contacts arranged in 3 rows for efficient connectivity.
- Constructed with copper alloy contacts and gold over nickel plating for durability and conductivity.
- Solder termination and through-hole mounting provide secure and reliable PCB attachment.
- Operates within a temperature range of -55°C to +125°C for broad environmental applicability.
- Supports electrical current up to 6A suitable for demanding power connections.
- Housing is made from polybutylene terephthalate for thermal resistance and strength.
- Compact design ensures integration into control panels, telecommunications, and industrial automation.
- Straight orientation allows straightforward configuration with equipment and PCBs.
Product Description
HARTING 09062486835 DIN 41612 48 Way Connector is a premium female connector designed for industrial electronic applications. This component features 48 contacts arranged in three rows with a 5.08 mm pitch, providing reliable multi-point connectivity. Its straight, through-hole solder termination design facilitates robust PCB mounting, ideal for automation and electrical systems.
The connector contacts are made of copper alloy, combined with gold over nickel plating, enhancing conductivity while protecting against corrosion and wear. The housing is manufactured from polybutylene terephthalate, enabling operation in temperatures from -55°C to 125°C, which supports usage in harsh industrial environments.
This connector supports a maximum current rating of 6 amperes, making it suitable for applications requiring dependable power transmission and signal integrity. Its type C/2 configuration and class C2 solder standard ensure compatibility and performance consistency.
The product is widely used in electrical control panels, telecommunications devices, industrial machinery, and automation equipment for secure data and power transmission. Its compact design and straight female orientation simplify installation and integration.
Features 48 female contacts arranged in 3 rows for efficient connectivity. Constructed with copper alloy contacts and gold over nickel plating for durability and conductivity. Solder termination and through-hole mounting provide secure and reliable PCB attachment.
Operates within a temperature range of -55°C to +125°C for broad environmental applicability. Supports electrical current up to 6A suitable for demanding power connections. Housing is made from polybutylene terephthalate for thermal resistance and strength.
Compact design ensures integration into control panels, telecommunications, and industrial automation. Straight orientation allows straightforward configuration with equipment and PCBs.
This HARTING DIN 41612 Connector is an essential component for demanding industrial, telecommunications, electrical, and automation applications requiring reliable multi-pin connections and high current capacity. Browse EnvMart for compatible connectors and accessories that ensure optimum system performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a maximum current rating of 6A, making it suitable for demanding power connections.
It operates within a temperature range of -55°C to +125°C, allowing for use in various environmental conditions.
The connector features 48 female contacts arranged in three rows, providing efficient multi-point connectivity.
The contacts are made of copper alloy with gold over nickel plating, while the housing is constructed from polybutylene terephthalate.
It utilizes a solder termination type, which provides a secure and reliable connection for PCB attachment.
The contacts are arranged with a pitch of 5.08 mm, facilitating compact and efficient wiring.
This model has a straight orientation, allowing for straightforward configuration with equipment and PCBs.
It is widely used in electrical control panels, telecommunications devices, industrial machinery, and automation equipment.
This connector is classified as a type C/2 under the DIN 41612 series, ensuring compatibility and performance consistency.
The maximum contact resistance is 15mΩ, which contributes to its effective performance in electrical connections.
The country of origin for this connector is Romania.
