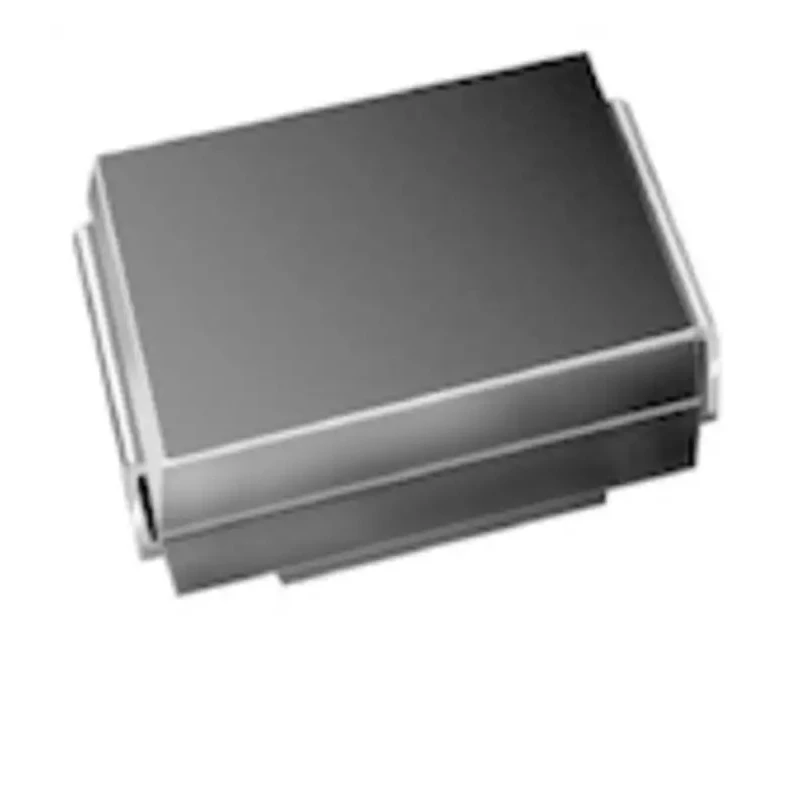

Vishay Bi-Directional TVS Diode 600 W, 2-Pin DO-214 SMBJ6.5CD-M3/H

Vishay SMBJ6.5CD-M3/H Bi-Directional TVS Diode is engineered for precision transient voltage suppression delivering 600 W peak pulse power dissipation in a compact DO-214 surface mount package. Rated at 6.5 V maximum reverse standoff voltage and 7.33 V minimum breakdown voltage, this diode ensures tight voltage regulation with ±3.5% tolerance, making it ideal for protecting sensitive electronic circuits against voltage spikes and surges.

Featuring a 2-pin configuration and low leakage current of 300 μA, the diode maintains efficiency while offering robust electrostatic discharge (ESD) protection. Its 11 V clamping voltage guarantees effective suppression of transient spikes. The device is rated for operation between -55°C and 150°C, accommodating wide environmental conditions found in industrial, automotive, and telecommunications applications.

The SMBJ6.5CD-M3/H belongs to Vishay’s TRANSZORB TVS series, known for fast response times and high durability, including a maximum peak pulse current of 54.5 A with a 10/1000 μs waveform at a 0.01% duty cycle. This makes it suitable for use in power supplies, communication lines, and control circuits where stability and protection are critical.

Its compliance with the automotive AEC-Q101 standard confirms its reliability in automotive electronics. The compact dimensions - length 4.57 mm, width 3.94 mm, and height 2.24 mm - facilitate space-saving PCB designs and support automated assembly processes.

Bi-directional transient voltage suppression for circuit safety. 600 W peak pulse power handling capability at 10/1000 μs waveform. ±3.5% breakdown voltage tolerance for stable operation. Low leakage current enhances energy efficiency.

Surface mount DO-214 package supports automated manufacturing. Wide temperature range (-55°C to 150°C) for harsh environments. Clamping voltage of 11 V for strong surge protection. Automotive standard AEC-Q101 certified for automotive use.

Fast response and low surge resistance for reliable performance. Compact size optimizes PCB space utilization.

This TS Diodetypifies Vishay’s commitment to quality and protection in the semiconductor industry. Ideal for industrial, automotive, telecommunications, and consumer electronics applications requiring robust surge protection and reliable operation in demanding conditions.
