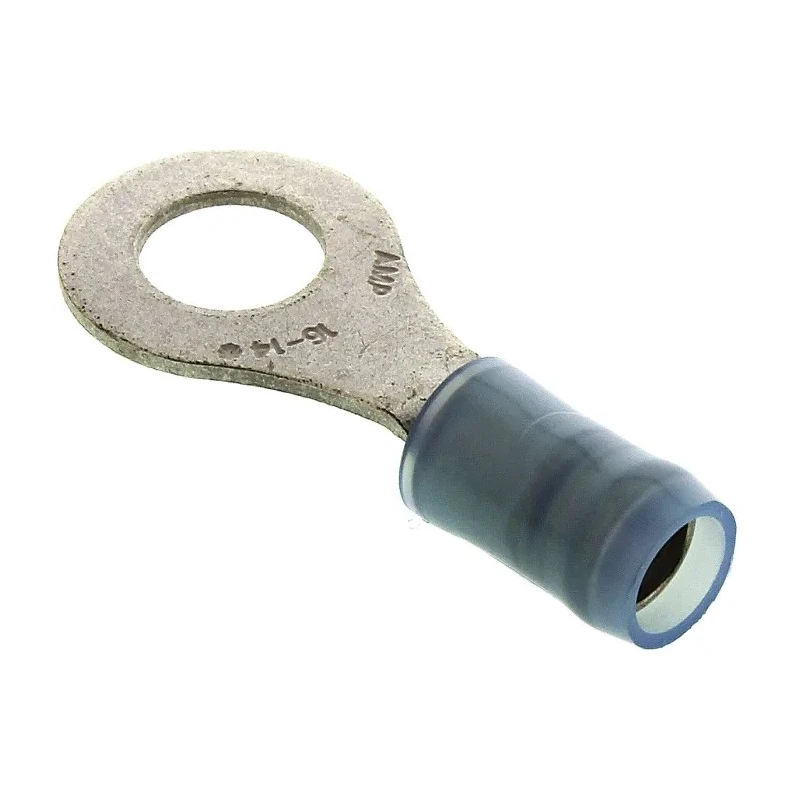

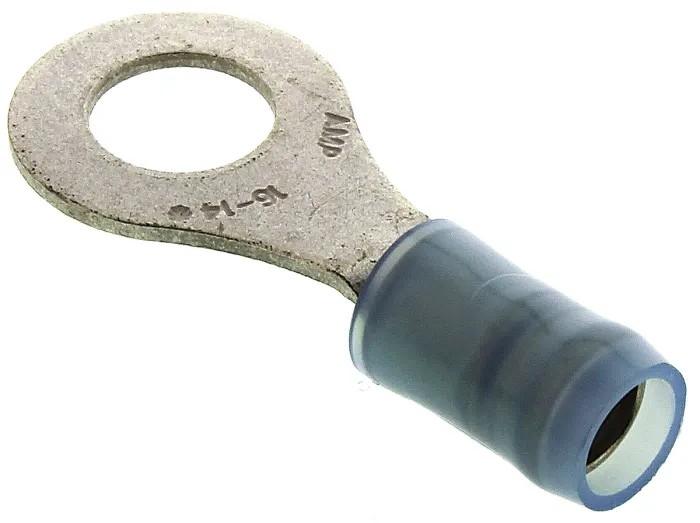

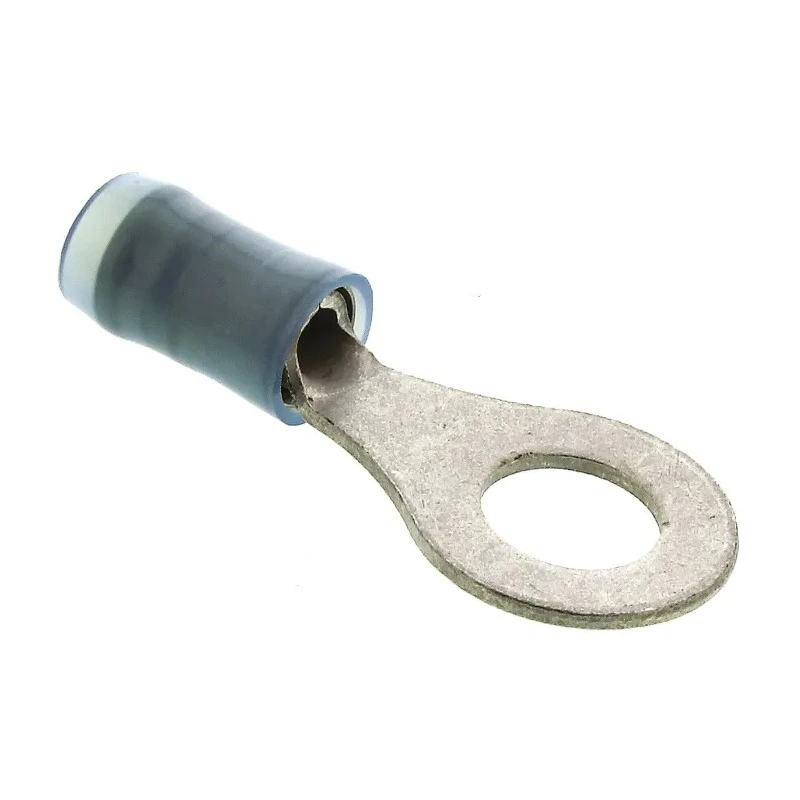

TE Connectivity PIDG Insulated Ring Terminal M6 Stud Size 16 AWG to 14 AWG Wire Size Blue 130114
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| Model | 130114 |
| Insulation | Insulated |
| Overall Length | 27.51mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 11.91mm |
| Inner Ring Diameter | 6.35mm |
| Stud Size | M6 |
Key Features
- Constructed with high conductivity copper for excellent electrical performance.
- Insulated with durable nylon to provide wire insulation and identification.
- Features serrated wire barrels for maximum contact and tensile strength after crimping.
- Color-coded blue sleeve ensures easy wire size and tooling identification.
- Designed for quick wire insertion with funnelled entry to prevent wire strand fraying.
- Suitable for a wide range of industrial and electrical applications including instrumentation and power supplies.
Product Description
TE Connectivity 130114 PIDG Insulated Ring Terminal is a high-quality M6 stud size ring terminal designed for secure and reliable wire connections with wire sizes ranging from 16 AWG to 14 AWG. The blue insulated nylon sleeve aids in wire size identification and offers durable insulation support.
This ring terminal features a precision-formed copper body with tin plating to enhance conductivity and corrosion resistance. The barrel has serrations that ensure maximum contact and tensile strength after crimping, preventing wire fraying and improving the reliability of electrical connections.
The funnelled wire entry facilitates fast wire insertion during high-speed production processes. The copper sleeve surrounding the barrel provides enhanced insulation support, making these terminals ideal for demanding applications.
These terminals comply with high industrial standards and are suitable for various uses including instrumentation, control panels, lighting, power supplies, transportation, lifting equipment, motors, aerospace, and appliance wiring.
Constructed with high conductivity copper for excellent electrical performance. Insulated with durable nylon providing good electrical isolation and wire protection. Serrations in the wire barrel ensure strong crimp connections.
Color-coded blue sleeve simplifies identification and tooling processes. Funnelled entry design prevents wire strand damage and facilitates fast wire insertion. Compatible with industrial, aerospace, automotive, and electrical manufacturing applications.
This TE Connectivity PIDG Insulated Ring Terminal is an essential component for ensuring reliable electrical connectivity in professional and industrial environments. Explore more electrical connectors and terminals in EnvMart’s comprehensive catalog for your wiring and electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This ring terminal is designed for wire sizes ranging from 16 AWG to 14 AWG.
The stud size for this terminal is M6.
It is constructed with high conductivity copper and features a tin plating for enhanced conductivity and corrosion resistance.
The maximum operating temperature for this terminal is 105°C.
The funnelled entry design facilitates fast wire insertion and helps prevent wire strand fraying during installation.
The overall length of this terminal is 27.51 mm.
The insulation on this terminal is blue, which also aids in wire size identification.
The insulation is made of durable nylon, providing good electrical isolation and wire protection.
The inner ring diameter is 6.35 mm, and the outer ring diameter is 11.91 mm.
This terminal is suitable for a wide range of applications including instrumentation, control panels, lighting, and power supplies.
The terminal features serrated wire barrels that ensure maximum contact and tensile strength after crimping, preventing wire fraying.
This terminal is manufactured in India.
