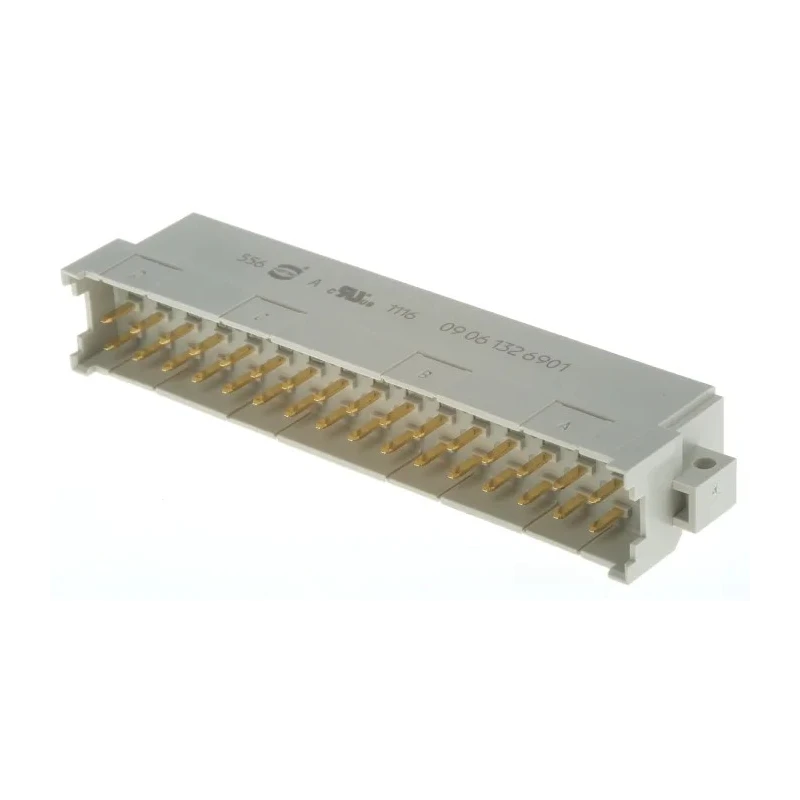

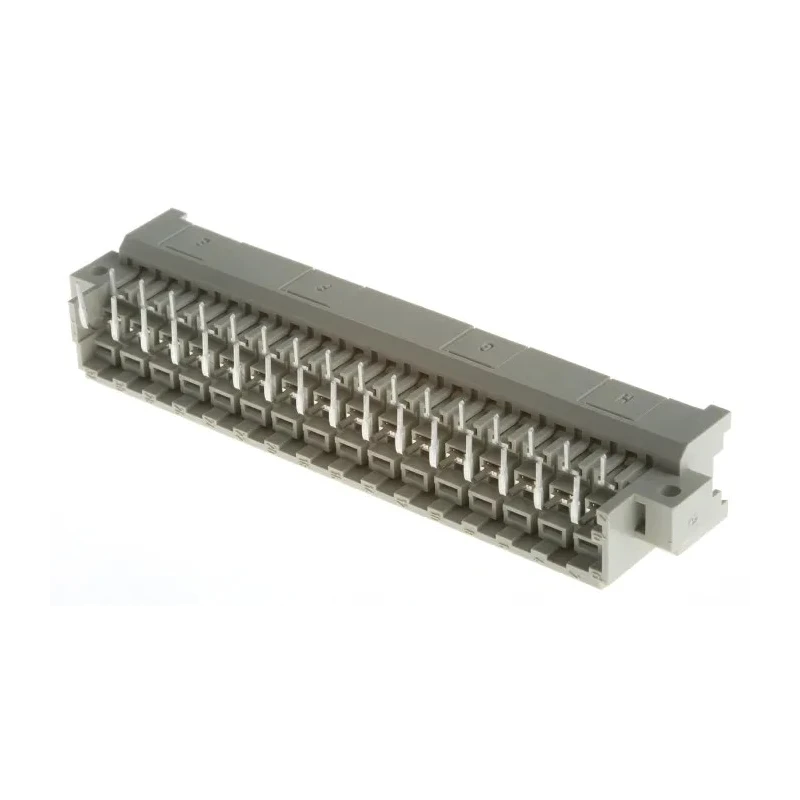

HARTING DIN 41612 Connector 32 Way 5.08 mm Pitch Type Through Hole, Type C/2, Solder Class C2, 2 Row Male Right 09061326901

HARTING 09061326901 DIN 41612 Connector is a high-quality 32 Way, 5.08 mm pitch male connector designed for through-hole mounting with a right-angle orientation, suitable for robust electronic connectivity applications.

This Type C/2 connector, Class C2 solder termination, ensures durable and reliable soldered connections essential in industrial and transportation electronics.

Its copper alloy contacts plated with gold over nickel provide excellent conductivity and corrosion resistance, supporting currents up to 6A, with a maximum contact resistance of 15 milliohms. The connector operates efficiently across a wide temperature range from -55°C to 125°C.

The body housing, made from polybutylene terephthalate, offers mechanical strength and thermal stability. The 32 contacts arranged in two rows facilitate high-density board-to-board or cable-to-board interconnections, optimized for power and control applications.

This connector is widely used in applications such as railway transportation systems, power supplies units (PSUs), and control cards, where reliable electrical performance and mechanical robustness are required.

The connector houses 32 contacts arranged in 2 rows, facilitating high-density connections. It has a 5.08 mm pitch compatible with standard PCB layouts and components. Gold over nickel plating on copper alloy contacts ensures corrosion resistance and low contact resistance.

Suitable for through-hole mounted designs with right-angle orientation for space optimization. Supports operating temperatures from -55°C up to +125°C, ideal for harsh environments. Class C2 solder termination ensures strong solder joints for secure electrical connections.

Maximum current rating per contact is 6 amperes, suitable for medium power electronics. The housing material polybutylene terephthalate provides thermal and mechanical durability. Manufactured in Germany, adhering to high-quality industrial standards.

HARTING is a recognized brand in the electronics industry, known for its robust connectors used extensively across industrial, railway, and power supply applications. Explore more reliable connectors and electronic components in the Electronics Components category at EnvMart for your industrial and manufacturing needs.
