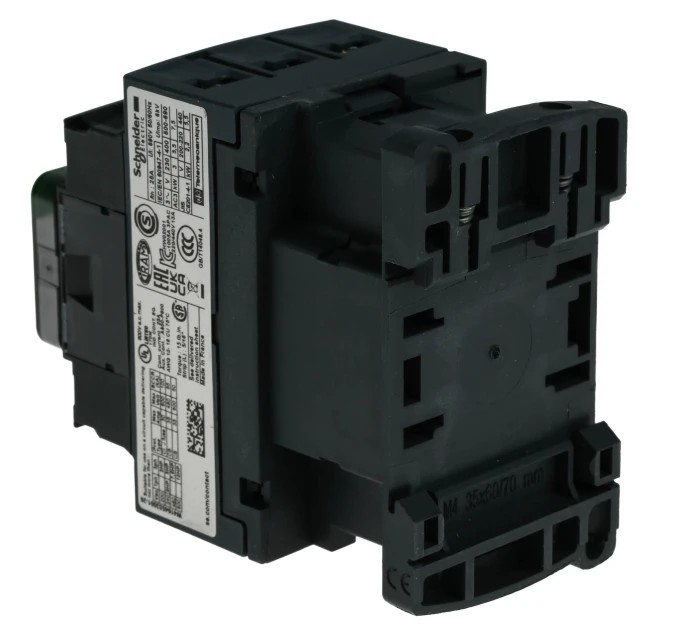

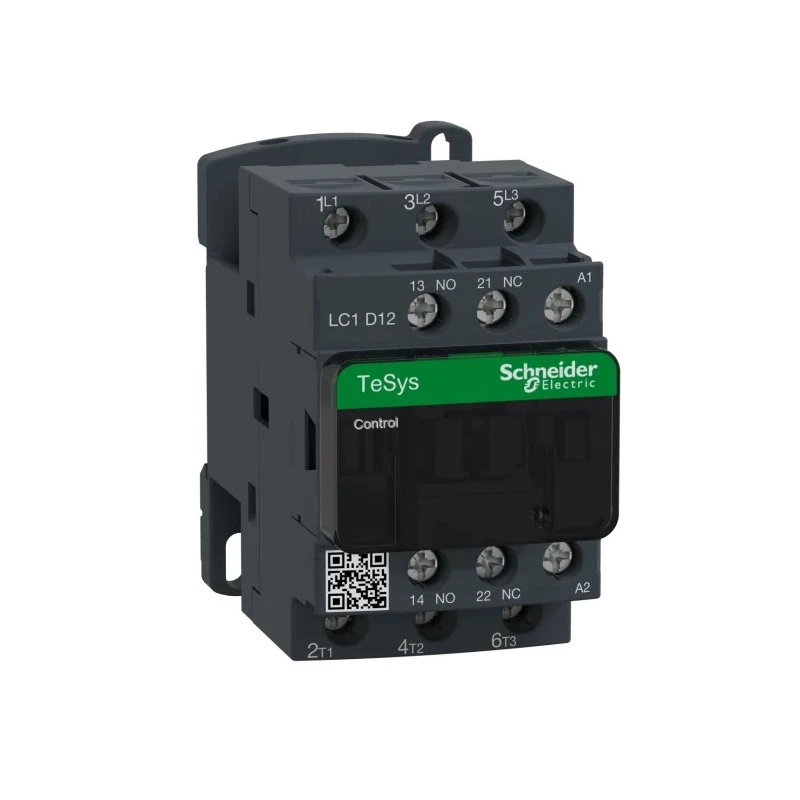

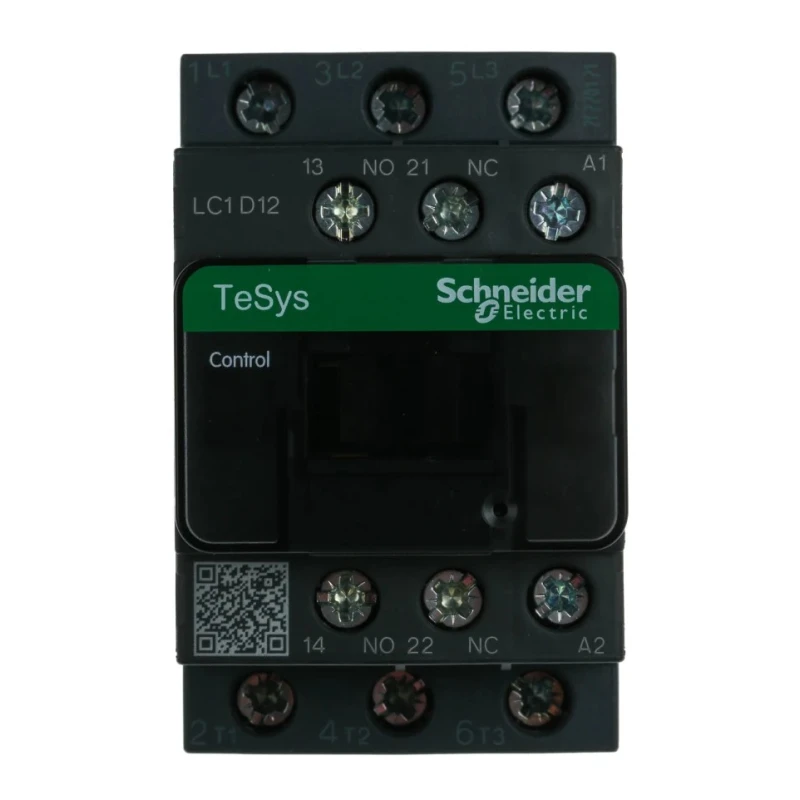

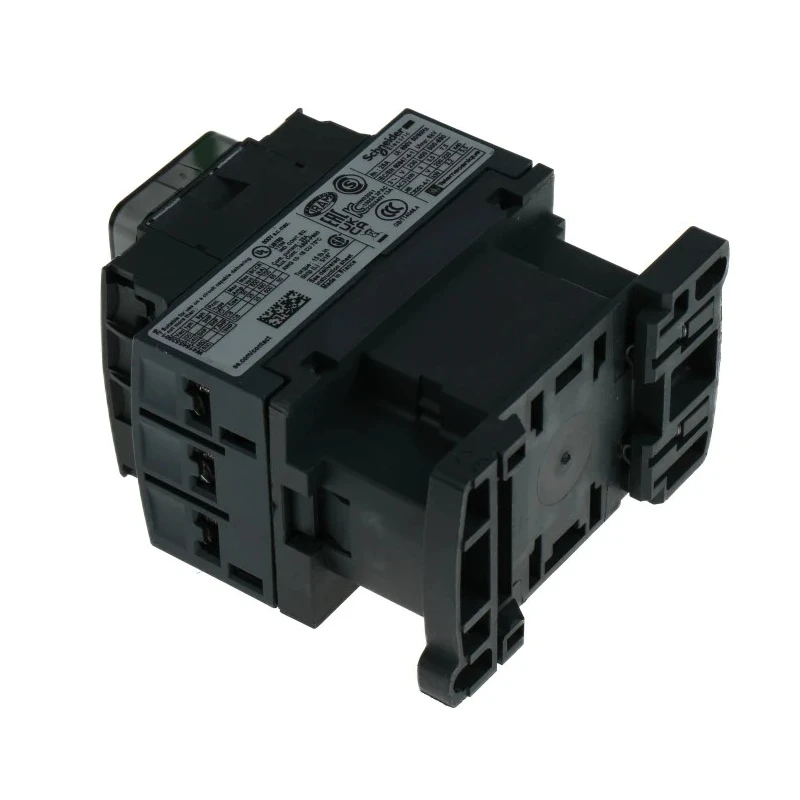

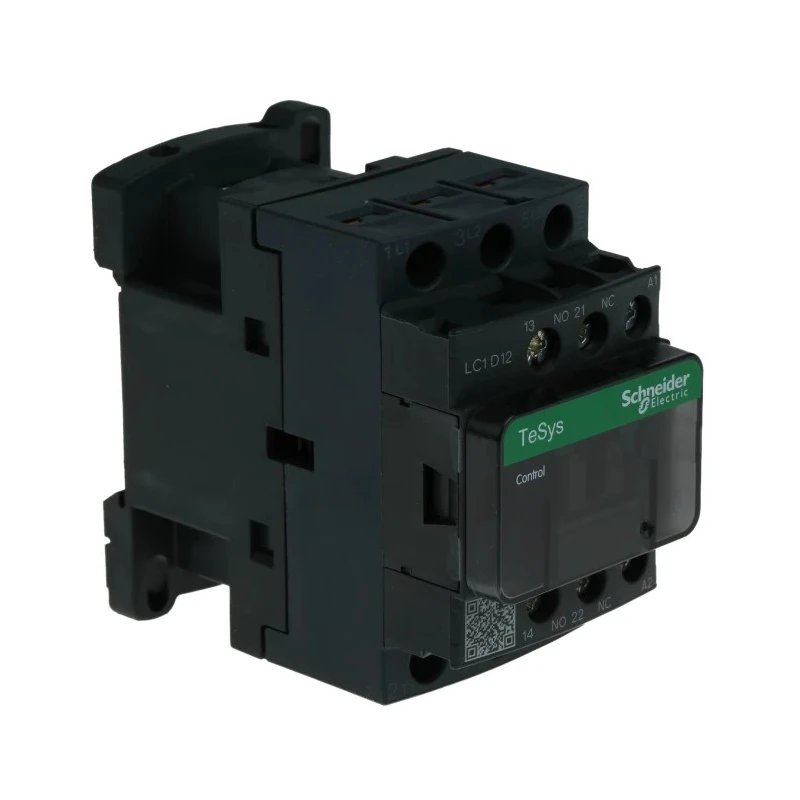

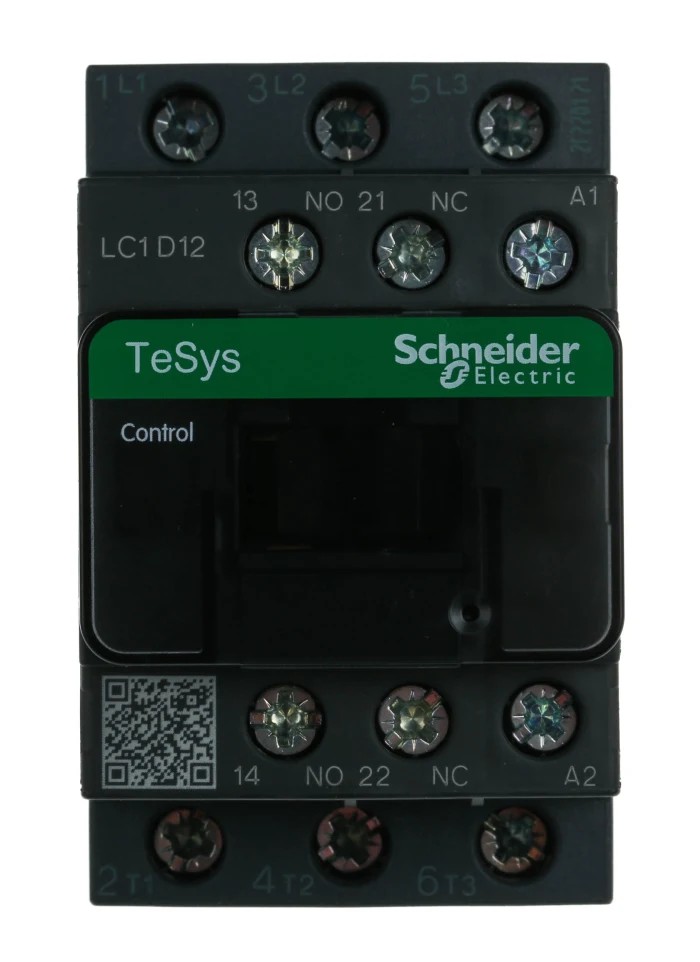

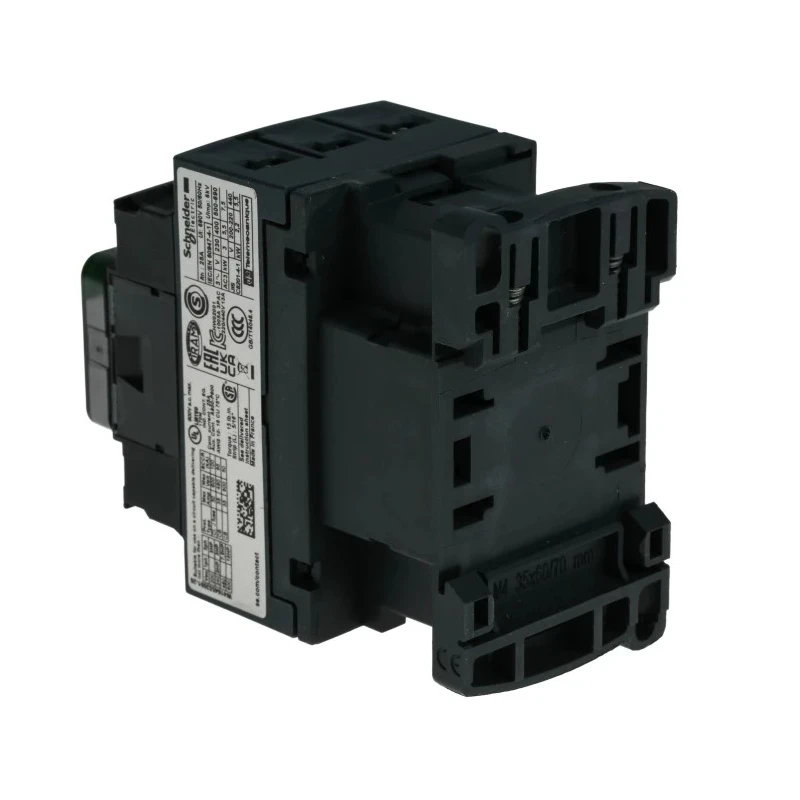

Schneider Electric TeSyS D Contactor 110V AC Coil, 3-Pole, 12 A, 5.5 kW, 3 NO, 690V AC LC1D12F7

Schneider Electric LC1D12F7 TeSyS D Series Contactor is a robust and reliable device designed for motor control and resistive load applications. Equipped with a 110V AC coil and a 3-pole configuration, it supports a contact current of 12 A and contact voltage rating of 690V AC, delivering a power rating of 5.5 kW. Its compact design with dimensions 77mm (L) x 45mm (W) x 84mm (D) allows installation in confined panel spaces and on DIN Rails with ease.

This contactor features high durability with a mechanical life designed for approximately 20 years and includes 2 auxiliary contacts (3 NO configuration) to enhance switching capabilities. Screw terminal type connections provide a firm and vibration-resistant installation with IP20 finger-safe protection. The unit operates efficiently in a wide temperature range from -5°C to 60°C, making it suitable for harsh industrial environments.

Standards compliance includes EAC, IEC, CSA, RoHS, UL, and CCC, ensuring it meets global safety and performance requirements. The contactor is ideal for applications like automated factory processes, medical systems, electrical installations, lighting systems, and access control setups. It is engineered with Better World principles including design for disassembly to support sustainability.

The device supports AC-1 category applications such as resistive loads with power factor ≥ 0.95, and AC-3 category for squirrel cage motors where breaking occurs while the motor is running, making it versatile for various motor control scenarios. Its screw connections and IP20 touch-safe rating add to operational safety and durability.

Compact DIN Rail mount contactor for motor control with 110V AC coil. 3 poles with 12 A current rating and 5.5 kW power capacity at 690V AC. 2 auxiliary contacts with 3 NO configuration for added switching functions. IP20 finger-safe screw terminals with North American and international markings.

Wide operating temperature range from -5°C to 60°C for heavy-duty industrial use. Compliant with EAC, IEC, CSA, RoHS, UL, CCC standards. Designed for sustainability with long mechanical and electrical lifespan. Explore Schneider Electric Contactors and industrial electrical components in the Electronics & Electricals category on EnvMart for high-quality control solutions.
