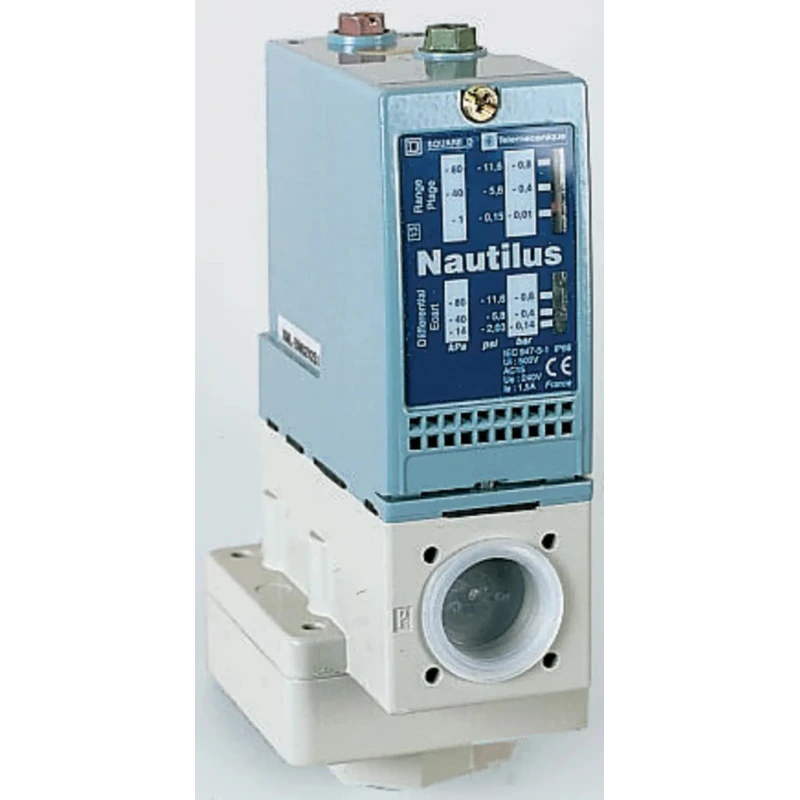

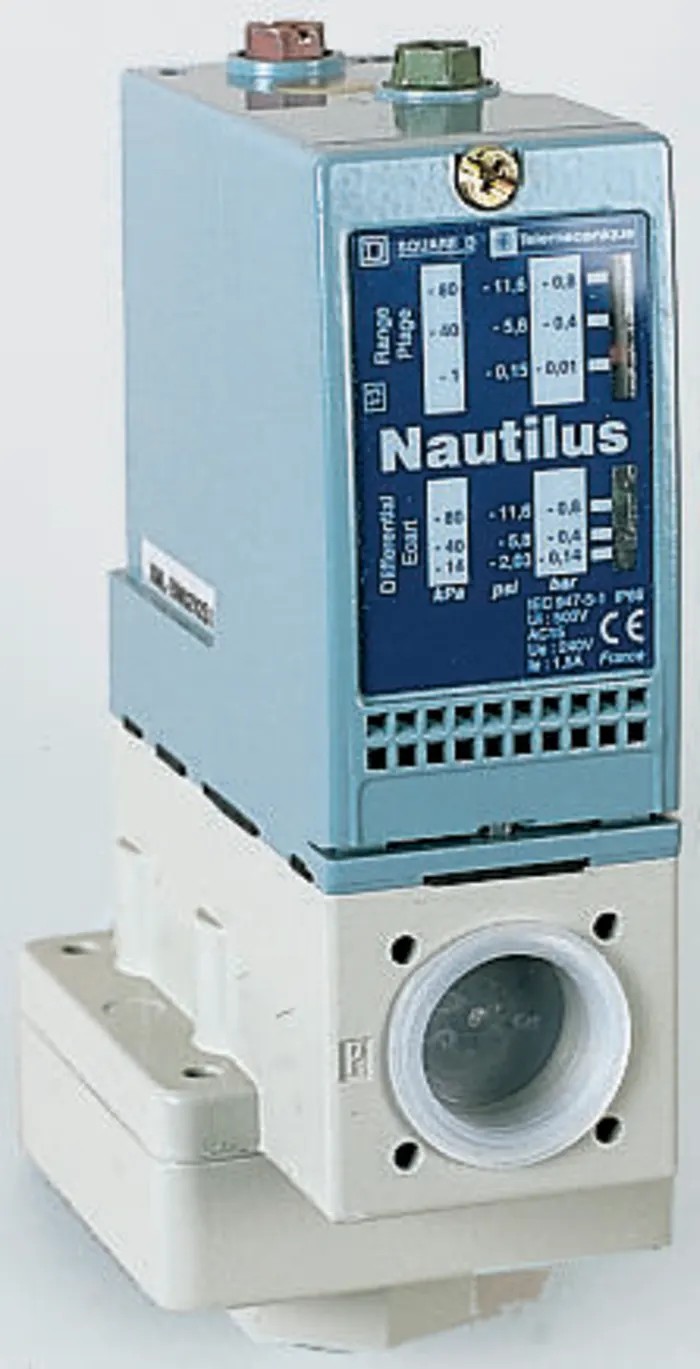

Telemecanique Sensors Pressure Sensor , Differential Reading, 1 CO Output, -0.87 bar to -0.01 bar, 120-250V dc XMLBM02V2S12
Specifications
| Country of Origin | Morocco |
|---|---|
| Accuracy | 2 % |
| Brand | Telemecanique Sensors |
| Temperature range | - 25 to +70 °C |
| Model | XMLBM02V2S12 |
| IP Rating | IP66 |
| Housing Material | Zinc Alloy |
| Output type | 1 CO |
| Series | XMLB |
| Maximum Operating Temperature | 70°C |
| Enclosure Rating | IP65 with plug-in connector, IP66 with terminal connections |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp Terminal |
| Maximum Pressure Measurement | -0.01bar |
| Minimum Pressure Measurement | -0.87bar |
| Maximum Supply Voltage | 250V dc |
| Minimum Supply Voltage | 120V |
| Pressure Reading Type | Differential |
| Media Measured | Air, Fresh Water, Hydraulic Fluid, Sea Water |
| Operating rate | up to 120 operations / min. for diaphragm and 60 / min. for piston |
| Media connection | 1/4"" NPT |
| Conduit connection | 1/2"" NPT |
Key Features
- Accurate to 2% for reliable process control.
- Compatible with air, fresh water, hydraulic fluid, and sea water.
- Operates within temperature range of -25°C to 70°C.
- Equipped with screw clamp terminals for secure connections.
- IP66 rated zinc alloy housing ensures durability and protection against dust and water.
- Adjustable differential and external pressure setting window for flexible use.
- Supports voltage supply from 120V to 250V dc for versatile installations.
- Mounting connections include 1/4" NPT media and 1/2" NPT conduit.
Product Description
Telemecanique Sensors XMLBM02V2S12 pressure sensor is a high-quality industrial differential Pressure Sensor designed for controlling pressures in various media including air, fresh water, hydraulic fluid, and sea water. It offers a measurement range from -0.87 bar minimum to -0.01 bar maximum with an accuracy of 2%. The 1 CO output type facilitates effective signal transmission for control circuits.
The sensor is housed in a robust zinc alloy enclosure rated IP66, providing excellent resistance to dust and water ingress, making it suitable for harsh industrial environments. It supports a supply voltage range from 120V to 250V dc, allowing flexible installation options. The terminal connections utilize screw clamps for reliable wiring.
Featuring adjustable differential settings and an external pressure setting window, this sensor can be precisely calibrated to specific application requirements. The operating temperature range spans from -25°C to 70°C, ensuring performance stability across diverse conditions. Mechanical connections include 1/4" NPT for media input and 1/2" NPT for conduit entry, accommodating standard piping setups.
Typical applications include hydraulic and pneumatic systems, water treatment, HVAC systems, and other industrial automation scenarios requiring accurate pressure detection and control. The sensor is engineered to deliver high operational reliability, with an enclosure rating of IP65 when used with plug-in connectors and IP66 with terminal connections.
Accurate differential pressure measurement within -0.87 to -0.01 bar range. 1 CO output suitable for control circuit integration. Zinc alloy housing with IP66 protection for durability in challenging environments. Wide operating temperature from -25°C to 70°C for versatile use.
Adjustable differential and external pressure window improve calibration flexibility. Screw clamp terminal connections provide secure wiring. Supports 120V to 250V dc supply voltage. 1/4" NPT media and 1/2" NPT conduit connections standard fittings.
Telemecanique Sensors XMLBM02V2S12 exemplifies reliable pressure sensing technology essential for industrial, automation, HVAC, and water management applications. Explore EnvMart's extensive range of sensors for quality components tailored to your engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Telemecanique Sensors XMLBM02V2S12 has a measurement range from -0.87 bar to -0.01 bar.
It is compatible with air, fresh water, hydraulic fluid, and sea water.
This pressure sensor offers an accuracy of 2%.
The operating temperature range is from -25°C to 70°C.
It features a 1 CO output type suitable for control circuit integration.
The media connection is 1/4" NPT and the conduit connection is 1/2" NPT.
The sensor has an IP66 rating with terminal connections, providing protection against dust and water ingress.
It supports a supply voltage range from 120V to 250V dc.
The sensor utilizes screw clamp terminals for secure wiring connections.
The housing is made of zinc alloy, which contributes to its durability.
It operates at up to 120 operations per minute for diaphragm and 60 operations per minute for piston.
The country of origin for this sensor is Morocco.
