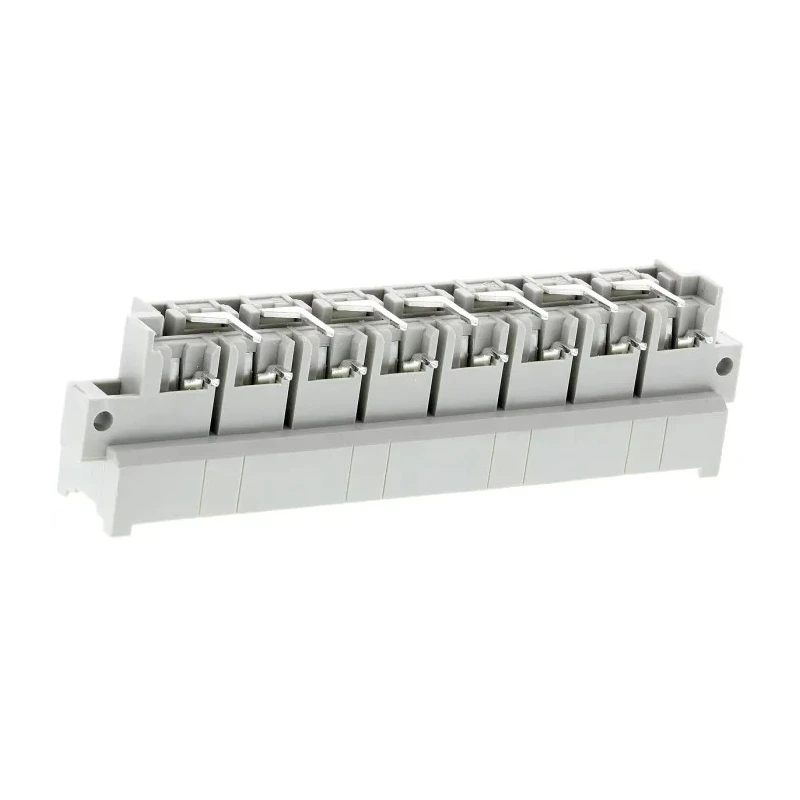

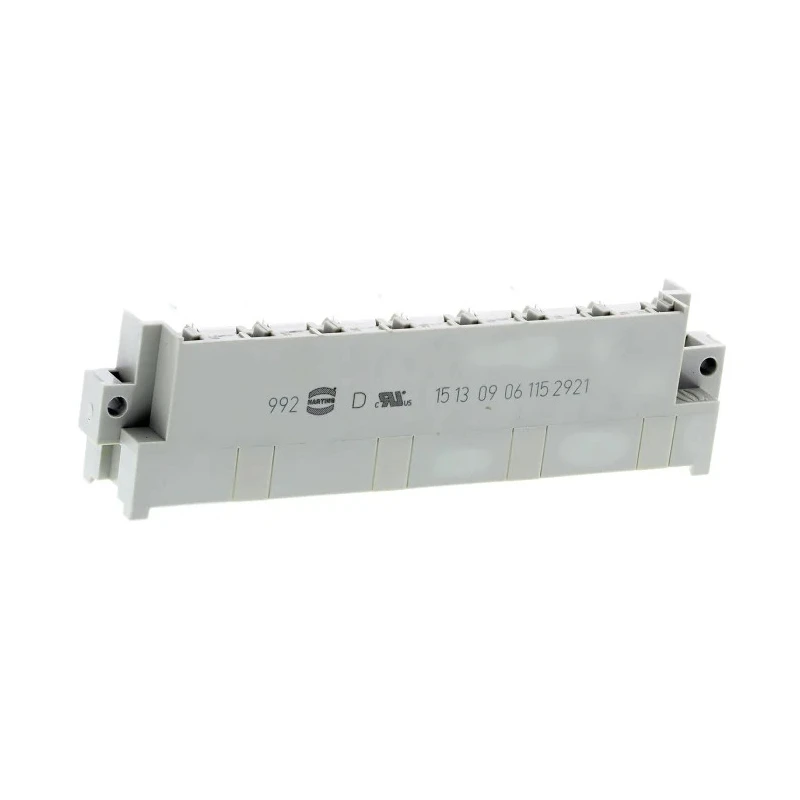

HARTING DIN 41612 15 Way 5.08 mm Pitch Type Through Hole Solder 2 Row Male Right Angle Connector 09061152921

HARTING 09061152921 DIN 41612 Connector is a 15 Way, 2 Row Male connector with 5.08 mm pitch designed for high current applications up to 15A. It features right angle orientation and is terminated using solder pins suitable for through hole mounting on PCBs. The connector housing is manufactured from polybutylene terephthalate with glass fibre filling for enhanced mechanical strength and thermal stability, operating reliably between -55°C and 125°C.

This DIN 41612 connector series is widely used in industrial electronics, control cards, power supplies, and railway transportation where durability and high current capacity are critical. The copper alloy contacts are plated with silver over nickel to provide excellent conductivity and low contact resistance of up to 8 milli-ohms. The connector follows the DIN 41612 standards ensuring compatibility and reliable performance in complex electronic assemblies.

Specialized variants such as the railway approved stock number 757-7932 conform to railway standards including smoke index F1 and flammability class I2, highlighting suitability for transport industry requirements.

The product is ideal for demanding industrial, electronic manufacturing, automotive, and railway applications that require secure and robust electrical connections. Features 15 contacts arranged in 2 rows for up to 15A current capacity.

Right angle orientation with male connector gender suitable for PCB mounting. 5.08 mm pitch ensures standard spacing for DIN 41612 interfaces. Terminated with solder type pins compatible with through hole mounting. Copper alloy contacts plated with silver over nickel to reduce contact resistance to 8 mΩ.

Housing made of polybutylene terephthalate providing thermal stability from -55°C to 125°C. Connector designed for industrial and control card applications including railway approved variants. Robust construction with glass fibre filled thermoplastic resin housing enhances durability.
