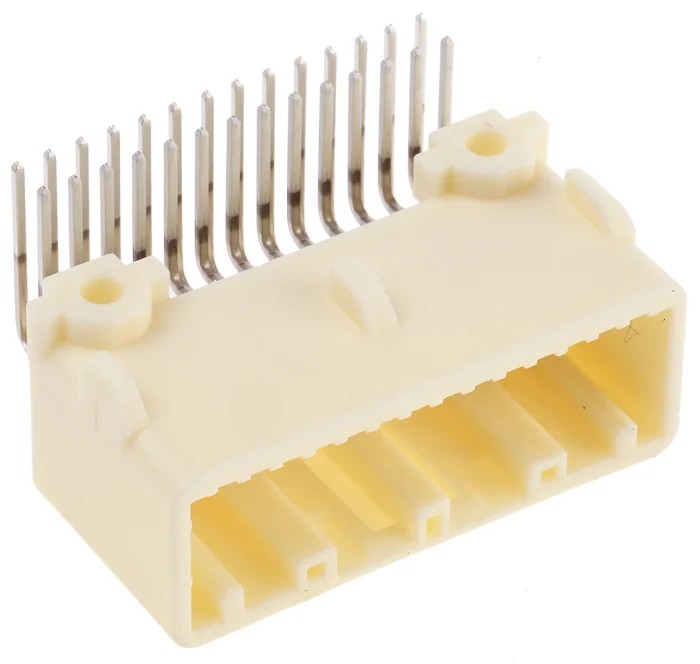

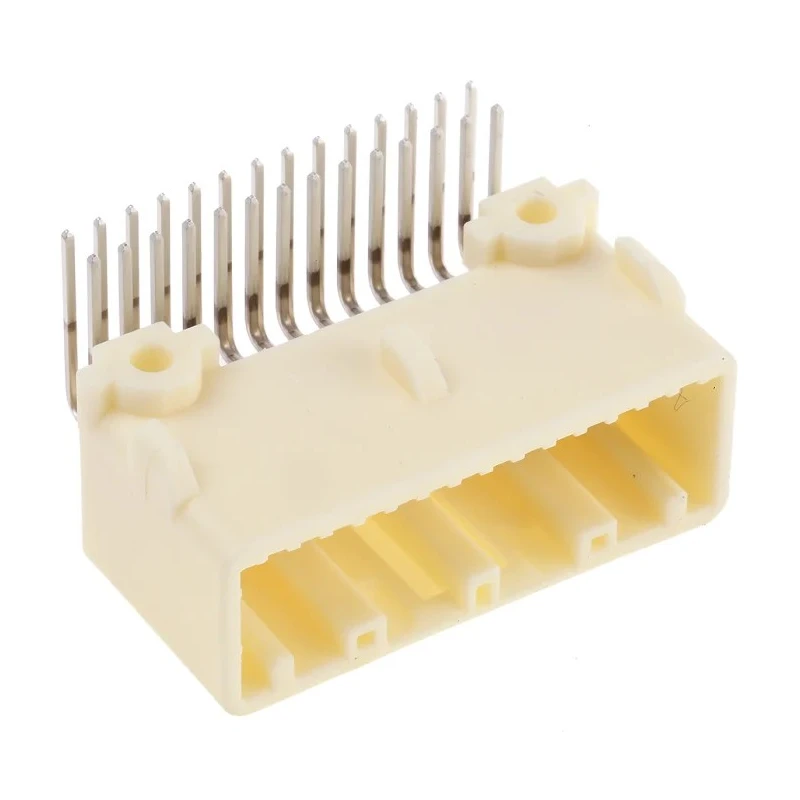

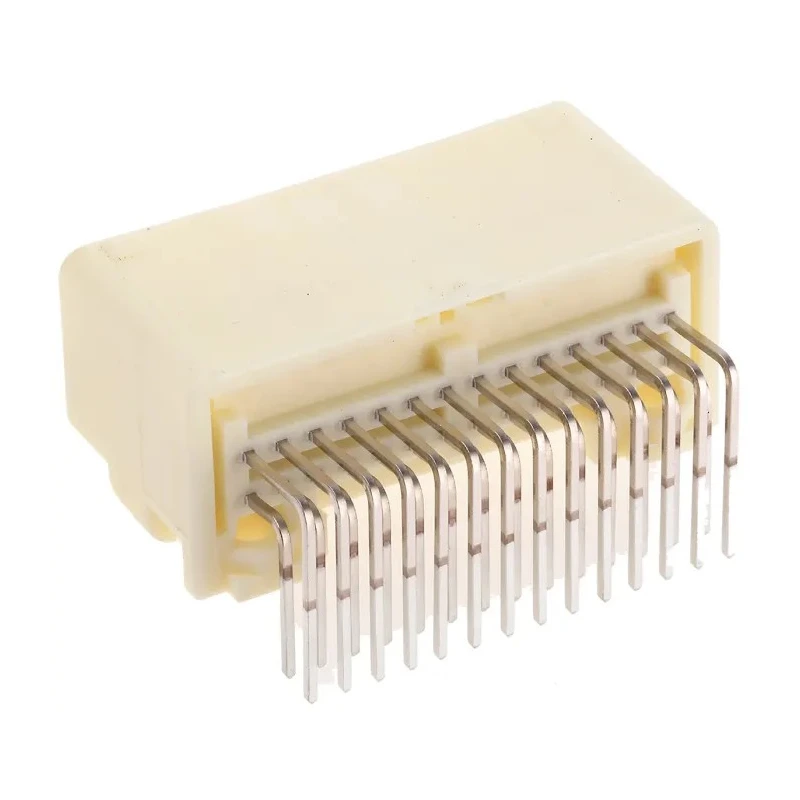

TE Connectivity TH 025 Series Automotive Connector Female Natural Through Hole 28 Way Solder Termination 1565373-4
Specifications
| Brand | TE Connectivity |
|---|---|
| Colour | Natural |
| Height | 15.5mm |
| Depth | 24.47mm |
| Width | 36.2mm |
| Gender | Female |
| Mount Type | Through Hole |
| Housing Material | Polystyrene |
| Contact Material | Brass |
| Series | TH 025 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Automotive Wire Connector |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Standards/Approvals | EU RoHS, EU ELV |
| Contact Plating | Tin |
| Number of Contacts | 28 |
Key Features
- Compact automotive connector with 28 contacts for reliable wiring.
- Female gender with solder termination designed for through hole PCB mounting.
- Polystyrene housing material offers durability and natural color coding.
- Operating temperature ranges from -30°C to 105°C suitable for automotive environments.
- High density 2.2 mm pitch allows space-saving PCB connections.
- Contact material brass with tin plating for good corrosion resistance.
- Includes 2 rows with board fixation screws ensuring secure PCB mount.
- Complies with EU RoHS and ELV environmental standards.
Product Description
TE Connectivity 1565373-4 automotive connector from the TH 025 series is a high-density, compact female connector designed for automotive electronic control units and wiring harnesses. It features a 28-way solder termination and through hole mounting style with a natural polystyrene housing for ease of identification and durability.
The connector’s design includes 2 rows of contacts spaced at 2.2 mm pitch to maximize connection density in constrained automotive electronic spaces. Contacts are made from brass and plated with tin to ensure reliable electrical conductivity and resistance to corrosion and fretting, which is critical in harsh automotive environments.
With operating temperatures ranging from -30°C up to 105°C, this connector accommodates various under-hood and in-vehicle applications including safety systems, multimedia interfaces, driver information modules, and chassis controllers. The board fixation screws enable secure fastening onto printed circuit boards, ensuring stable mechanical and electrical connections.
The TH 025 series is widely used in advanced automotive control systems where compact and reliable PCB connectors are essential. This connector meets important EU RoHS and ELV environmental compliance standards, making it suitable for modern automotive manufacturing requirements.
Applications include automotive safety and security systems, airbag ECU connections, dashboard displays, mirrors, and convenience systems. The natural color-coded housing aids in quick identification and assembly efficiency in manufacturing and service environments.
Compact 28-pin female automotive connector for high-density PCB connections. Solder termination with through hole mount for secure PCB installation. Durable polystyrene housing in natural color for identification. Brass contacts with tin plating ensure corrosion resistance.
Operating temperature range from -30°C to 105°C. Includes board fixation screws for stable PCB mounting. Compliant with EU RoHS and ELV standards. Explore the TE Connectivity product range in Automotive Connectors on EnvMart for advanced electronic automotive applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range for this model is from -30°C to 105°C, making it suitable for various automotive applications.
This connector features 28 contacts, allowing for high-density connections in automotive electronic systems.
It uses a solder termination method, which is designed for secure connections on printed circuit boards (PCBs).
The housing is made from polystyrene, providing durability and aiding in natural color coding for easy identification.
The contacts are spaced at a pitch of 2.2 mm, allowing for compact and efficient PCB connections.
Yes, it complies with EU RoHS and EU ELV environmental standards, making it suitable for modern automotive manufacturing requirements.
The dimensions of this model are 15.5 mm in height, 24.47 mm in depth, and 36.2 mm in width.
It is designed for through hole mounting, which allows for secure installation on PCBs.
The contacts are made from brass and are plated with tin to ensure good corrosion resistance and reliable electrical conductivity.
This connector features 2 rows of contacts, which helps maximize connection density in limited spaces.
It is suitable for various applications including automotive safety systems, multimedia interfaces, and driver information modules.
It includes board fixation screws that provide stable mechanical and electrical connections when mounted on printed circuit boards.
