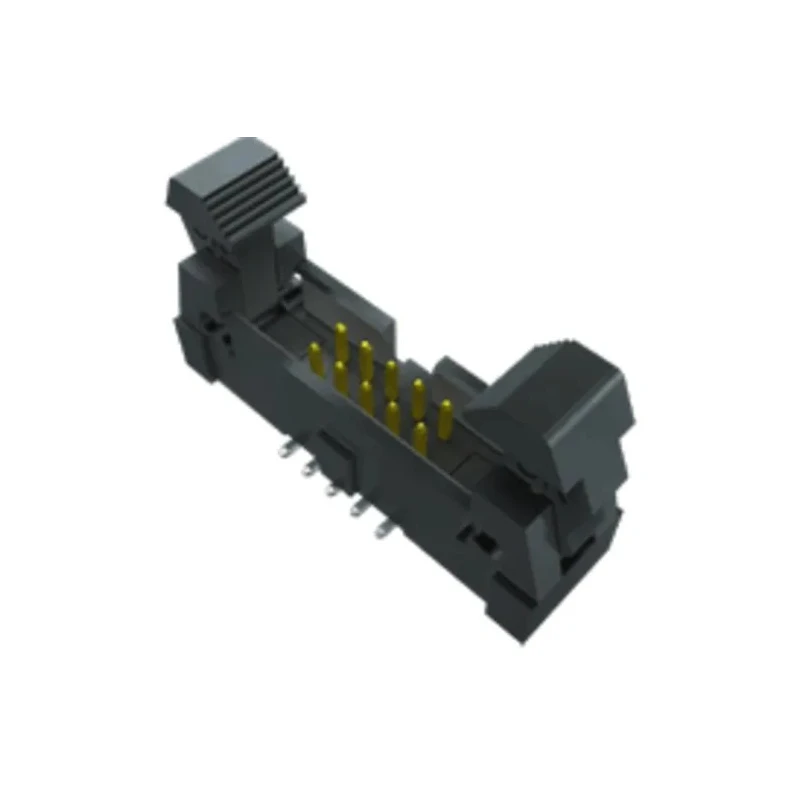

Samtec EHF Series Straight Surface PCB Header, 10 Contacts, 1.27 mm Pitch, 2 Row, Shrouded EHF-105-01-F-D

Free Delivery in India | Lowest Global Shipping Charges

Samtec EHF Series Straight Surface PCB Header, 10 Contacts, 1.27 mm Pitch, 2 Row, Shrouded EHF-105-01-F-D

Name: Samtec EHF Series Straight Surface PCB Header, 10 Contacts, 1.27 mm Pitch, 2 Row, Shrouded EHF-105-01-F-D
Brand: Samtec
SKU: 147979
Price: 4.04 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	United States
Brand	Samtec
Orientation	Straight
Model	EHF-105-01-F-D
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	EHF
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

The header features 10 male contacts arranged in 2 rows for robust wire-to-board connections.
Constructed with liquid crystal polymer housing for high durability and stability.
Contacts made of phosphor bronze with gold plating ensure reliable signal transmission and corrosion resistance.
Designed for surface mount applications with a straight orientation and polarization notch to prevent misconnection.
Operating temperature range from -55°C to 125°C suitable for diverse industrial environments.
Termination type is solder for strong mechanical and electrical connection.
Compact 1.27 mm pitch with 0.050 inch row pitch fits standard PCB designs.
Shrouded design includes IDC ejector functionality for secure mating and cable locking options.

Product Description

Samtec presents the EHF Series Straight Surface PCB Header model EHF-105-01-F-D, a high-quality 10-contact, 2-row wire-to-board connector ensuring reliable and secure connections in electronic assemblies. Featuring a 1.27 mm pitch with a shrouded design, this PCB header is crafted with a liquid crystal polymer housing providing excellent mechanical strength and temperature resistance ranging from -55°C to 125°C.

The male contacts made from phosphor bronze and plated with gold offer superior contact reliability and resistance to corrosion, essential for industrial, manufacturing, and electronic applications where signal integrity is critical. The surface mount termination and straight orientation facilitate easy integration onto printed circuit boards with polarization notches to prevent incorrect mating.

This connector supports various electronic component uses including power distribution, signal transmission, and industrial-grade PCB assemblies where durability and precision are paramount. The shrouded IDC ejector header design provides secure wire retention and optional locking caps for added stability under vibration and handling.

The header provides 10 male contacts arranged in 2 rows with 1.27 mm pitch. Constructed with liquid crystal polymer housing for enhanced thermal stability. Phosphor bronze contact material with gold plating ensures high conductivity and corrosion resistance.

Suitable for a temperature range from -55°C to 125°C. Surface mount, straight orientation pin header with solder termination. Shrouded design with polarization notch enhances connection reliability. Compliant with industry standards and made in the United States.

Ideal for electronics manufacturing, power and connector assemblies in various industrial sectors. Includes options for cable locking caps improving connector longevity and mating security.

This Samtec PCB Header model EHF-105-01-F-D is a reliable solution for robust PCB connection requirements, widely used in industrial electronics, power supply systems, and manufacturing environments. Explore compatible connectors and related components in the Electronics Components category at EnvMart for seamless integration.
