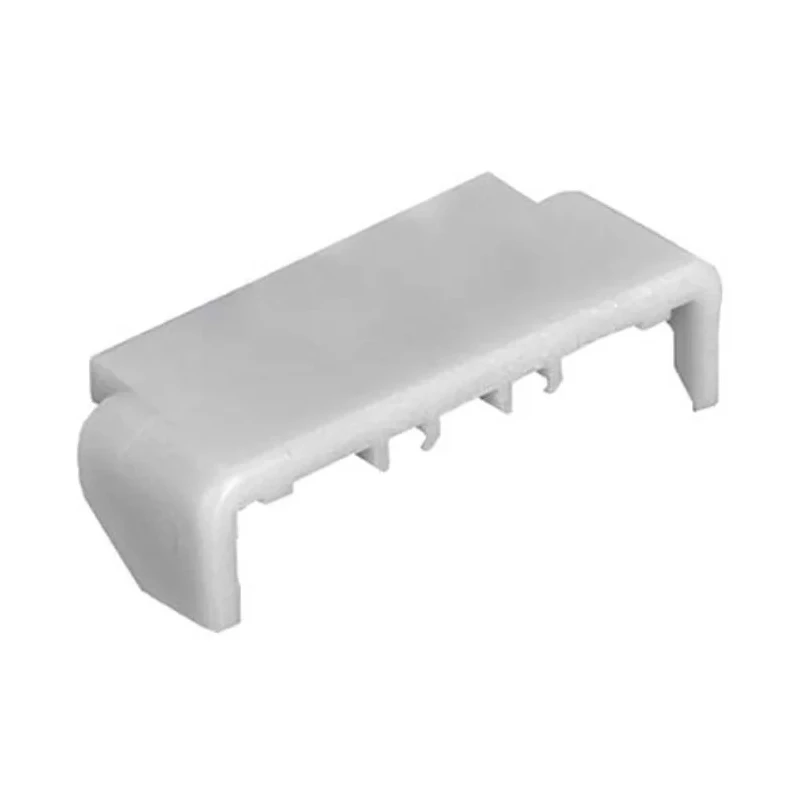

Molex Terminal Position Assurance for Micro-Fit TPA Receptacle Housing 172952, 10A Current, Gold or Tin Plating 172953-0801
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Current | 10A |
| Contact Material | Phosphor Bronze Copper Alloy |
| Series | 172953 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Micro-Fit TPA Receptacle Housing Low Halogen 172952 |
| Contact Plating | Gold or Tin |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Compatible with Micro-Fit TPA Receptacle Housing Low Halogen 172952.
- Supports electric current up to 10 amperes.
- Suitable for wire sizes from 30 AWG minimum to 20 AWG maximum.
- Constructed with phosphor bronze copper alloy for durable contact parts.
- Contact surfaces plated in gold or tin for enhanced conductivity and corrosion resistance.
- Maximum contact resistance is 10 milliohms ensuring low electrical loss.
- Operates reliably in temperatures ranging from -40°C to 105°C.
- Termination type is crimp for secure and efficient assembly.
Product Description
Molex 172953-0801 Terminal Position Assurance (TPA) is specifically designed to work with Micro-Fit TPA Receptacle Housing 172952, providing an integrated secondary lock system to prevent terminal backouts resulting from improper assembly. This crimp termination component accommodates wire sizes ranging from 30 AWG minimum crimp to 20 AWG maximum, supporting currents up to 10A.
Manufactured from phosphor bronze copper alloy, the contact components are plated with either gold or tin to ensure excellent electrical conductivity and corrosion resistance. The TPA units possess a low maximum contact resistance of 10 milliohms, maintaining efficient signal and power transmission.
Operational temperature range of -40°C to 105°C enables reliable performance in various industrial, electronic, and electrical applications. Designed with a crimp termination type, these retainers streamline assembly processes while providing secure mechanical and electrical connections.
The Molex Micro-Fit 3.0 Series Terminal Position Assurance devices enhance connector reliability by ensuring terminal position security especially in complex electronic component assemblies. They are widely used in industrial equipment, electronic manufacturing, and other commercial applications requiring dependable electrical connectors.
Compatible with Micro-Fit TPA Receptacle Housing Low Halogen 172952. Supports current capacity of 10A for various applications. Wire sizes supported range from 30 AWG to 20 AWG ensuring versatility. Constructed from durable phosphor bronze copper alloy for reliability.
Gold or tin plating enhances connectivity and resistance to corrosion. Maximum contact resistance of 10 milliohms reduces electrical losses. Operates within a temperature range from -40°C to 105°C for environmental robustness.
Crimp termination ensures secure and efficient electrical connections. Manufactured in China under industry standards without specific approvals listed.
Explore EnvMart's comprehensive selection of electronic connectors, Crimp Contacts, and terminal position assurance components suitable for industrial, laboratory, consumer electronics, and electrical infrastructure projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current capacity of 10 amperes.
It accommodates wire sizes ranging from 30 AWG minimum to 20 AWG maximum.
The contact parts are constructed from phosphor bronze copper alloy, and the contact surfaces are plated in either gold or tin.
The maximum contact resistance is 10 milliohms, which helps in reducing electrical losses.
It operates reliably within a temperature range of -40°C to 105°C.
This model features a crimp termination type for secure and efficient assembly.
It is specifically designed for compatibility with the Micro-Fit TPA Receptacle Housing Low Halogen 172952.
This terminal position assurance component is manufactured in China.
It belongs to the Molex 172953 series.
It is widely used in industrial equipment, electronic manufacturing, and various commercial applications requiring reliable electrical connectors.
It provides an integrated secondary lock system to prevent terminal backouts resulting from improper assembly.
The gold or tin plating enhances electrical conductivity and provides corrosion resistance.
