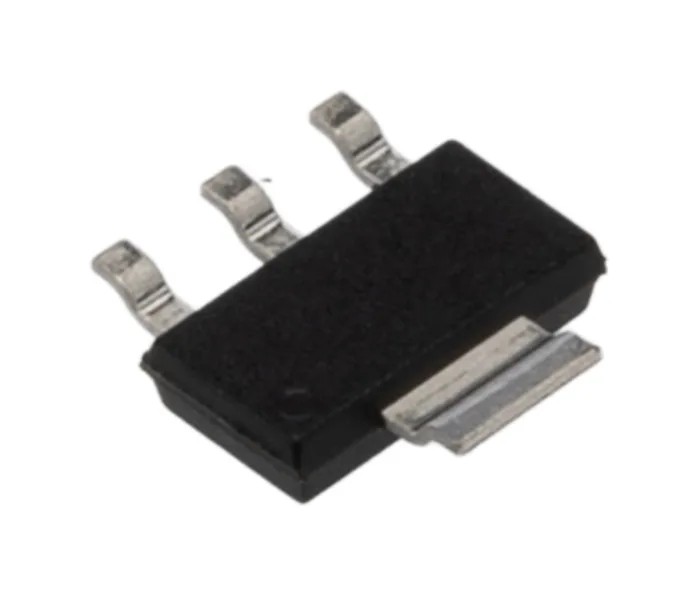

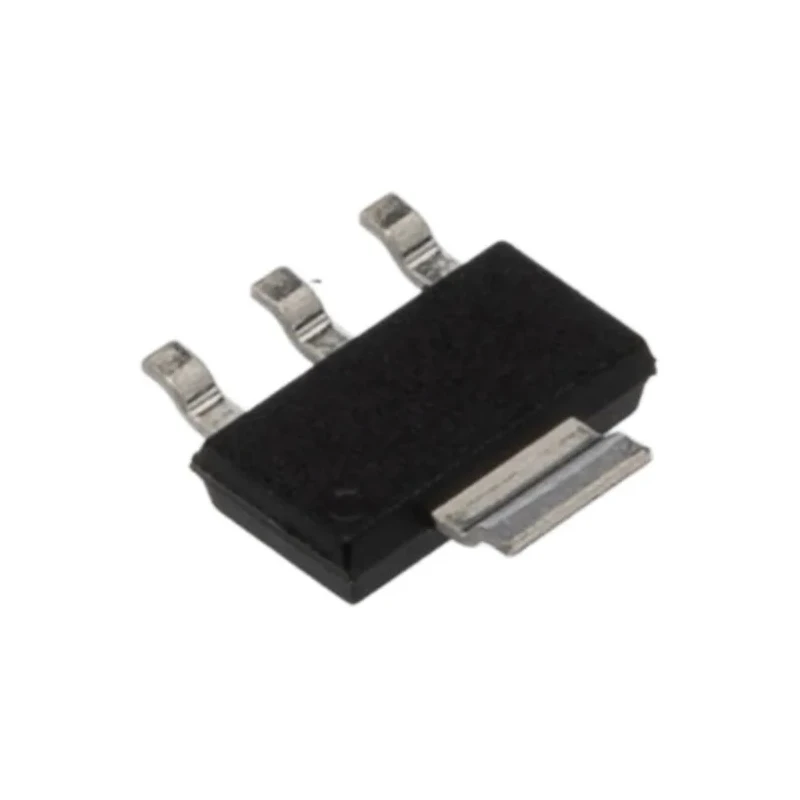

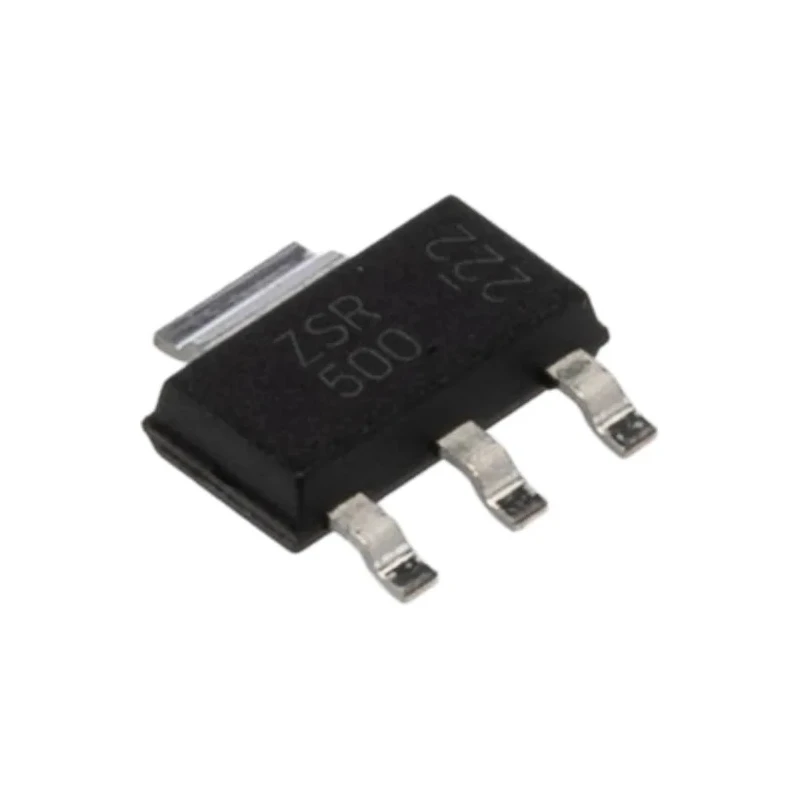

DiodesZetex Linear Voltage Regulator 2 W 20V SOT-223 4-Pin ZSR500GTA
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators DiodesZetex, Voltage Regulator 2 W 20V SOT-223 4-Pin RS Stock No |
| Brand | DiodesZetex |
| Height | 1.65mm |
| Length | 6.55mm |
| Model | ZSR500GTA |
| Width | 3.55mm |
| Mount Type | Surface |
| Series | ZSR |
| Power Rating | 2W |
| Output Current | 200 mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-223 |
| Polarity | Positive |
| Maximum Input Voltage | 20V |
| Quiescent Current | 350μA |
| Minimum Input Voltage | 7V |
| Pin Count | 4 |
| Fixed Output Voltages | 3 V, 3.3 V, 5 V, 8 V and 10 V |
Key Features
- The device offers power rating of 2 W with surface mount SOT-223 package.
- It supports input voltage range from 7 V to 20 V for flexibility.
- The regulator delivers output currents up to 200 mA with low quiescent current of 350 μA.
- Includes thermal shutdown and internal current limiting for robust operation.
- Available fixed output voltages are 3 V, 3.3 V, 5 V, 8 V, and 10 V.
- Compact package dimensions of 6.55 mm length, 3.55 mm width, and 1.65 mm height.
- Operates reliably up to 125°C maximum temperature.
- Designed for industrial, electronic production, power supply post-regulation, and consumer applications.
Product Description
DiodesZetex ZSR500GTA Linear Voltage Regulator is a positive voltage fixed output regulator designed to provide stable voltage in various electronic applications. It supports a power rating of 2 watts and comes in a compact SOT-223 surface mount package with 4 pins. The device operates within an input voltage range of 7 V to 20 V, ensuring versatility for multiple voltage regulation needs.
This integrated regulator delivers output currents up to 200 mA, with a very low quiescent current of 350 μA, enhancing efficiency especially in power-sensitive circuits. Safety features such as thermal shutdown and internal current limiting protect the IC from damage due to overheating or overload conditions.
The fixed output voltage options include 3 V, 3.3 V, 5 V, 8 V, and 10 V, allowing selection based on the specific circuit requirement. The physical package dimensions of length 6.55 mm, width 3.55 mm, and height 1.65 mm make it suitable for compact PCB layouts.
Reliable operation is guaranteed up to a maximum operating temperature of 125°C, suitable for industrial and consumer electronics environments. Typical applications include power supplies, onboard post regulation, and general electronic production uses where fixed voltage regulation is critical.
Power rating of 2 W for moderate load handling. SOT-223 surface mount package enables compact board design. Operating input voltage range 7 V to 20 V for flexibility. Output current capability up to 200 mA with low quiescent current.
Built-in thermal shutdown and current limiting enhance reliability. Multiple fixed output voltages: 3 V, 3.3 V, 5 V, 8 V, and 10 V. Compact dimensions for space-efficient applications. Suitable for industrial, consumer, and electronic production use cases.
This voltage regulator from DiodesZetex is an ideal choice for designers requiring compact, efficient, and reliable linear voltage regulation. Browse the Power Management ICs category on EnvMart for more Voltage Regulator solutions tailored to your industrial and electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within an input voltage range of 7 V to 20 V, providing flexibility for various applications.
This model can deliver output currents up to 200 mA, making it suitable for moderate load handling.
The fixed output voltage options include 3 V, 3.3 V, 5 V, 8 V, and 10 V, allowing for selection based on specific circuit requirements.
It has a low quiescent current of 350 μA, enhancing efficiency in power-sensitive circuits.
The maximum operating temperature is 125°C, ensuring reliable operation in various environments.
It comes in a compact SOT-223 surface mount package with 4 pins, suitable for space-efficient PCB layouts.
This voltage regulator includes thermal shutdown and internal current limiting to protect against overheating and overload conditions.
The positive polarity indicates that the output voltage is positive relative to the ground, which is essential for compatibility with many electronic circuits.
The package dimensions are 6.55 mm in length, 3.55 mm in width, and 1.65 mm in height.
It is designed for industrial, electronic production, power supply post-regulation, and consumer applications where fixed voltage regulation is critical.
The country of origin for this voltage regulator is India.
