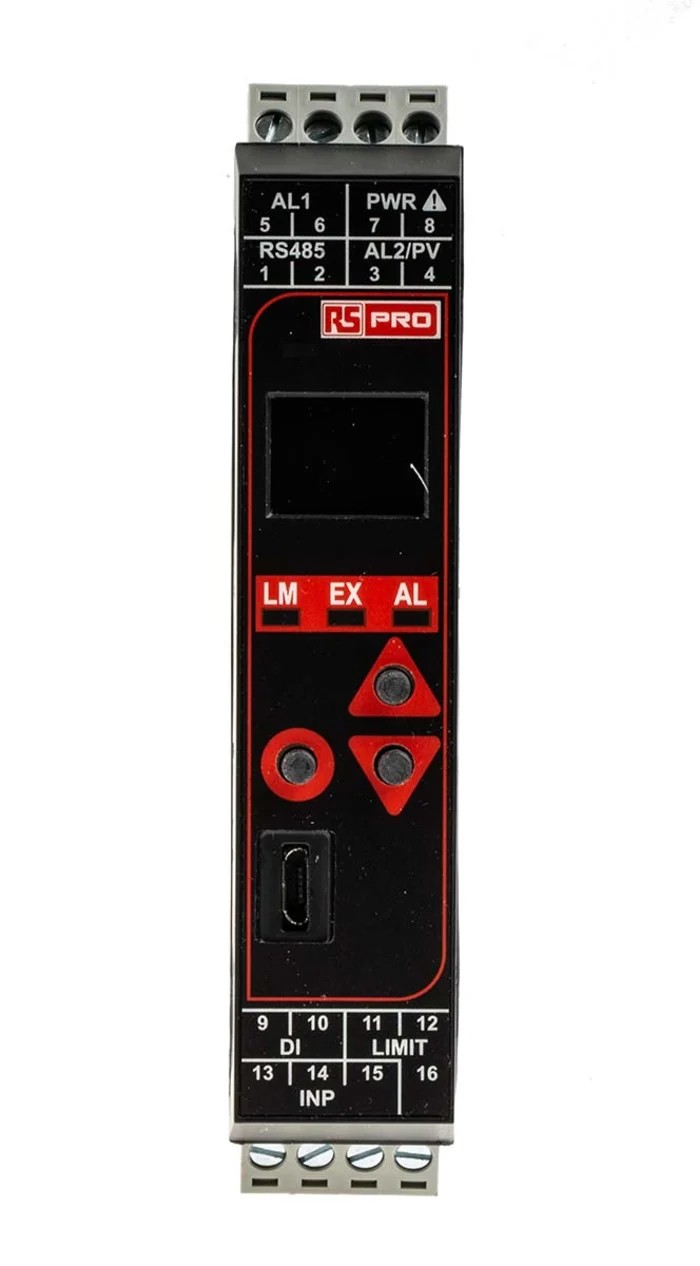

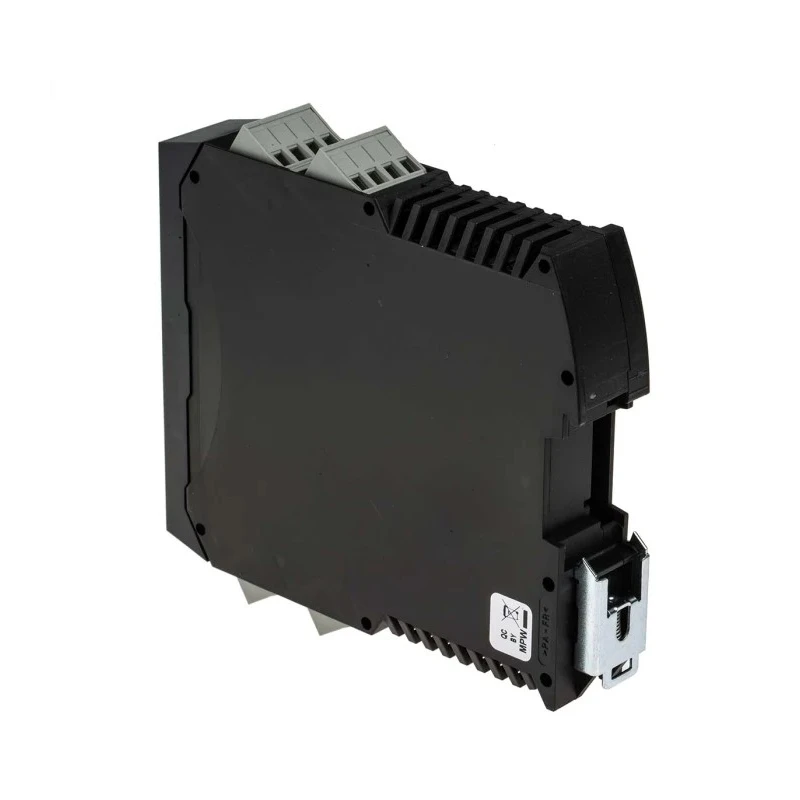

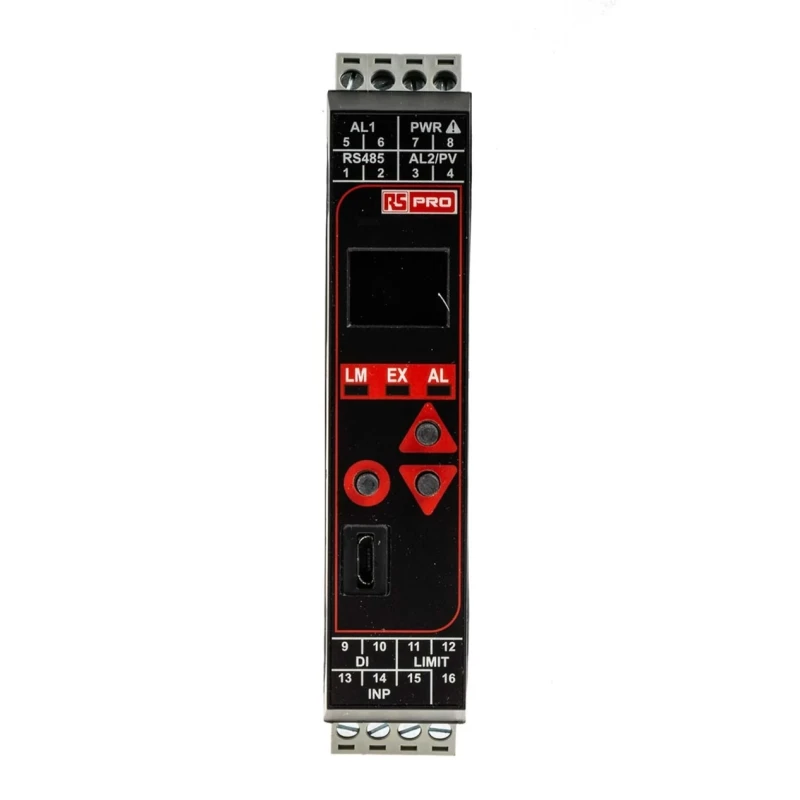

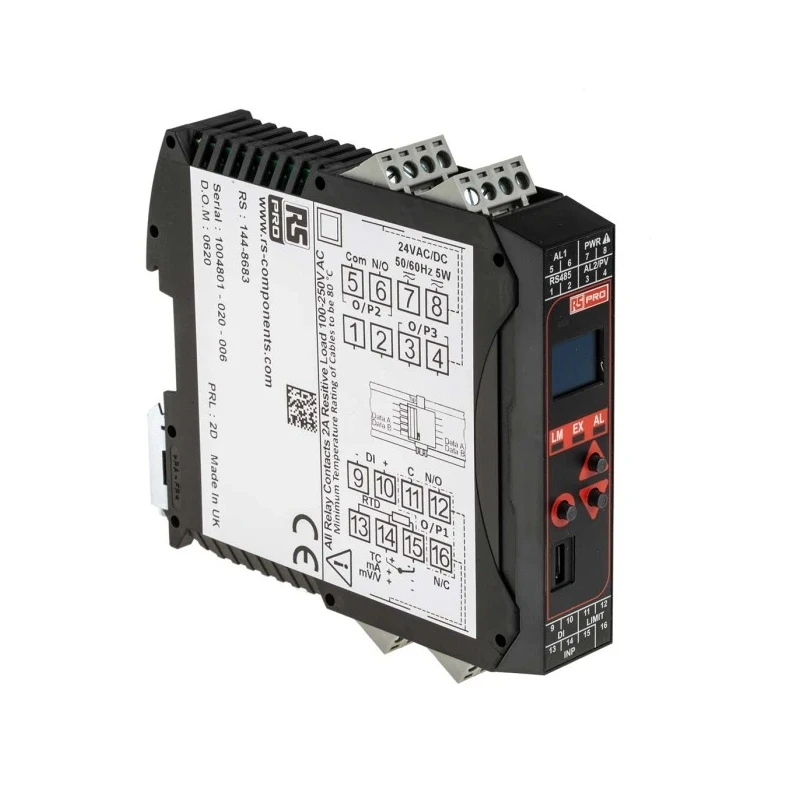

RS PRO DIN Rail PID Temperature Controller 3 Input 2 Output Relay 240V ac OLED Display 144-8683

RS PRO 144-8683 is a DIN Rail PID Temperature Controller designed for precise temperature regulation in industrial and process control applications. Featuring 3 universal input channels capable of accepting Thermocouple, RTD, DC Voltage, and DC Current signals, it offers flexibility for diverse temperature sensing requirements.

This controller includes 2 relay outputs with changeover capability, supporting a maximum current of 2 Amps, enabling control of heating and cooling devices. The device operates on a 240V ac power supply and provides a sharp OLED display along with a 3-button interface for straightforward, rapid configuration and monitoring.

Designed for industrial environments, it supports DIN Rail mounting with a compact form factor of 99mm length, 22.5mm width, and a panel depth of 123mm. Its IP20 rating provides protection against solid objects. Communication via RS485 allows integration into larger automation and control systems.

The controller functions reliably within an ambient temperature range of 0°C to 55°C and includes built-in alarms for high/low limits or temperature deviations, enhancing process safety and reliability.

Certified to multiple international standards such as EN61010-1, cUL, CE, UL, FM, and EN61326-1:2013 ensures compliance with safety and electromagnetic compatibility requirements. This makes it an ideal choice for industrial, laboratory, manufacturing, HVAC, and water treatment applications where precise temperature control is critical.

Equipped with 3 input types including Thermocouple, RTD, DC Voltage, and DC Current. Features 2 changeover relay outputs with a maximum current of 2A for reliable switching. Clear OLED display with 3-button interface for fast and easy setup.

Supports RS485 digital communication for integration in automation systems. DIN rail mounting design with IP20 rating suitable for industrial environments. Operates within 0°C to 55°C temperature range to suit various process conditions.

Compact dimensions of 99mm length, 22.5mm width and 123mm panel depth. Termination via screw terminals for secure electrical connections. Complies with international safety and EMC standards including EN61010-1, cUL, CE, UL, FM, and EN61326-1:2013.

Designed for accurate proportional integral derivative temperature control in industrial processes. Explore more RS PRO Temperature Controllers and related automation equipment on EnvMart for your industrial measurement and process control needs.
