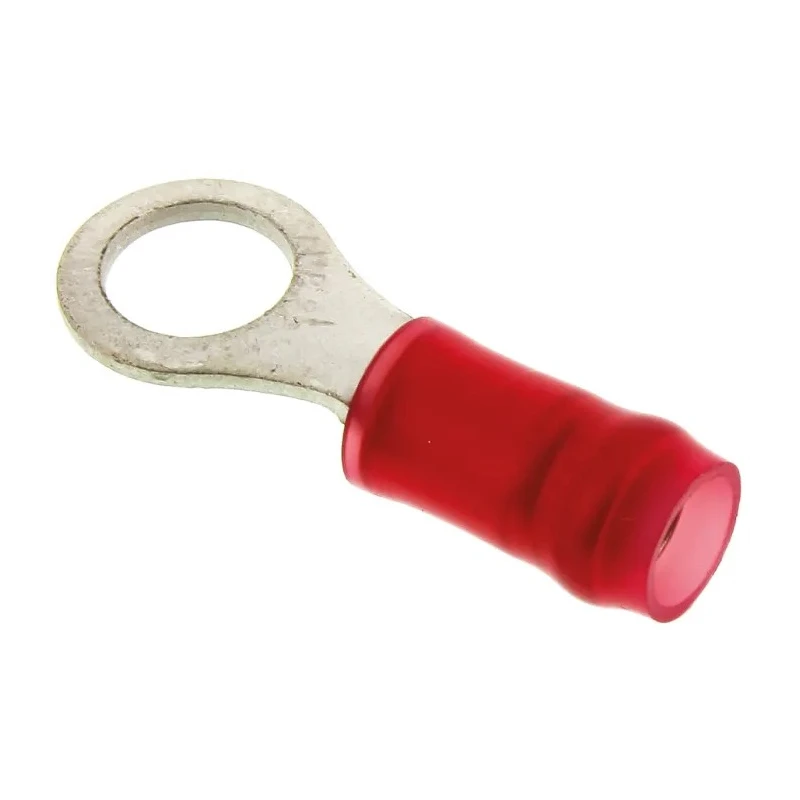

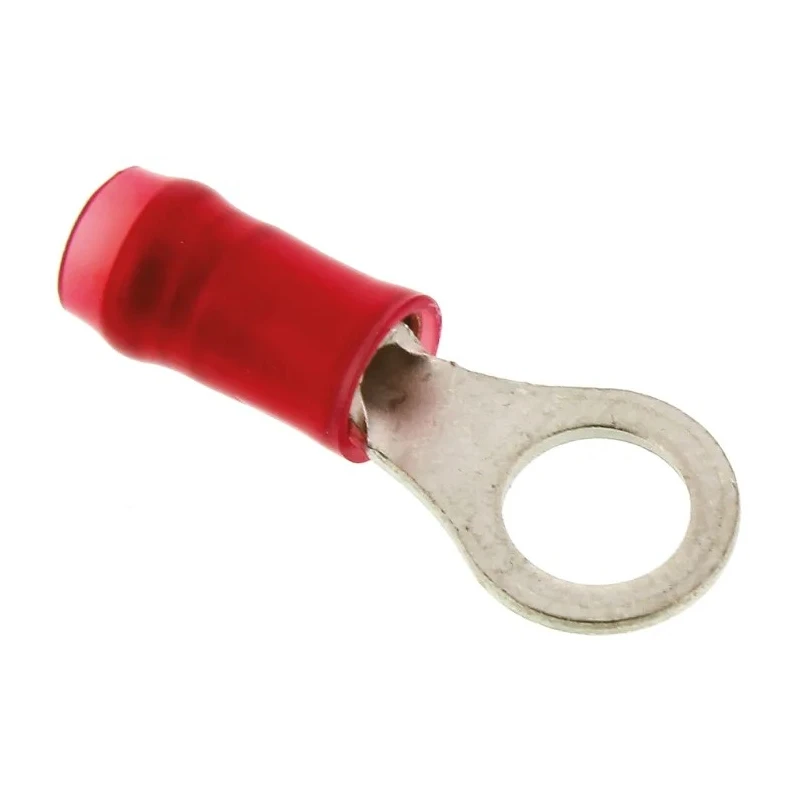

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 22 AWG 16 AWG Wire Size Red 130008
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Model | 130008 |
| Insulation | Insulated |
| Overall Length | 21.6mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.25mm² |
| Maximum Wire Size mm² | 1.6mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 7.92mm |
| Inner Ring Diameter | 5mm |
| Stud Size | M5 |
Key Features
- High conductivity copper body ensures excellent electrical performance.
- Copper sleeve enhances wire insulation support and prevents wire fraying.
- Serrated wire barrel provides maximum contact and tensile strength after crimping.
- Colour-coded red nylon sleeve enables quick wire size identification.
- Funnelled wire entry allows easy and fast insertion during production.
- Capable of handling operating temperatures up to 105°C reliably.
- Uniform and reliable crimp formed using specialized tool dies.
- Suitable for use in industrial, aerospace, automotive, transportation, and electrical panel applications.
Product Description
TE Connectivity 130008 PIDG Insulated Ring Terminal is a precision-engineered electrical connector designed for reliable and durable wire terminations in demanding environments. It supports wire sizes ranging from 22 AWG to 16 AWG and features an M5 stud size, making it ideal for various electrical and electronic applications.
The terminal incorporates a high conductivity copper body with tin plating to ensure excellent electrical performance and corrosion resistance. A copper sleeve surrounds the wire barrel to provide enhanced insulation support and to prevent wire strand fraying, aiding long-term durability.
The wire barrel contains serrations offering superior contact and tensile strength after crimping, enabling secure connections. The outer red nylon sleeve provides easy color-coded identification for wire size and tooling compatibility. The funnelled entry into the barrel facilitates fast, error-free wire insertion, particularly in high-speed production settings.
These terminals operate reliably up to a maximum temperature of 105°C and are built to withstand the stresses encountered in transportation, aerospace, instrumentation, control panels, motors, power supplies, and appliances. While they meet stringent quality standards, no explicit certifications or approvals are specified for this model.
High conductivity copper body for effective electrical contact. Copper sleeve improves wire insulation support and prevents strand fraying. Serrations in wire barrel provide maximum contact and tensile strength. Color-coded nylon sleeve in red for easy identification.
Funnelled wire barrel entry facilitates fast wire insertion. Designed for use with wire sizes 22 AWG to 16 AWG and M5 stud terminals. Operates reliably up to 105°C operating temperature. Ideal for industrial, aerospace, automotive, and electrical panel applications.
Overall length of 21.6 mm with an outer ring diameter of 7.92 mm.
TE Connectivity is a recognized name in electronics components, and this PIDG Ring Terminal supports diverse industrial and commercial electrical connector needs. Explore more high-quality wire terminals and splices in the Electronics & Electrical category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal supports wire sizes ranging from 22 AWG to 16 AWG.
It operates reliably at a maximum temperature of 105°C.
The compatible stud size for this ring terminal is M5.
The contact material is high conductivity copper with tin plating for enhanced electrical performance.
The overall length of this terminal is 21.6 mm.
The outer ring diameter measures 7.92 mm.
The funnelled wire entry facilitates fast and error-free wire insertion, particularly beneficial in high-speed production settings.
The terminal includes a copper sleeve that enhances wire insulation support and prevents wire strand fraying.
It is suitable for use in industrial, aerospace, automotive, transportation, and electrical panel applications.
The wire barrel contains serrations that provide maximum contact and tensile strength after crimping.
No explicit certifications or approvals are specified for this model.
The outer nylon sleeve is color-coded red for easy identification of wire size.
