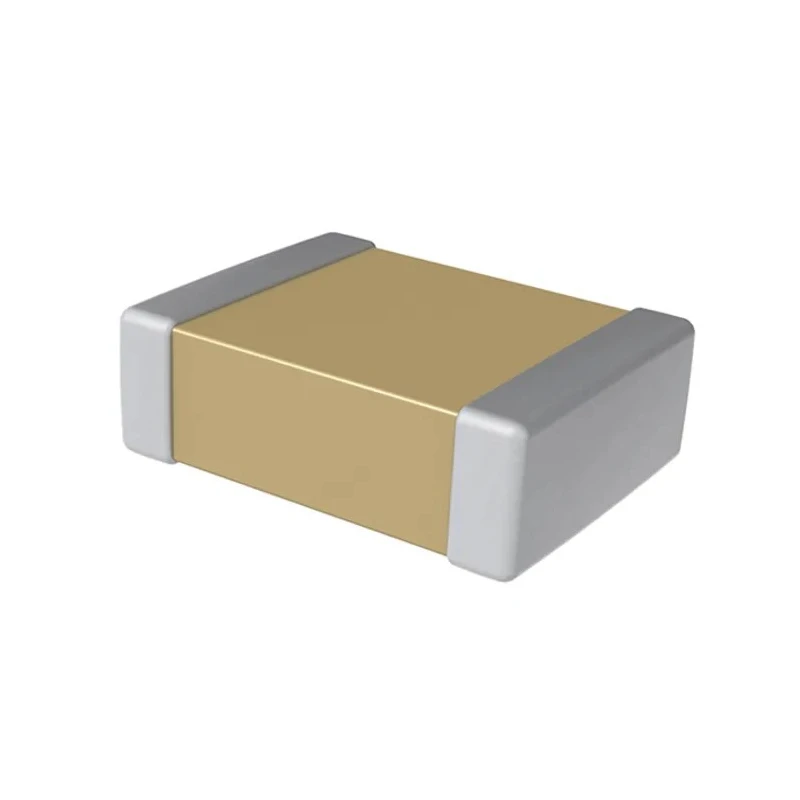

KEMET Multilayer Ceramic Capacitor 20 pF, 50V DC, ±2 %, Surface Mount, 0402, C0G Dielectric, C0402C200G5GACTU

KEMET C0402C200G5GACTU is a high-quality multilayer ceramic capacitor featuring a 20 pF capacitance, 50V DC voltage rating, and ±2 % tolerance. Designed for advanced electronic applications, it utilises C0G dielectric material, renowned for its thermal stability and minimal capacitance variation with temperature and applied voltage.

This capacitor's stacked construction, coupled with a miniature 0402 surface-mount package, makes it ideal for dense PCB layouts and automated pick-and-place assembly. The C0G dielectric ensures capacitance change is limited to ±30 ppm/°C from −55°C to +125°C, offering engineers assurance of stable performance across challenging environments.

With a voltage rating of 50V DC, the unit is suitable for various signal and power filtering applications, supporting both precision analog and digital circuits. Its ±2 % tolerance guarantees adherence to tight industry specifications, critical in high-reliability electronics.

The termination type is solder, and the capacitor comes packaged in paper tape reels for high-volume manufacturing compatibility. Standards and approvals include compliance with EIA 481, J-STD-020, and IPC-7351, reflecting its quality and suitability for professional use.

Additional attributes such as extremely low equivalent series resistance (ESR), low equivalent series inductance (ESL), and the absence of piezoelectric noise set this component apart in demanding environments. The suppression class is specified as Class II.

Its broad operating temperature range from −55°C to +125°C, combined with high ripple current capability and lead-free construction, allows integration in applications where durability and longevity are essential.

Typical industrial and commercial applications include telecommunications, automotive electronics, medical devices, instrumentation, consumer electronics, and more - where precision signal processing and reliability are paramount.

Capacitance value of 20 pF ensures accurate charge storage for high-frequency applications. Rated for 50V DC voltage, suitable for standard and precision electronic circuits. C0G dielectric exhibits minimal capacitance change over temperature and voltage, delivering stability.

±2 % tolerance for tight specification compliance in demanding electronics designs. Surface mount 0402 package streamlines PCB integration and automated assembly. Stacked construction for optimal electrical characteristics and reliability.

Paper tape packaging supports high-volume reel-based manufacturing processes. Wide operating temperature range from −55°C to +125°C allows versatile deployment. No piezoelectric noise, extremely low ESR and ESL for clean signal performance.
