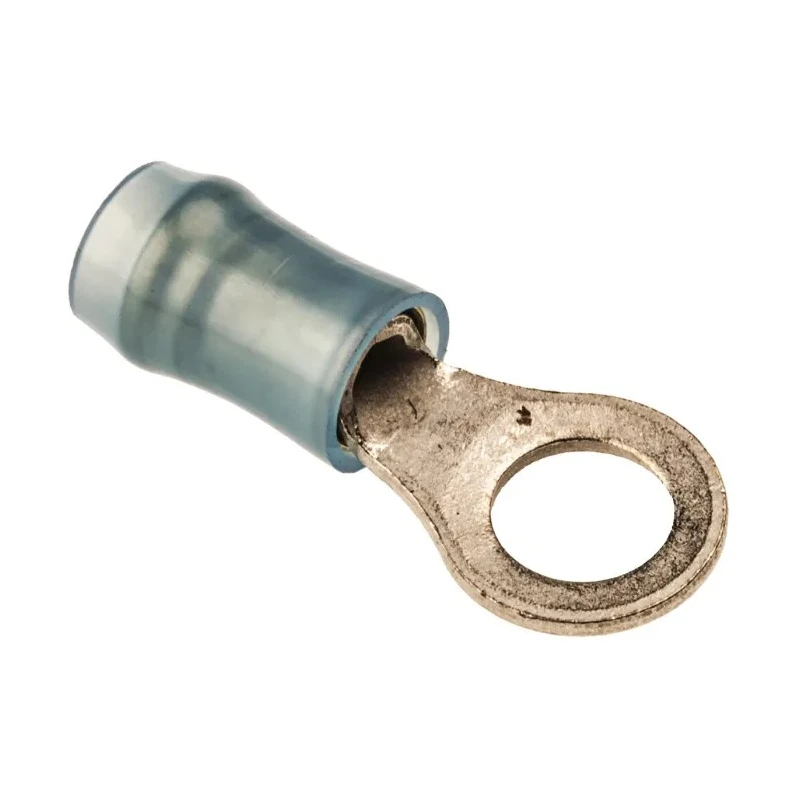

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 16 AWG 14 AWG Wire Size Blue 130094
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| Model | 130094 |
| Insulation | Insulated |
| Overall Length | 21.6mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 150°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 8.7mm |
| Inner Ring Diameter | 5mm |
| Stud Size | M5 |
Key Features
- Constructed with a high conductivity copper body for reliable electrical connection.
- Equipped with a copper sleeve to enhance wire insulation support and prevent fraying.
- The wire barrel includes serrations for maximum contact and tensile strength after crimping.
- Colour coded blue nylon sleeve for efficient wire size and tooling identification.
- Funnelled entry design allows fast and reliable wire insertion during production.
- Rated for a maximum operating temperature of 150°C suitable for various industrial applications.
- Designed to meet stringent reliability requirements in difficult circuit environments.
- Ideal for instruments, control systems, power supplies, transportation, aerospace, and panel boxes.
Product Description
TE Connectivity 130094 PIDG Insulated Ring Terminal is a high-quality electrical connector designed for secure and efficient wiring tasks. Featuring a pre-insulated diamond grip (PIDG) design, this ring terminal fits M5 studs and supports wire sizes from 16 AWG to 14 AWG. The blue nylon insulation sleeve provides clear wire size identification, enabling quick and accurate assembly in high-speed manufacturing environments.
Constructed from a precision-formed, high conductivity copper body with a tin-plated finish, the terminal delivers excellent electrical performance and corrosion resistance. Serrations inside the wire barrel maximize contact and tensile strength after crimping, while the copper sleeve enhances wire insulation support and prevents fraying of strands during installation.
The funnelled wire entry simplifies wire insertion, reducing installation time and ensuring a reliable, uniform crimp when used with specialised tool dies. Rated for maximum operating temperatures of 150°C, these terminals are suited for demanding industrial, laboratory, construction, HVAC, manufacturing, transportation, aerospace, and appliance applications.
These PIDG insulated ring terminals comply with many requirements of MIL-T-7928 Type II, Classes 1 and 2, offering a robust and versatile solution for a wide range of wiring tasks requiring secure connections and high reliability.
High conductivity copper body ensures optimal electrical performance. Copper sleeve provides enhanced wire insulation support and prevents fraying. Serrated wire barrel provides maximum contact and tensile strength. Colour coded blue nylon sleeve for easy wire size and tooling identification.
Funnelled entry design enables fast and error-free wire insertion. Suitable for use in industrial, transportation, aerospace, and appliance wiring. Complies with MIL-T-7928 Type II standards for reliable connections. Maximum operating temperature of 150°C for demanding environments.
Ensures a uniform and durable crimp with specialized tooling. This set contains 1 Pc TE Connectivity PIDG Insulated Ring Terminal Model 130094 suitable for M5 stud applications with 16 AWG to 14 AWG wire sizes. Explore the wide range of TE Connectivity products and other wire terminals in the Electronics & Electricals category at EnvMart to enhance your electrical wiring projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes from 16 AWG to 14 AWG, accommodating a minimum wire size of 1 mm² and a maximum wire size of 2.6 mm².
It is rated for a maximum operating temperature of 150°C, making it suitable for various industrial applications.
This terminal is designed to fit M5 studs, ensuring secure connections in various applications.
The terminal features a high conductivity copper body with a tin-plated finish, and it is insulated with a blue nylon sleeve.
The wire barrel includes serrations that maximize contact and tensile strength after crimping, ensuring a reliable connection.
The overall length of this terminal is 21.6 mm, providing a compact design for various wiring needs.
The inner ring diameter is 5 mm, while the outer ring diameter measures 8.7 mm, allowing for compatibility with M5 studs.
This terminal is ideal for use in instruments, control systems, power supplies, transportation, aerospace, and panel boxes.
The funnelled entry design allows for fast and reliable wire insertion, reducing installation time and ensuring a uniform crimp.
Yes, it complies with many requirements of MIL-T-7928 Type II, Classes 1 and 2, ensuring reliability in demanding environments.
The insulation material is nylon, which provides effective insulation support and identification for wire sizes.
The blue nylon sleeve color codes the terminal for efficient wire size and tooling identification, facilitating quick assembly.
