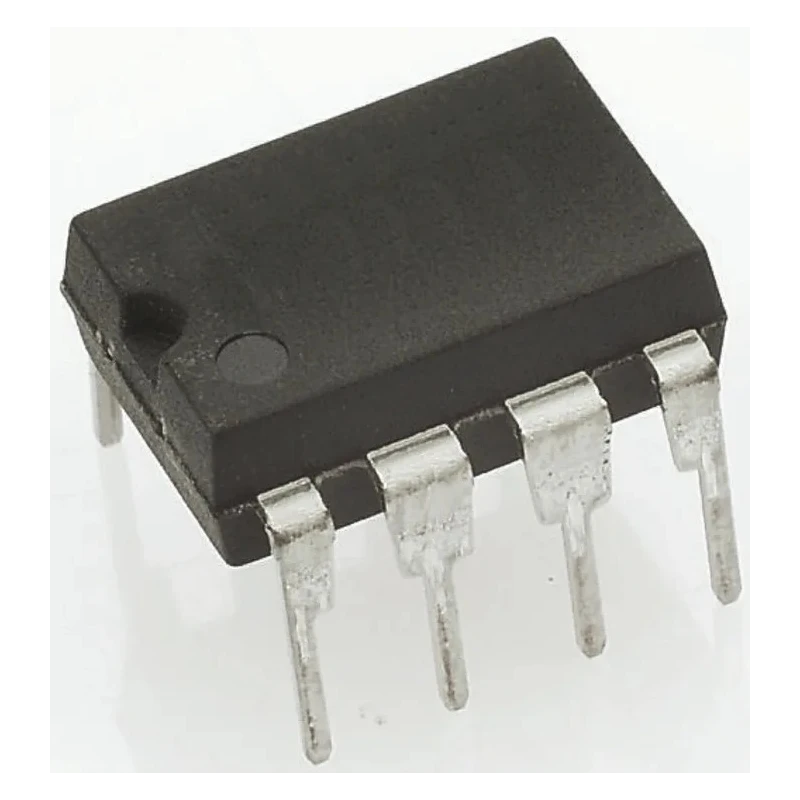

NVE Digital Isolator 110 Mbps, 2.5 kVrms Isolation, 5.5 V Supply, 8-Pin PDIP Package IL710-2E

Free Delivery in India | Lowest Global Shipping Charges

NVE Digital Isolator 110 Mbps, 2.5 kVrms Isolation, 5.5 V Supply, 8-Pin PDIP Package IL710-2E



Category Digital Isolator ICs Brand NVE Condition New

Specifications

Country of Origin	India
Brand	NVE
Length	10.2mm
Model	IL710-2E
Depth	6.6mm
Width	3.81mm
Mount Type	Through Hole
Series	IL
Maximum Operating Temperature	125°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Maximum input current	15μA
Number Of Channels	1
Rise Time	4ns
Supply Voltage	5.5V
Standards/Approvals	UL, IEC
Maximum Forward Voltage	7V
Number of Pins	8
Maximum Data Rate	110Mbps
Propagation Delay Time	18ns
Package Style	PDIP

Key Features

Supports a maximum data communication rate of 110 Mbps for fast digital signals.
Features 2.5 kVrms galvanic isolation ensuring signal integrity and safety.
Operates at a supply voltage of 5.5 V suitable for various digital circuits.
Comes in an 8-pin Dual Inline Package (PDIP) for through-hole mounting.
Low propagation delay time of 18 nanoseconds enabling rapid digital switching.
Maximum input current of 15 microamperes minimizes power consumption.
Wide operating temperature range from -40°C to 125°C for robust industrial use.
Complies with UL and IEC safety standards for reliability and certification.

Product Description

The NVE IL710-2E digital isolator is a high-performance electronic component designed to provide safe galvanic isolation in digital circuits. Featuring a fast data rate of 110 Mbps and isolation voltage of 2.5 kVrms, this isolator supports reliable signal transmission in industrial, laboratory, and electronics manufacturing applications. It operates at a supply voltage of 5.5 V and comes in a compact 8-pin PDIP through-hole package, facilitating easy integration into a variety of circuit boards.

This IL710 series isolator offers a low propagation delay of 18 ns and a very low maximum input current of 15 µA, ensuring minimal impact on power budgets. It is built to withstand harsh environments with an operating temperature range from -40°C to 125°C and conforms to UL and IEC standards, making it suitable for certified industrial and commercial equipment.

The package measures 10.2 mm in length, 3.81 mm in width, and 6.6 mm in depth, making it a compact solution for digital isolation needs. The isolator's robust electrical characteristics make it ideal for use in electronic components, power supply modules, displays, optoelectronics, and optocouplers, ensuring enhanced system safety and signal integrity.

Supports a maximum data communication rate of 110 Mbps. Offers 2.5 kVrms galvanic isolation for signal protection. Operates at 5.5 V supply voltage. Low propagation delay time of 18 ns. Maximum input current limited to 15 µA.

Wide temperature operating range from -40°C to 125°C. Complies with UL and IEC standards for industrial safety. Compact 8-pin PDIP package with through-hole mount. Dimensions: 10.2 mm x 3.81 mm x 6.6 mm (L x W x D). Suitable for industrial, laboratory, manufacturing, and electronics applications.
