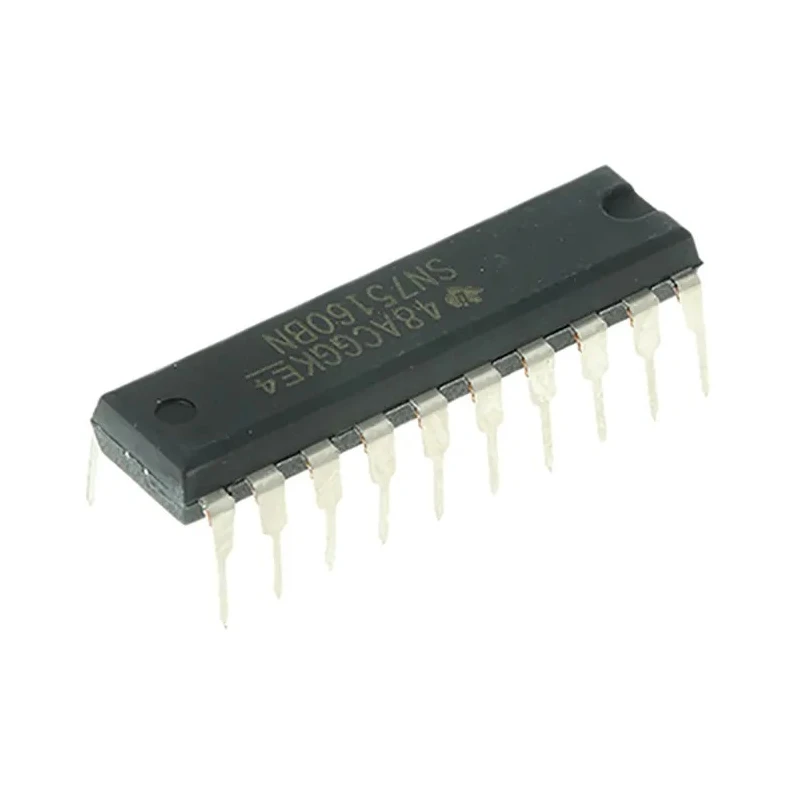

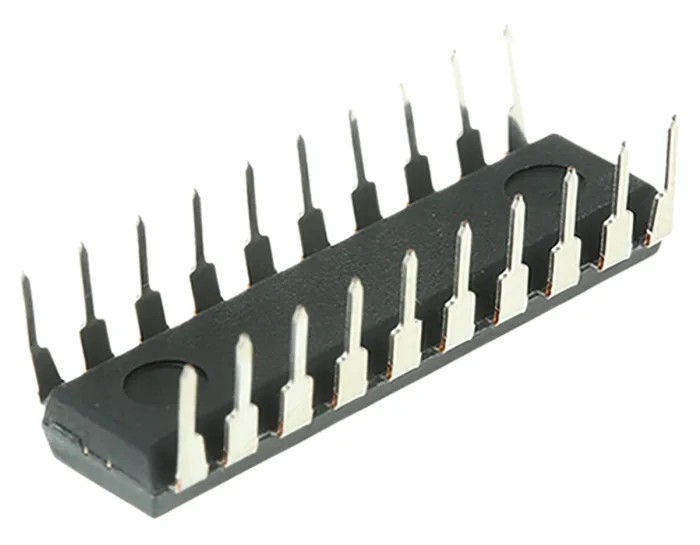

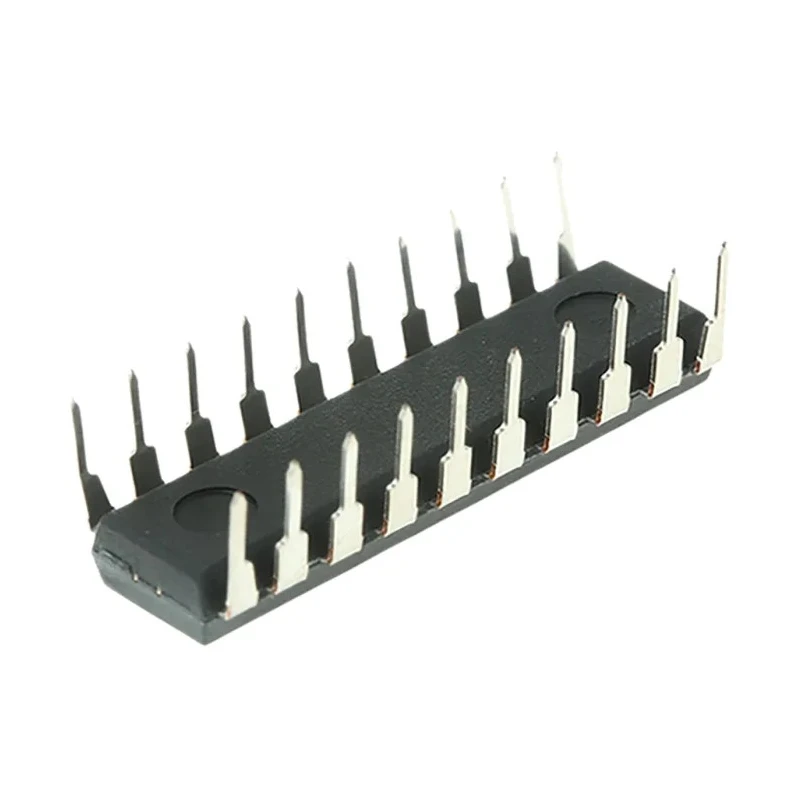

Texas Instruments 8-Channel Line Transceiver, Open Collector, Non-Inverting, 20-Pin PDIP SN75160BN

Texas Instruments SN75160BN is a high-performance 8-channel line transceiver IC designed for bus transceiver applications. Featuring open collector outputs and non-inverting polarity, it delivers reliable electrical signal transmission and reception in circuit designs. The component is packaged in a 20-pin PDIP format suitable for through-hole mounting on circuit boards.

This line transceiver operates within a supply voltage range from 4.75 volts minimum to 5.25 volts maximum, ensuring consistent operation across standard 5V logic environments. It supports single-ended inputs and provides open collector outputs, accommodating flexible interfacing with various industrial and communication bus systems.

With a minimal propagation delay time of 22 nanoseconds at capacitive load, the SN75160BN achieves fast switching suitable for high-speed data communications. The device handles a maximum low-level output current of 48 milliamps and a maximum high-level output current of -5.2 milliamps, balancing driving strength and power efficiency. Operating temperatures range from 0°C to 70°C, making it compatible with typical industrial and commercial electronic applications.

The physical dimensions of the IC measure approximately 26.92 mm in length, 6.6 mm in width, and 5.08 mm in height, allowing easy accommodation in circuit assemblies. The supply current draw is typically 110 mA, supporting optimized power management in system designs.

This product does not carry specific standards or automotive certifications but is widely applicable in bus transceiver functions related to interface ICs in electronics and electrical systems. It is particularly suitable for industrial, communication, and control systems requiring robust line transceiver performance.

Features an 8-channel line transceiver configuration suitable for robust signal transmission. Open collector output type enables versatile interfacing with various bus systems. Non-inverting polarity ensures signal integrity and accurate data transmission.

Operates with a supply voltage range from 4.75V to 5.25V for stable performance. Minimum propagation delay time of 22ns ensures fast signal switching. Designed for through-hole mounting with a 20-pin PDIP package format.

Operating temperature range from 0°C to 70°C suitable for industrial environments. Maximum low level output current of 48mA and maximum high level output current of -5.2mA for effective driving capability. Supply current rated at 110mA to optimize power consumption.

This Texas Instruments SN75160BN 8-Channel Line Transceiver is an essential component for industrial electronics and communication equipment. Explore more semiconductor solutions and line interface ICs at EnvMart to find compatible and complementary products.
