APEM Yellow LED Panel Mount Indicator 22.2 mm, Lead Wire Termination, IP67, 24V dc QH22L57YC

Free Delivery in India | Lowest Global Shipping Charges

APEM Yellow LED Panel Mount Indicator 22.2 mm, Lead Wire Termination, IP67, 24V dc QH22L57YC

Name: APEM Yellow LED Panel Mount Indicator 22.2 mm, Lead Wire Termination, IP67, 24V dc QH22L57YC
Brand: APEM
SKU: 189180
Price: 26.3 USD
Availability: InStock



Category Panel Mount Indicator Brand APEM Condition New

Specifications

Country of Origin	United Kingdom
Brand	APEM
Length	5.5mm
Model	QH22L57YC
IP Rating	IP67
Series	QH series
Number Of Leds	1
Maximum forward current	20mA
Viewing angle	30° - 100°
Sub Type	LED Indicator
Terminal type	Lead Wire
Supply Voltage	12 to 24 V dc at 10 mA - 20 mA
Lens Colour	Yellow
Luminous Intensity	90mcd
Standards/Approvals	RoHS
LED Colour	Yellow
Lens Finish	Diffused
Maximum Supply Voltage	24V dc
Minimum Supply Voltage	12V
Mount Hole Size	22.2 mm
Multicolour/Single Colour	Single Colour
LED Orientation	Top
Manufacturing	Can be used with an emergency stop button. The halo ring could be on continuously for poorly lit areas, or illuminate when the E-Stop is activated

Key Features

Single yellow LED illumination for clear visual indication.
Lead wire termination with 200 mm long 26awg wire.
Wide viewing angle between 30° and 100° for versatile visibility.
IP67 sealed design ensures dust and water resistance for harsh environments.
Compatible with 16 mm, 19 mm, and 22 mm panel cutouts.
Operating voltage range from 12 V to 24 V dc with max forward current of 20 mA.
Compact 5.5 mm length and diffused yellow lens finish for effective light diffusion.
Manufactured in the United Kingdom with RoHS compliance.

Product Description

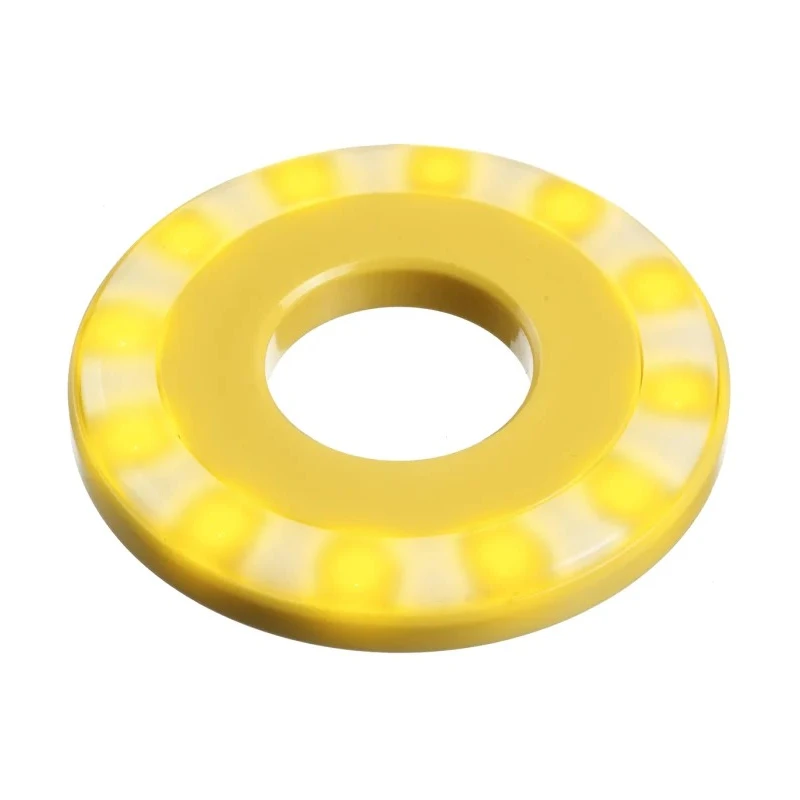

APEM QH22L57YC is a yellow LED panel mount indicator designed for industrial and commercial applications requiring reliable visual signaling. Featuring a 22.2 mm mounting hole, this indicator provides robust IP67 protection against dust and water ingress, making it suitable for both interior and exterior environments.

The single yellow LED emits 90 mcd luminous intensity through a diffused lens for clear and uniform illumination. It is supplied with 200 mm long 26awg lead wires for easy connection and quick installation. Operating from 12 V to 24 V dc with a maximum forward current of 20 mA, this indicator offers consistent performance with a wide viewing angle of 30° to 100°.

The QH series illuminators are designed to mount easily on standard panel switches with cutouts of 16 mm, 19 mm, and 22 mm, including emergency stop switches. The compact design ensures zero depth behind the panel, conserving space in control panels and equipment housings.

Typical uses include transport applications like door activation indicators on buses and trains, manufacturing processes such as emergency stop signaling, and security or access control systems signaling authorization status. Its sealed and durable construction supports demanding industrial environments.

Single yellow LED provides clear status indication. IP67 rated for protection against dust and water. Designed for panel mounting with standard hole size. Wide voltage range and high durability for industrial use. Diffused lens finish enhances light distribution.

Lead wire termination simplifies installation. RoHS compliant and manufactured in the United Kingdom.

This APEM QH22L57YC Panel Mount Indicator is an ideal choice for industrial, transport, manufacturing, and security applications requiring effective and reliable visual signaling solutions. Browse the full category for more Panel Mount Indicators and related components at EnvMart.
