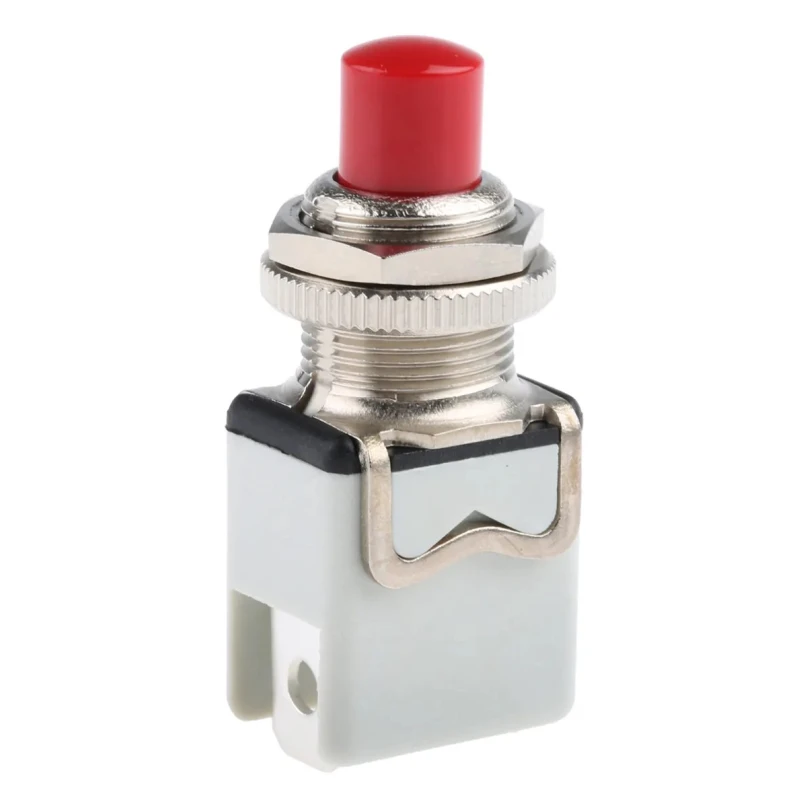

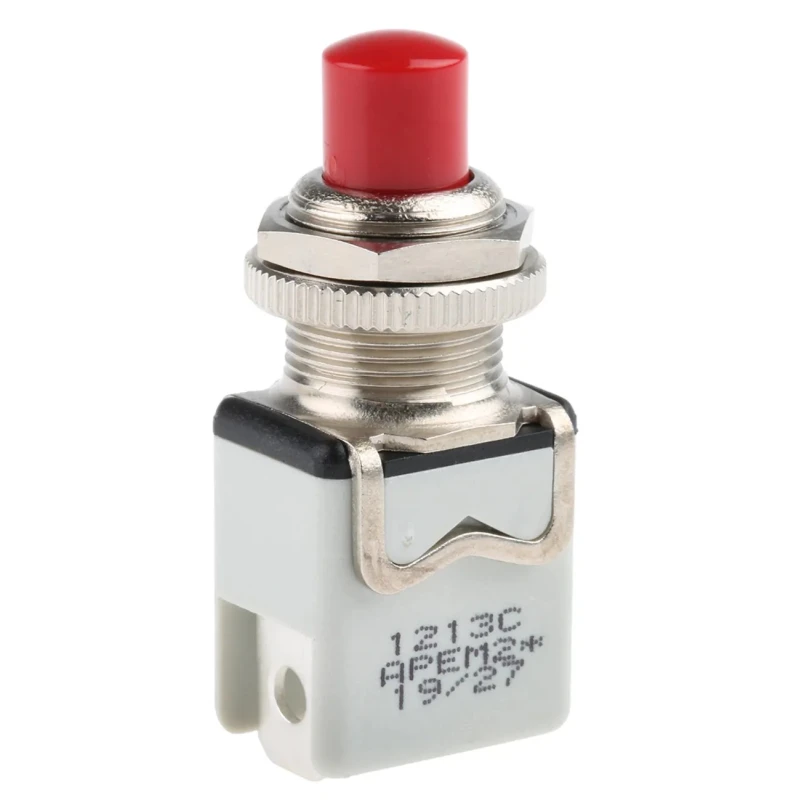

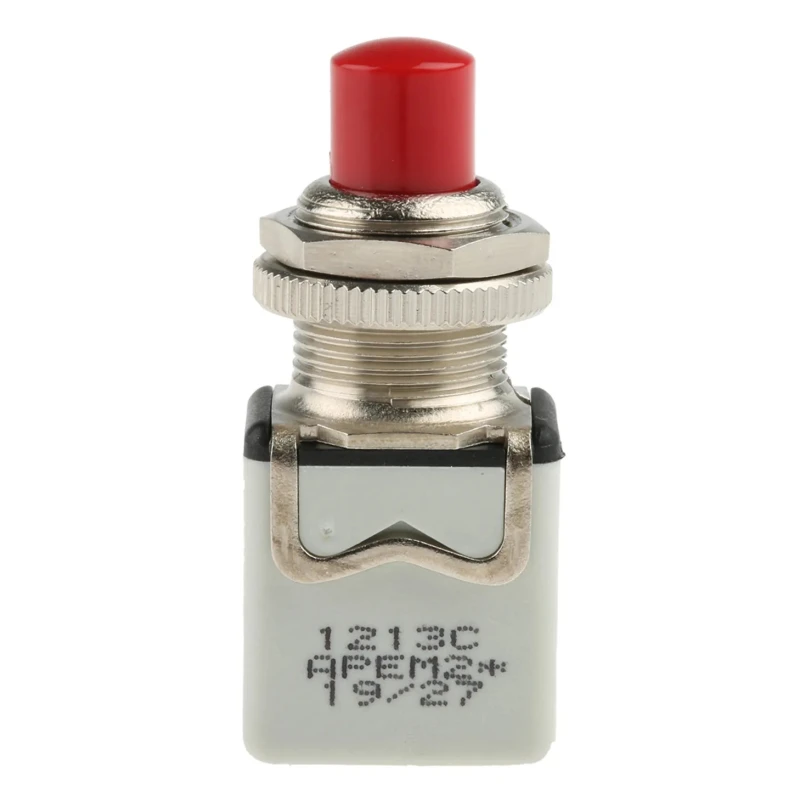

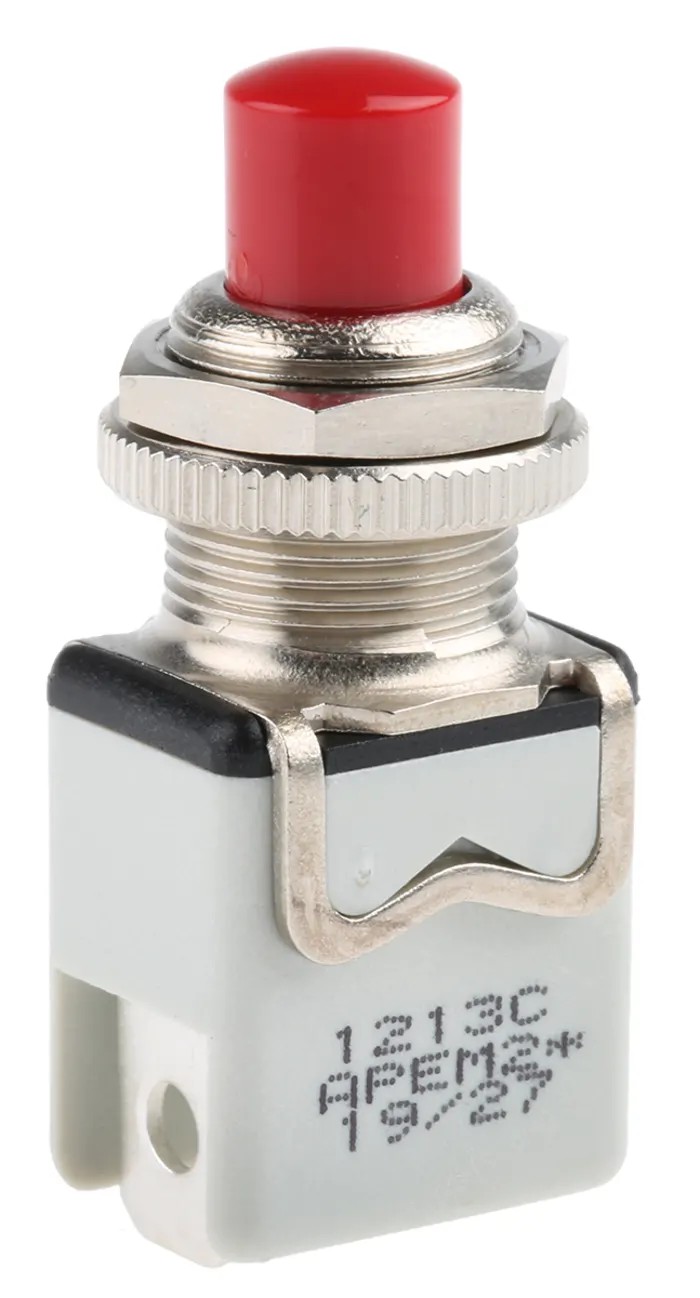

APEM 1200 Series Red Momentary Push Button Switch Panel Mount SPST 12.2 mm Cutout 24V DC 250V AC 1213C RED

The APEM 1213C RED 1200 Series Push Button Switch is a high-quality, momentary action switch designed for panel mounting requiring a 12.2 mm cutout. This red actuator switch features a single pole, single throw (SPST) contact configuration suitable for controlling electrical circuits in various industrial and electrical applications.

Designed with a cylinder style actuator, the switch provides robust tactile feedback and is rated for both 24 V DC and 250 V AC operations. It supports a contact current of 2 A and is equipped with silver contact material ensuring low contact resistance of approximately 10 milliohms and high insulation resistance of at least 1000 MΩ at 500 V DC. The dielectric strength rating of 2000 Vrms provides enhanced safety during electrical use.

Its operational temperature range from -20°C up to 55°C enables stable performance in typical industrial and manufacturing environments. The switch depth behind the panel is 22 mm, with solder and tab terminals allowing straightforward connection in circuit designs.

This push button switch is RoHS compliant and designed to handle a mechanical life of 10,000 cycles, projecting durability and reliability. Although the push button boot and chrome panel nut cap are not included, they are available separately to customize installation and aesthetic needs.

Momentary switch operation with SPST contact and NO/NC configuration. 12.2 mm panel cutout size for easy installation. Rated for 24 V DC and 250 V AC voltage compatibility. 2 A contact current and silver contacts for high conductivity.

Operating temperature range from -20°C to +55°C suitable for various environments. Mechanical life of 10,000 operations ensuring longevity. Panel mount with 22 mm depth and solder/tab terminals. Manufactured in France with RoHS compliance for quality assurance.

This switch is ideal for use in electrical panels, manufacturing controls, automation systems, and general industrial applications requiring a reliable, compact push button switch. Explore more Push Button Switches and Electrical components in EnvMart's catalogue for your next project.
