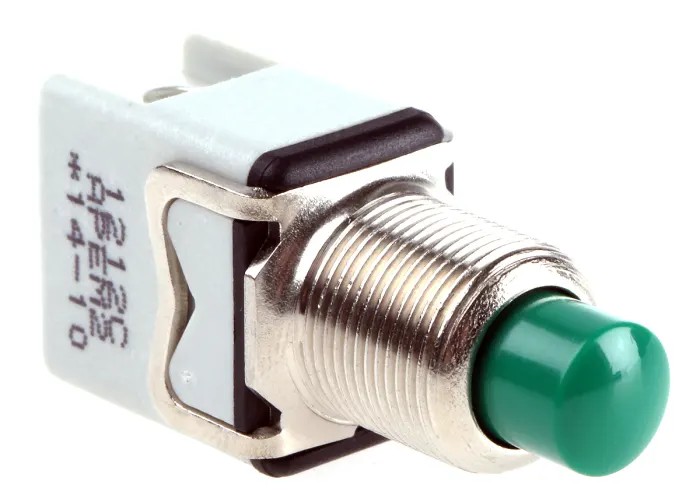

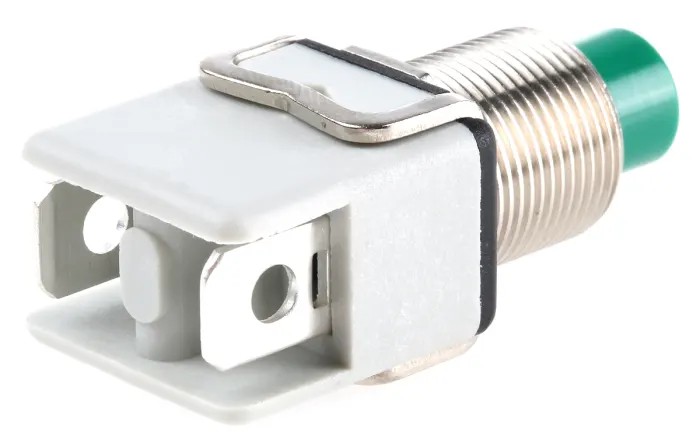

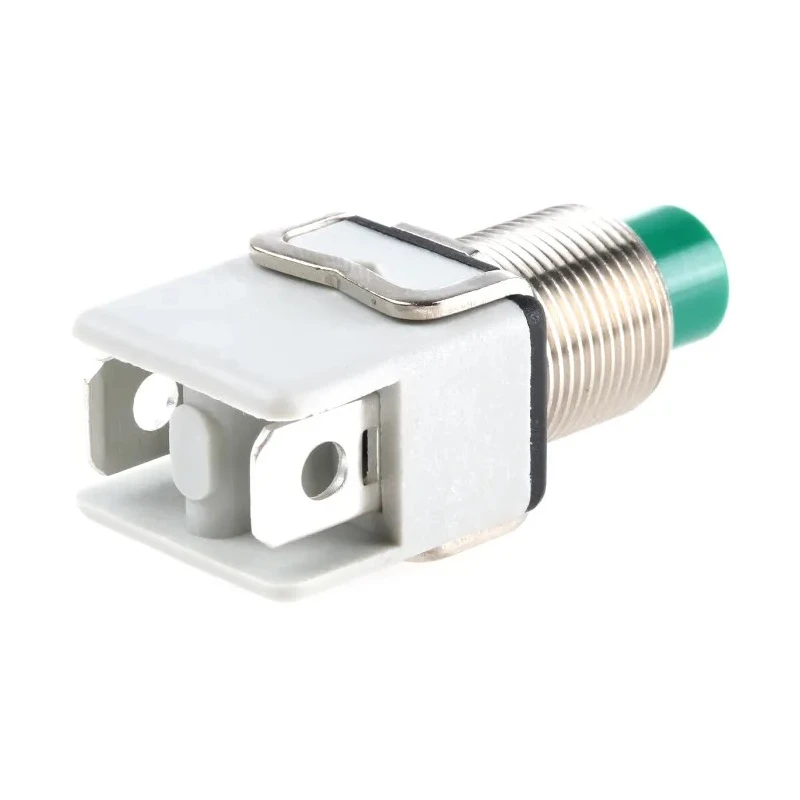

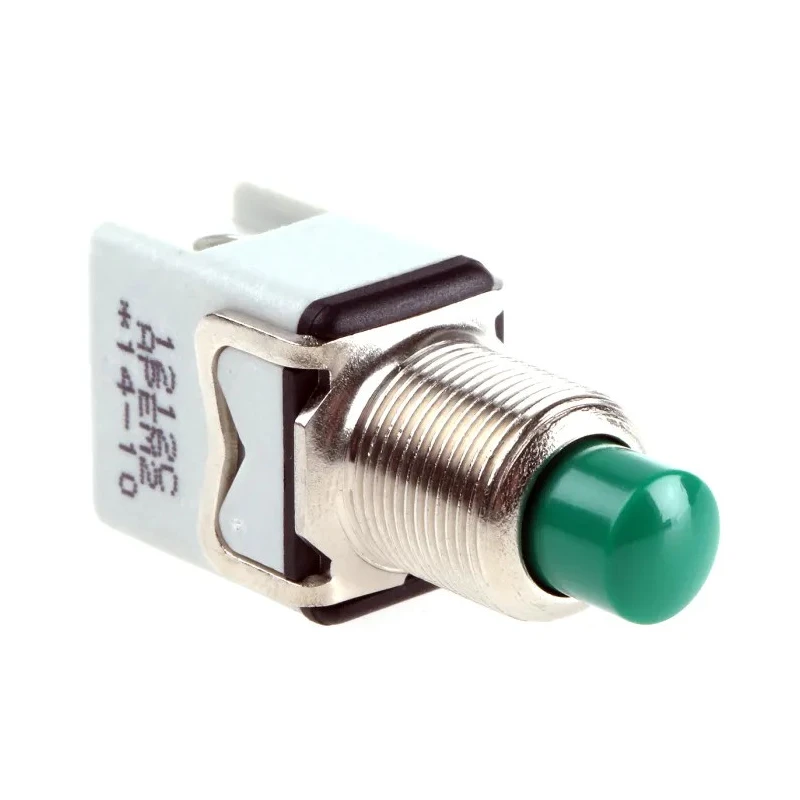

APEM 1200 Series Push Button Switch, Momentary, Panel Mount, 12.2 mm Cutout, SPST, 24 V dc 250 V ac 1212C GREEN

APEM 1212C GREEN push button switch is a momentary operation switch designed for panel mounting with a 12.2 mm cutout. It operates at 24 V dc and 250 V ac, featuring a SPST contact configuration ideal for industrial, automation, and electrical equipment applications.

This switch is built with a green plunger-style actuator made of durable materials and silver contacts for reliable electrical connection and low resistance. It supports a contact current of 2A and withstands operating temperatures from -20°C to 55°C, making it suitable for a wide range of working environments.

The switch offers a mechanical life of 10,000 cycles and maintains insulation resistance of at least 1000 MΩ at 500 V dc, with dielectric strength up to 2000 Vrms assuring safe operation.

Designed for easy panel installation, it has a M12 x 0.75 threaded bush and a depth behind panel of 22 mm. Faston solder tab terminals facilitate quick wiring. Optional accessories include a push button boot (stock no: 103-6303) and chrome panel nut cap (stock no: 103-6319), sold separately.

Its compact size and robust construction make it ideal for use in industrial machinery control panels, laboratory devices, HVAC controls, and manufacturing automation systems where reliable momentary switching is required.

The switch features a green plunger actuator with a 12.2 mm panel cutout diameter. Operates as a single pole single throw (SPST) with momentary switch action. Suitable for contact voltages of 24 V dc and 250 V ac. Designed with solder tab terminals for easy installation on panels.

Contact current rating of 2A enables moderate load handling. Operates within a temperature range of -20°C to 55°C for durability in varied environments. Silver contact material ensures low contact resistance of 10mΩ. Mechanical life expectancy of 10,000 operations guarantees long service.

Compliance with RoHS standards supports environmental safety. Compact panel mounting with a depth behind panel of 22 mm and M12 x 0.75 thread bush. Explore a wide range of Push Button Switches and control components in EnvMart’s Electronics & Electricals category.
