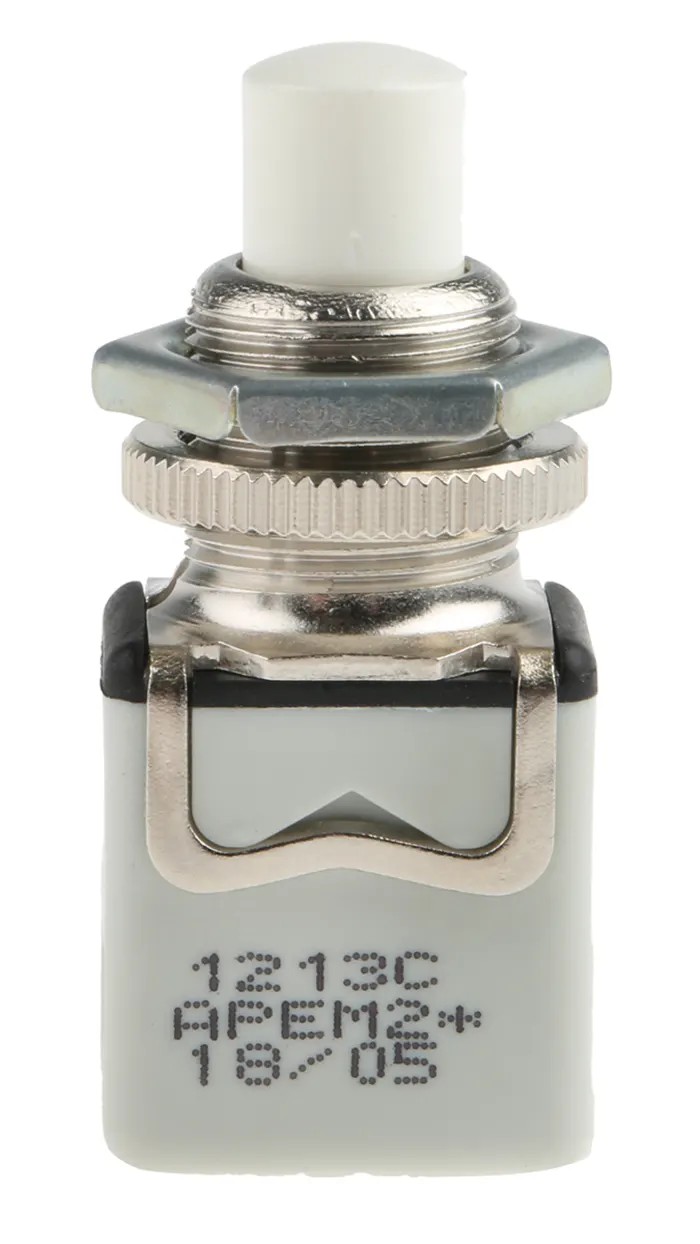

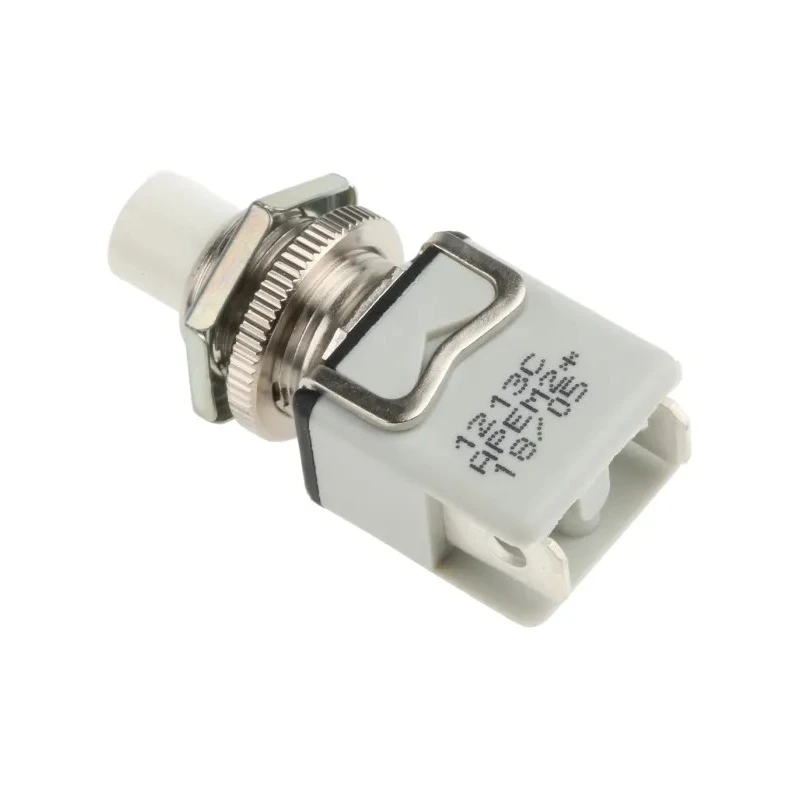

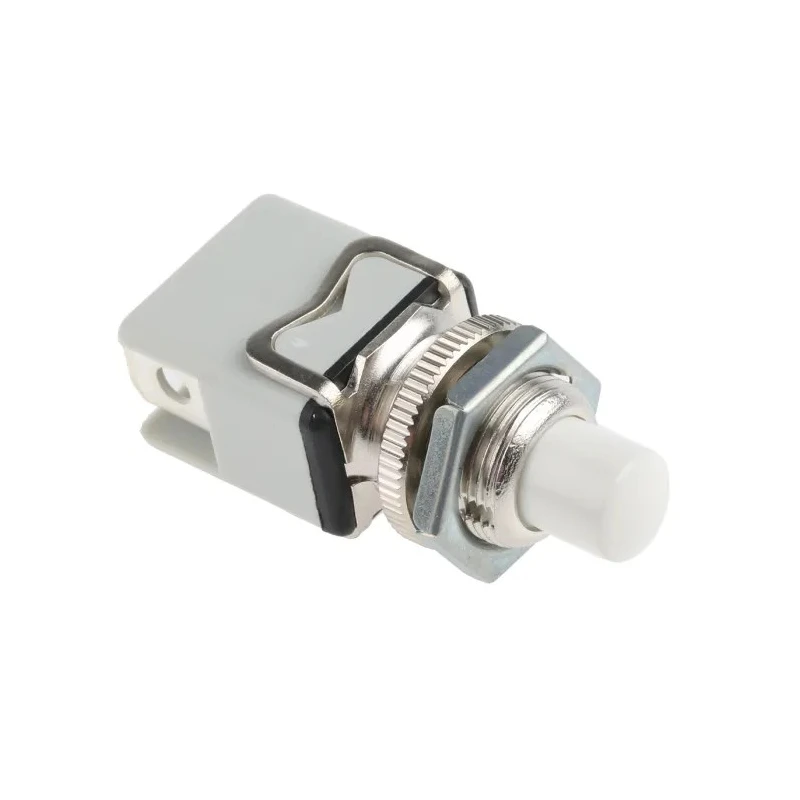

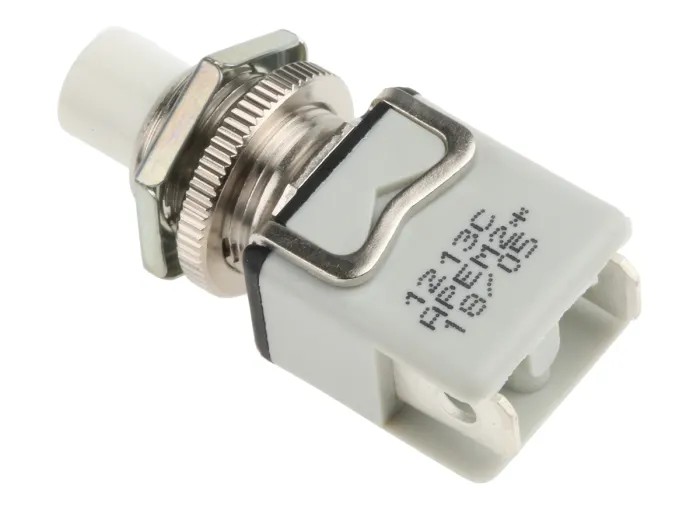

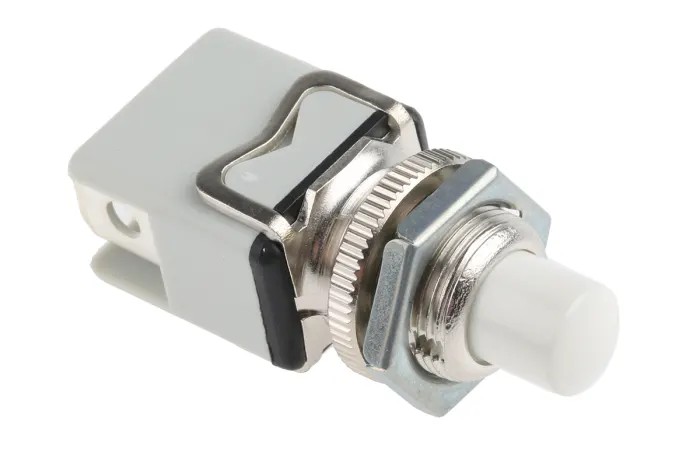

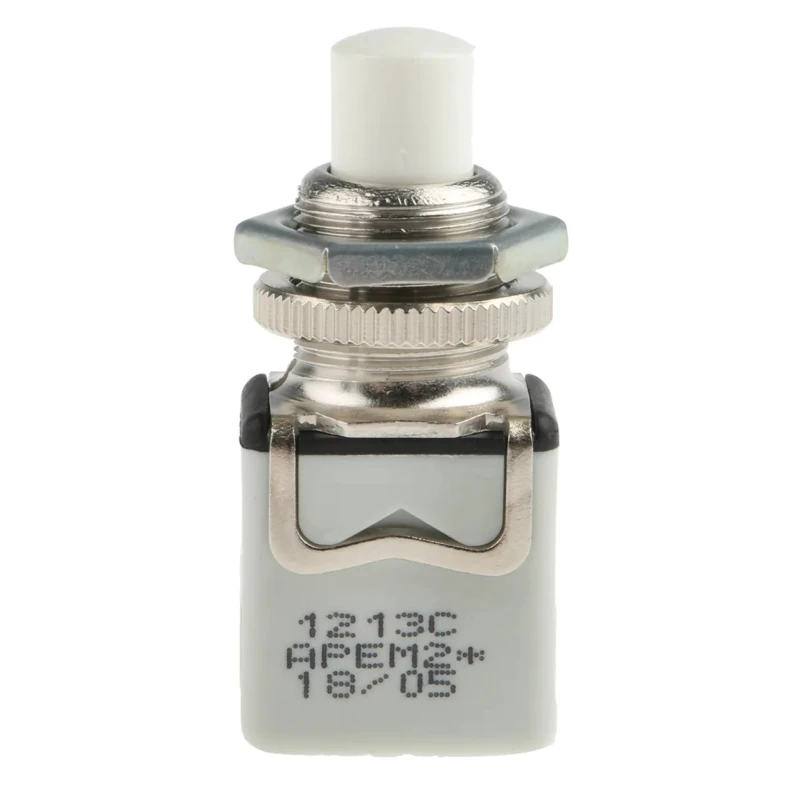

APEM 1200 Series White Momentary Panel Push Button Switch, 12.2 mm Cutout, SPST, 24 V dc 250 V ac 1213C WHITE

The APEM 1213C WHITE 1200 Series push button switch is a high-quality, momentary action SPST switch with a white plunger actuator, designed for panel mounting applications requiring a 12.2 mm diameter panel cutout. Ideal for electrical control panels, automation systems, and industrial machinery, this switch offers reliable switching performance at contact voltages of 24 V dc and 250 V ac.

The switch features faston 0.250 inch terminals for simple solder or tab connections. Its silver contacts ensure minimal contact resistance of 10mΩ and durability through a rated mechanical life of 10,000 cycles, making it suitable for frequent operation environments. The operating temperature range from -20°C to +55°C enables dependable use in a variety of ambient conditions.

Safety and environmental standards compliance includes RoHS certification, and the switch is produced in France, reflecting superior manufacturing standards. The mechanical depth behind the panel is 22 mm, and it is secured with an M12 x 0.75 threaded bush, ensuring stable panel installation.

This product is especially suited for industrial automation, control desks, manufacturing equipment, and other electrical applications needing precise momentary switch functionality. Available accessories include a push button boot (stock no: 103-6303) and chrome panel nut cap (stock no: 103-6319), sold separately to customize user requirements.

The switch operates with a momentary plunger actuator for instant contact closure. It supports contact ratings of 4A at 250 V ac and 24 V dc for versatile electrical load handling. The 12.2 mm panel cutout size facilitates standard panel integration.

Non-illuminated design prioritizes simplicity and cost-efficiency in control applications. Compliant with RoHS standards ensuring reduced environmental impact. Robust construction with silver contacts for reduced wear and long service life.

Operating temperature suitability from -20°C up to 55°C allows use in varied industrial settings. Designed and manufactured in France to meet high quality and reliability criteria. Explore the full range of Push Button Switches and electrical components at EnvMart to meet your industrial and automation needs.
