RS PRO PT100 RTD Sensor 4 mm Dia, 25 mm Long, 4 Wire, Class B Accuracy, 200 °C Max PT100

Free Delivery in India | Lowest Global Shipping Charges

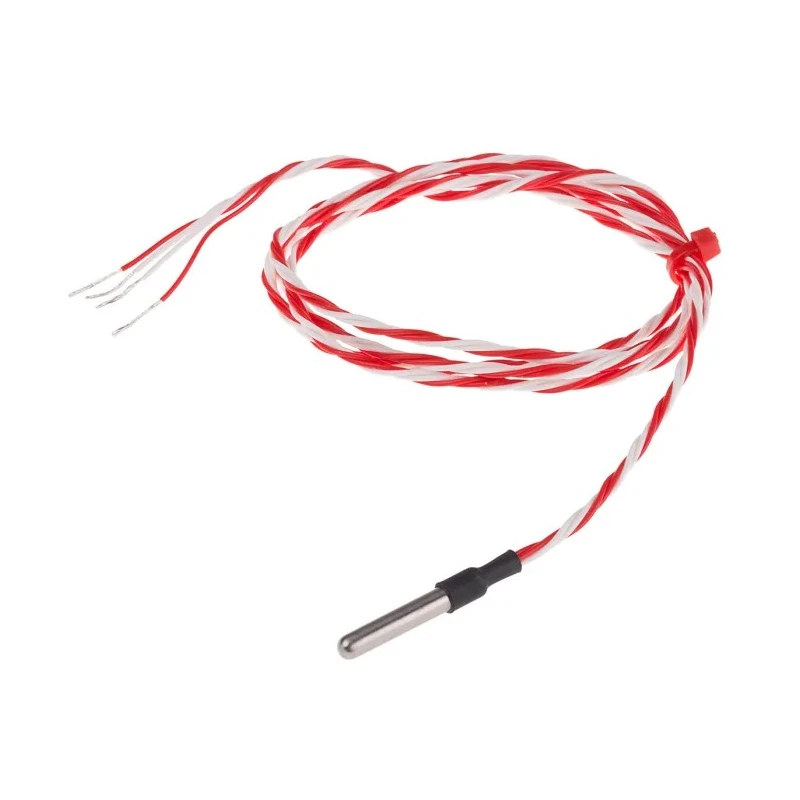

RS PRO PT100 RTD Sensor 4 mm Dia, 25 mm Long, 4 Wire, Class B Accuracy, 200 °C Max PT100

Name: RS PRO PT100 RTD Sensor 4 mm Dia, 25 mm Long, 4 Wire, Class B Accuracy, 200 °C Max PT100
Brand: RS PRO
SKU: 141386
Price: 64.93 USD
Availability: InStock



Category RTD Sensor Brand RS PRO Condition New

Specifications

Country of Origin	United Kingdom
Accuracy	Class B
Brand	RS PRO
Model	PT100
Probe Material	Stainless Steel
Cable Length	1m
Sensor Type	PT100
Probe length	25mm
Probe Diameter	4mm
Termination Type	Bare Wire Tail
Maximum Temperature Sensed	200°C
Minimum Temperature Sensed	-50°C
Number of Wires	4
RS PRO PT100 RTD Sensor 6 mm Dia, 75 mm Long, 4 Wire, Class B 250 °C maxBrand	RS PRO

Key Features

Equipped with a high stability platinum sensing element for precise temperature readings.
Constructed with a rigid 316 stainless steel sheath for corrosion resistance and durability.
Features 4-wire connection with flexible Teflon insulated lead for accurate measurements.
Operates reliably in temperature ranges from -50 to 200 degrees Celsius.
Ideal for various industrial applications including HVAC, chemical processing, and laboratories.
Cable length of 1 meter with bare wire tail termination ensures easy connection.
IEC 60751 Class B accuracy standard compliant.
Designed to withstand moisture, corrosion, and abrasive chemicals in harsh environments.

Product Description

RS PRO PT100 RTD Sensor 4 mm Diameter, 25 mm Probe Length, 4 Wire configuration, Class B accuracy rated up to 200 °C maximum temperature. This sensor provides highly accurate temperature measurement using a platinum resistance thermometer element encased within a corrosion-resistant 316 stainless steel probe sheath.

The sensor's 4-wire design with flexible Teflon insulation ensures minimized measurement errors and superior electrical insulation. The Teflon lead offers excellent resistance to heat, moisture, and corrosive substances, making it suitable for challenging industrial conditions.

RS PRO's PT100 sensor operates in the temperature range of -50 °C to 200 °C, providing stable and precise output per IEC 60751 Class B tolerance. Its robust construction protects the sensitive sensing element during process insertion, ensuring reliable readings over prolonged use.

Applications include use in air conditioning and refrigeration systems, chemical and plastics processing, food manufacturing, and exhaust gas temperature monitoring. Laboratories and general industrial settings benefit from its dependable temperature detection capabilities.

High stability platinum sensing element with Class B accuracy. 316 stainless steel sheath offers corrosion resistance and rugged protection. 4-wire configuration reduces lead wire resistance effects for precise readings.

Teflon insulated flexible lead provides electrical and thermal insulation while resisting harsh environments. Works reliably within -50 °C to 200 °C temperature range. Engineered for use in HVAC, chemical, plastics, food processing, and laboratory applications.

Bare wire tail termination compatible with various PT100 instruments.

RS PRO products are made in the United Kingdom, ensuring rigorous manufacturing standards. For industrial, laboratory, HVAC, and manufacturing users seeking accurate and durable RTD Sensors, this model offers a reliable solution. Explore the RS PRO range for additional sensing and control equipment on EnvMart.
