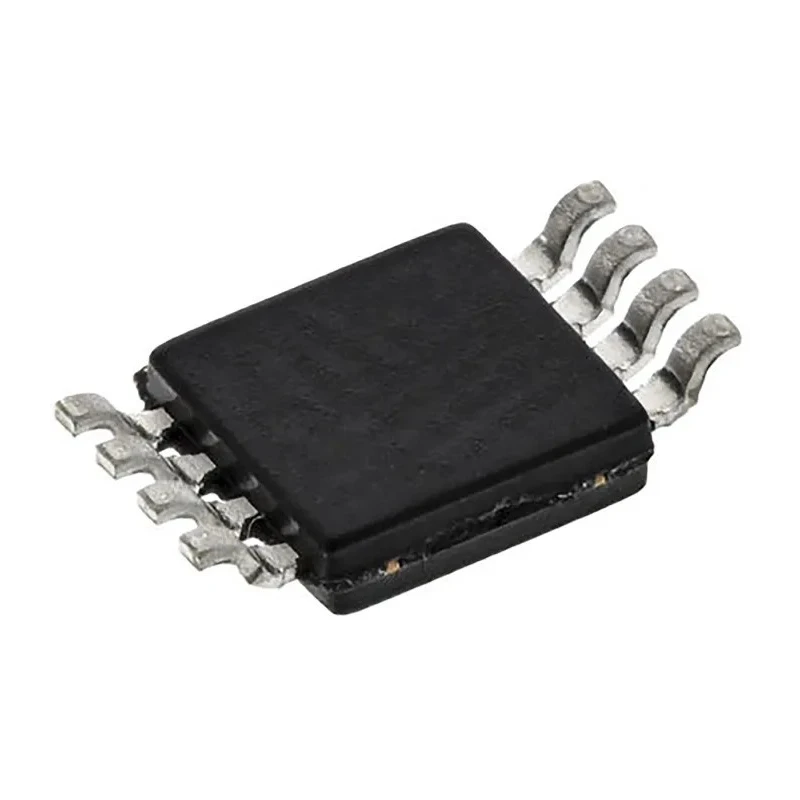

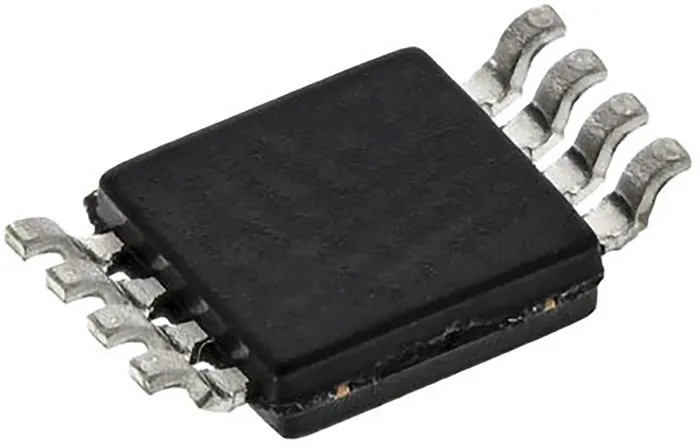

DiodesZetex Operational Amplifier, 700 kHz Gain Bandwidth, 36V MSOP 8-Pin, Dual Channel LM2904AM8-13
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 0.95mm |
| Length | 3.1mm |
| Model | LM2904AM8-13 |
| Width | 3.1mm |
| Mount Type | Surface |
| Series | LM2902/LM2904 |
| Output Current | 50mA |
| Maximum Operating Temperature | 125°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 700kHz |
| Input Bias Current | -500 nA |
| Vos - Input Offset Voltage | 4 mV |
| Slew Rate | 0.3V/μs |
| Input Offset Current | 150 nA |
Key Features
- Features surface mount package type MSOP with 8 pins for compact PCB design.
- Operates over a supply voltage range of 3V to 36V suitable for various electronic circuits.
- Includes low input bias current of -500 nA providing high accuracy signal amplification.
- Offers a slew rate of 0.3V/μs ensuring good performance in signal changes.
- Temperature rating from -40°C to 125°C allows operation in harsh environments.
- Complies with RoHS standards ensuring environmental compliance.
- Has automotive standard certification AEC-Q100 making it reliable for automotive electronics.
- Provides output current capability up to 50 mA supporting moderate load driving.
Product Description
DiodesZetex LM2904AM8-13 is a high-performance dual channel operational amplifier designed for general-purpose electronic applications. It features a gain bandwidth product of 700 kHz and comes in a compact 8-pin MSOP surface mount package, suitable for modern PCB layouts requiring minimal space.
This operational amplifier supports a wide supply voltage range from 3V to 36V, delivering flexibility for various industrial, automotive, and consumer electronic designs. Its low input bias current of -500 nA and input offset voltage of 4 mV ensure accurate signal processing, while the slew rate of 0.3V/μs provides timely response to changing signals.
Designed to operate reliably between -40°C and 125°C temperatures, this amplifier meets RoHS environmental standards and also holds the automotive AEC-Q100 standard, underscoring its quality for automotive and rugged applications.
The LM2904AM8-13 offers an output current of up to 50 mA, making it ideal for driving moderate load circuits. Its physical dimensions are 3.1 mm in length and width with a height of 0.95 mm, enabling use in compact electronic assemblies.
Compact surface mount MSOP package with 8 pins for dual channel operation. Wide supply voltage operation range of 3 to 36 volts for versatility. Low input bias current and offset voltage for precision signal amplification.
Stable performance over wide temperature ranges for industrial use. RoHS compliance ensures eco-friendly manufacturing standards. Meets automotive standard AEC-Q100 for reliable automotive electronics. Capable of delivering output current up to 50 mA for varied applications.
Small form factor dimensions enable space-efficient PCB integration.
This operational amplifier is suitable for use in industrial automation, automotive electronics, signal conditioning, sensor interfacing, and other electronic control systems demanding reliable, precise amplification.
Explore more Operational Amplifiers and electronic components from trusted brands at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the LM2904AM8-13 is 700 kHz, making it suitable for various signal amplification applications.
This operational amplifier operates over a supply voltage range of 3V to 36V, providing flexibility for different electronic circuit designs.
It can deliver an output current of up to 50 mA, allowing it to drive moderate load circuits effectively.
The physical dimensions of the LM2904AM8-13 are 3.1 mm in length and width, with a height of 0.95 mm, making it suitable for compact PCB designs.
This model operates reliably within a temperature range of -40°C to 125°C, suitable for harsh environments.
The LM2904AM8-13 features a low input bias current of -500 nA, which contributes to its high accuracy in signal amplification.
Yes, it complies with RoHS standards, ensuring that it meets environmental compliance requirements.
The LM2904AM8-13 meets the automotive standard AEC-Q100, making it reliable for automotive electronics applications.
The slew rate of this model is 0.3V/μs, allowing for timely response to changes in input signals.
This operational amplifier features dual channel operation, making it suitable for various applications requiring two amplification paths.
It uses a surface mount MSOP package type with 8 pins, facilitating compact PCB integration.
The input offset voltage of the LM2904AM8-13 is 4 mV, which is important for ensuring accurate signal processing.
