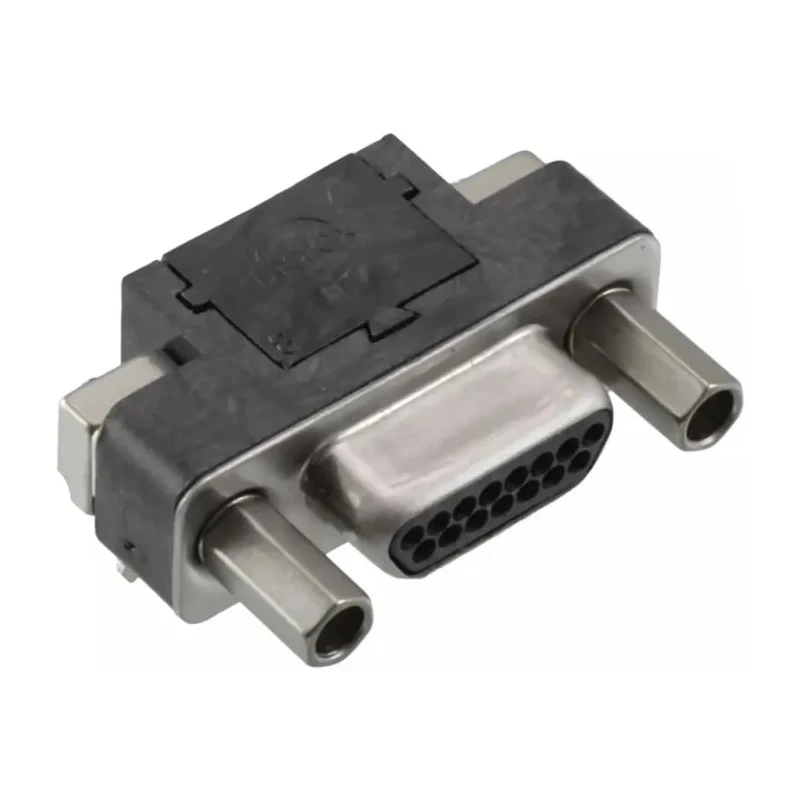

Molex 15 Way Right Angle 1.27 mm Pitch Through Hole Micro-D Sub Connector Male 836129020
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | 83612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Connector Gender | Male |
| Contact Size | 15 |
| Connector Type D | Micro-D |
Key Features
- Features 15 contacts with gold-plated copper alloy for reliable conductivity.
- Right angle orientation with through hole mount type for secure PCB attachment.
- Operates at up to 600 volts and current rating of 1 amp.
- Constructed with robust liquid crystal polymer housing for durability.
- Wide operating temperature range from -40°C to 125°C for versatile industrial use.
- Micro-D connector type offers compact, high-density connection solution.
- Termination by solder for strong and stable connections.
- Designed for industrial automation, medical, and data communications applications.
Product Description
Molex 836129020 is a 15 Way Right Angle 1.27 mm Pitch Through Hole Micro-D Sub Connector Male designed for demanding high-density PCB mounting requiring robust electrical connectivity and compact size.
This connector features 15 gold-plated copper alloy contacts that provide excellent conductivity and corrosion resistance. Its right angle orientation and through hole mount type ensures secure mechanical retention on PCB assemblies.
Operating at a voltage rating of 600V and current rating of 1A, it is suitable for a wide array of industrial electronics and automation systems. The liquid crystal polymer housing adds mechanical strength and high temperature resistance with operating temperatures from -40°C to 125°C.
The Micro-D connector type offers four times the density of a standard D-Sub, providing efficient space savings on compact PCB designs. The solder termination facilitates reliable electrical and mechanical bonding.
This connector is widely used in medical, industrial automation, data communications, and commercial vehicle applications due to its rugged design and high performance. Features 15 contacts with gold-plated copper alloy for reliable conductivity.
Right angle orientation with through hole mounting for secure PCB connection. Supports 600 volts and 1 amp current rating for robust performance. Constructed from liquid crystal polymer housing for durability and temperature resistance.
Wide operating temperature range from -40°C to 125°C for varied industrial environments. Compact Micro-D design ideal for space-saving PCB layouts. Solder termination ensures strong and stable connections. Applicable in medical, industrial automation, and data communications sectors.
Manufactured in China with quality compliance.
This Micro-D Sub Connector is part of the Molex 83612 series, ideal for high-density PCB applications requiring rugged and reliable connectors. Explore similar connectors and components within the EnvMart electronics and power connectors category to find complete solutions for your industrial and electronic projects.
Explore more products in our D-Sub Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector operates at a voltage rating of 600 volts.
It has a current rating of 1 amp.
This model features solder termination for strong and stable connections.
It operates within a temperature range from -40°C to 125°C.
This connector has 15 contacts made of gold-plated copper alloy for reliable conductivity.
The housing is constructed from liquid crystal polymer, providing durability and high temperature resistance.
The pitch size is 1.27 mm.
It features a right angle orientation, which is suitable for secure PCB attachment.
Yes, it is designed for use in industrial automation, medical, and data communications applications.
This connector is manufactured in China.
This is a Micro-D connector type, offering a compact and high-density connection solution.
It uses a through hole mount type for secure PCB connection.
