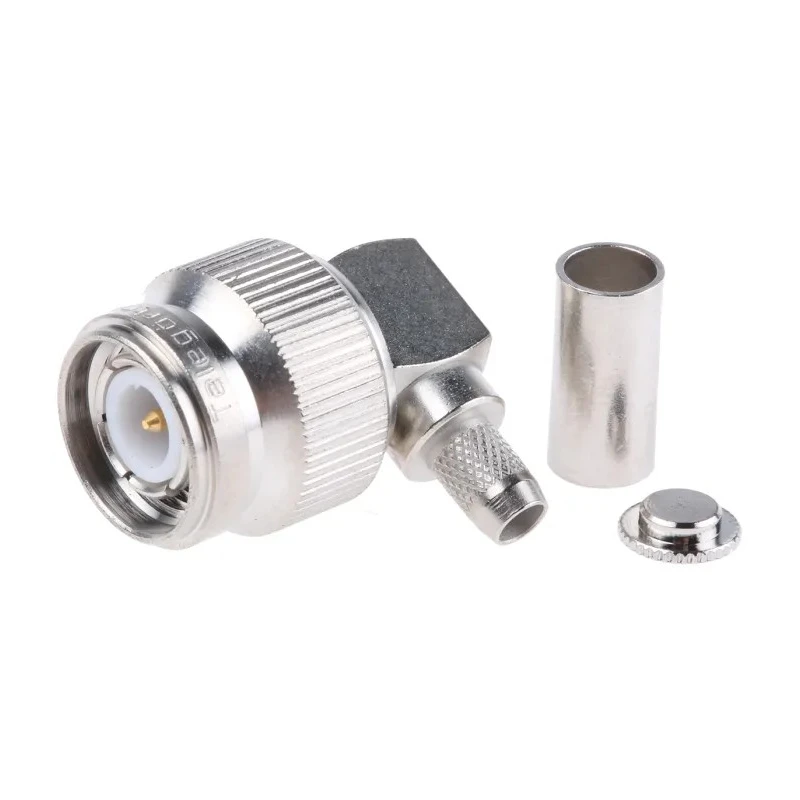

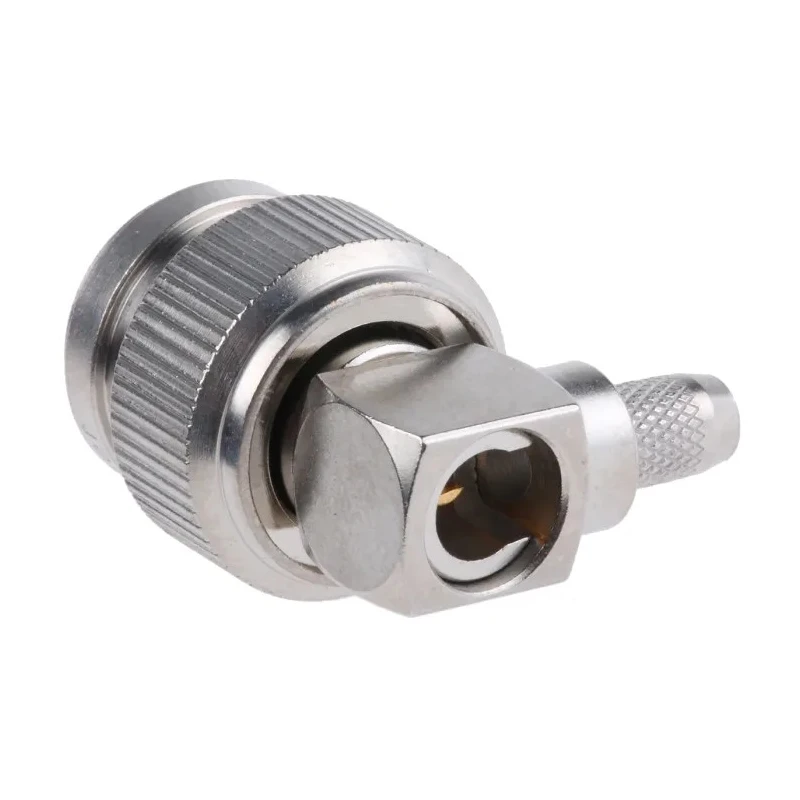

Telegartner TNC Series Coaxial Connector Cable Male TNC, 50 Ω, Right Angle Body Crimp J01010A0005
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Right Angle |
| Model | J01010A0005 |
| Mount Type | Cable |
| Operating Frequency | 11GHz |
| Contact Material | Beryllium Copper |
| Series | TNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG58C/U, RG141A/U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel over Copper |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | TNC |
| Body Plating | Nickel |
| Telegartner, Plug Cable Mount, 50Ω, Right Angle BodyBrand | Telegartner |
Key Features
- The connector features a nickel-plated brass body for durability and corrosion resistance.
- Beryllium copper contact material ensures excellent electrical conductivity and mechanical strength.
- Gold over nickel over copper contact plating enhances signal integrity and reduces oxidation.
- Compatible with RG58C/U and RG141A/U cable types.
- Operates reliably in temperatures ranging from -65°C to 165°C.
- Supports frequencies up to 11 GHz, suitable for high-frequency RF systems.
- The right angle orientation allows for convenient cable routing in tight spaces.
- Termination is by crimp method providing a secure and reliable connection.
Product Description
Telegartner J01010A0005 is a premium TNC series coaxial connector cable featuring a male TNC connector with a right angle body and crimp termination. This connector is engineered for RF applications requiring impedance consistency of 50 Ω and operation frequencies up to 11 GHz. The nickel plating on the brass body provides strong protection against corrosion and mechanical wear, making it suitable for demanding industrial and electronic environments.
The connector's contact is made from beryllium copper, known for its high strength and excellent electrical properties. The contact plating comprises gold over nickel over copper, enhancing durability and ensuring minimal signal loss.
This product is compatible specifically with RG58C/U and RG141A/U cables, commonly used in communications and signal transmission. Its right angle orientation facilitates efficient cable management in constrained installation areas. Designed for operating temperatures ranging from -65°C to 165°C, it withstands harsh environmental conditions.
The termination type is crimp, providing a secure and reliable mechanical and electrical connection that is essential for professional RF system assemblies. The connector features a nickel-plated brass body for durability and corrosion resistance.
Beryllium copper contact material ensures excellent electrical conductivity and mechanical strength. Gold over nickel over copper contact plating enhances signal integrity and reduces oxidation. Compatible with RG58C/U and RG141A/U cable types.
Operates reliably in temperatures ranging from -65°C to 165°C. Supports frequencies up to 11 GHz, suitable for high-frequency RF systems. The right angle orientation allows for convenient cable routing in tight spaces. Termination is by crimp method providing a secure and reliable connection.
Designed with normal polarity in the TNC series for interoperability. Ideal for use in industrial electronic components sectors, telecommunications, test and measurement devices, and other professional RF coaxial applications.
Enhance your RF connectivity solutions with this reliable Telegartner TNC Series Coaxial Connector cable. Explore more quality connectors in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this connector is 11 GHz, making it suitable for high-frequency RF systems.
This model is compatible with RG58C/U and RG141A/U cable types, commonly used in communications and signal transmission.
The termination type of this connector is crimp, providing a secure and reliable mechanical and electrical connection.
The contact material is made from beryllium copper, which is known for its high strength and excellent electrical properties.
This connector operates reliably in temperatures ranging from -65°C to 165°C, suitable for harsh environmental conditions.
The body of this connector is nickel-plated, providing protection against corrosion and mechanical wear.
This connector has an impedance rating of 50 Ω, which is essential for maintaining signal integrity in RF applications.
The connector features a right angle orientation, allowing for convenient cable routing in tight spaces.
This connector is a male connector, both in terms of contact gender and connector gender.
The connector is manufactured in Germany, ensuring adherence to high manufacturing standards.
The contact plating consists of gold over nickel over copper, which enhances durability and minimizes signal loss.
This connector belongs to the TNC series, designed for RF applications requiring impedance consistency.
