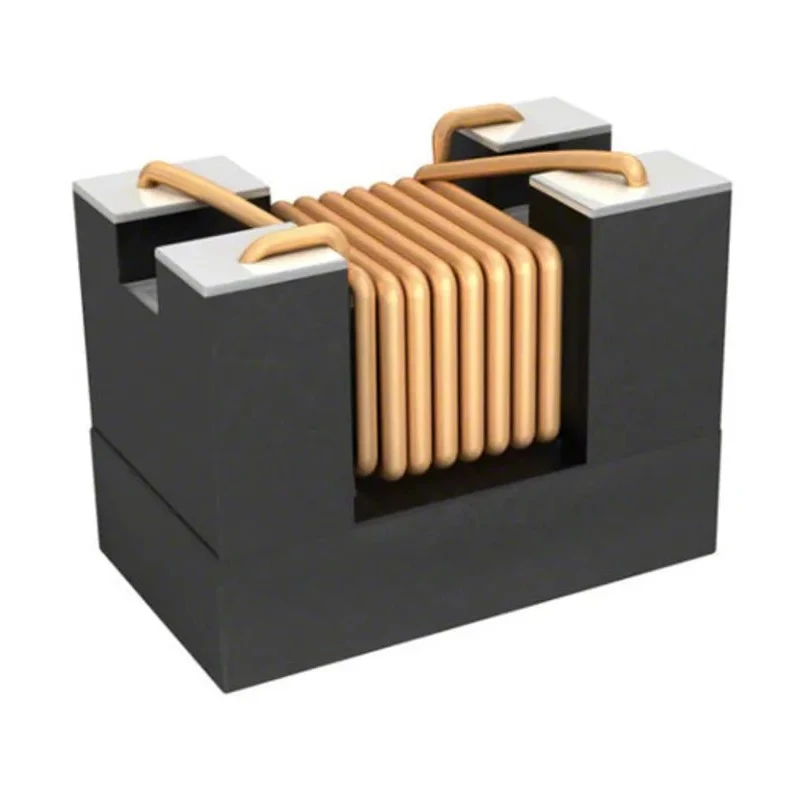

Wurth Elektronik WE-CNSW SMD 1206 Wirewound Surface Mount Inductor with Ferrite Core 0.11 μH Dual ±25% 370 mA Idc 744232090

Wurth Elektronik 744232090 is a 1206 wirewound surface mount inductor with a ferrite core, offering an inductance of 0.11 μH and dual coil construction. This high-quality inductor features a tolerance of ±25% and supports a maximum DC current of 370 mA. Its compact dimensions of 3.2 mm length, 1.8 mm height, and 1.6 mm depth enable space-saving PCB mounting in electronic power and signal circuits.

Designed for robust industrial and automotive applications, the inductor complies with the AEC-Q200 automotive standard and is RoHS and REACH compliant. It effectively suppresses common mode EMI noise at high frequencies, making it suitable for usage in USB 2.0, Firewire, LVDS, LAN, and other high-speed data communication lines.

This component comes in a tape and reel packaging format, optimized for automated assembly processes with recommended reflow soldering. The low DC resistance of 300 mΩ ensures minimal power loss and heat generation during operation within the −40°C to 125°C temperature range.

The dual coil winding provides balanced performance and minimal influence on high-speed signal integrity. The inductor’s ferrite core material maximizes magnetic efficiency, contributing to effective noise reduction.

This product is engineered for use in industrial, automotive, telecommunications, and electronics manufacturing sectors, offering reliable inductive performance in compact surface mount form factors.

Constructed with a ferrite core for enhanced magnetic properties. Compact 1206 surface mount package ideal for PCB applications. Maximum operating temperature of 125°C enables robust performance. Low DC resistance of 300 mΩ reduces power loss.

Automotive standard AEC-Q200 compliant for high reliability. Supports common mode noise suppression at high frequencies. Reflow soldering compatible for manufacturing efficiency. Dual coil inductor construction provides symmetrical winding performance.

Operating temperature range from -40°C to 125°C supports diverse environments. Explore more Surface Mount Inductors and electronic components at EnvMart for industrial and manufacturing needs.
