Schaffner 250V AC 2A Snap-in IEC Filter Male 2 Pole 2 Fuse Faston FN286-2-06

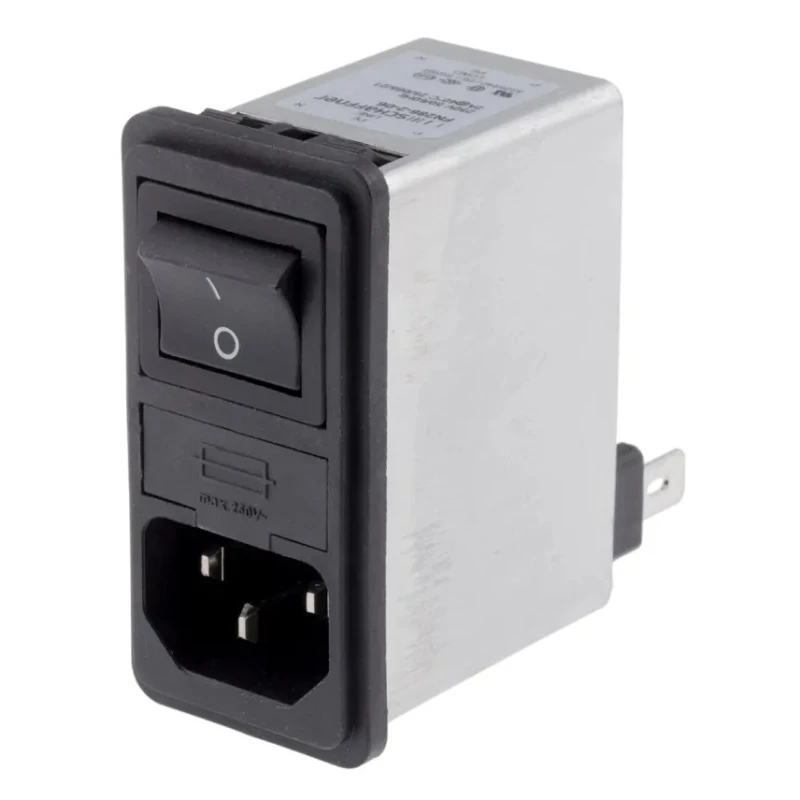

Schaffner FN286-2-06 is a high-performance IEC filter designed as a snap-in power entry module with a rated current of 2A at 250V AC. The module features a male 2 pole connector, two 5 x 20 mm fuse holders, and Faston termination for reliable and easy electrical connection. Its compact design integrates a rocker switch, IEC inlet, mains filter, and dual fuse holder, making it a practical component for various applications.

This IEC filter is engineered for excellent thermal behavior and superior high conducted attenuation performance, aiding in rapid EMI system approval. The switch operates at frequencies ranging from 50 Hz to 400 Hz, suitable for a broad range of electronic and electrical equipment.

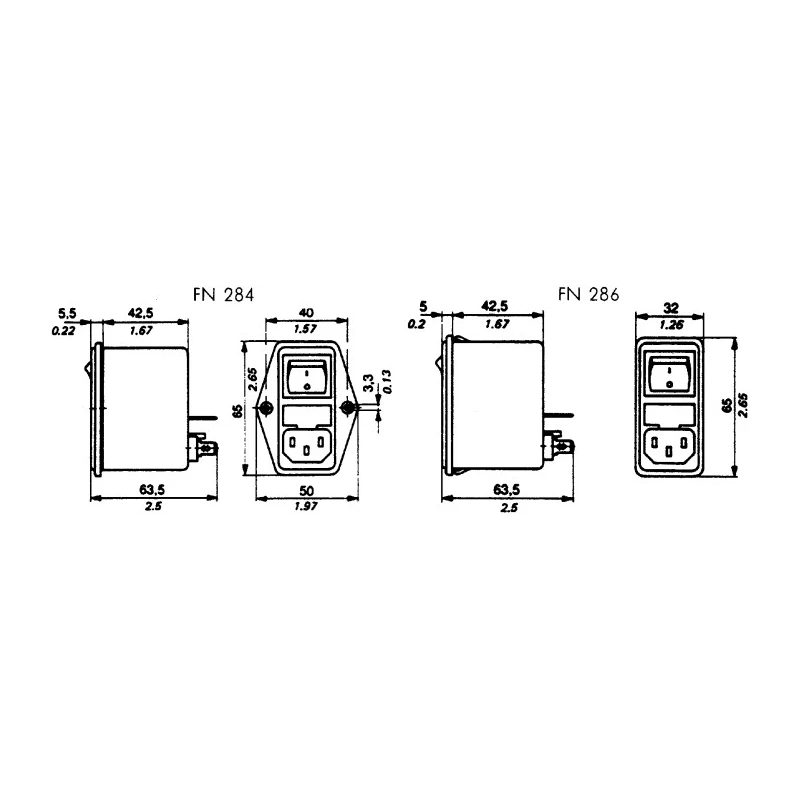

The operating temperature spans from -25°C to 85°C ensuring durability in diverse environments. Dimensions include a depth of 65.3 mm, height of 65 mm, and width of 32 mm, providing a compact footprint.

The Schaffner FN286-2-06 is ideal for portable electrical and electronic devices, medical and test equipment, consumer electronics, and single-phase power supplies including switch-mode power supplies. Its robust design includes a mechanical life expectancy of 50,000 cycles, confirming longevity and steady performance in industrial and commercial applications.

Compact 2 pole rocker switch integrated in the power entry module. Excellent thermal behavior and high attenuation against conducted interference. Supports multiple industrial uses including medical, laboratory, consumer, and test equipment.

High saturation resistance suitable for demanding environments. Facilitates compliance with EMI and safety standards for power electronics.

Schaffner's vast experience and product portfolio include power quality filters and EMI filters widely used in electrical infrastructure, machine tools, robotics, and automotive systems. The FN286-2-06 is a tested and reliable solution for filtering mains borne interference where simple capacitors are insufficient.

Available globally, this IEC Filter module supports manufacturers and engineers in meeting stringent electrical and EMI standards efficiently. EnvMart offers this component for industrial, laboratory, HVAC, and manufacturing applications where high quality and reliability are paramount.
