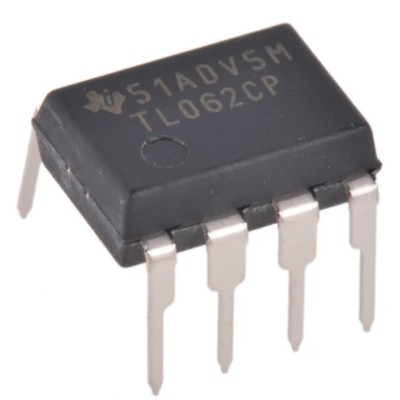

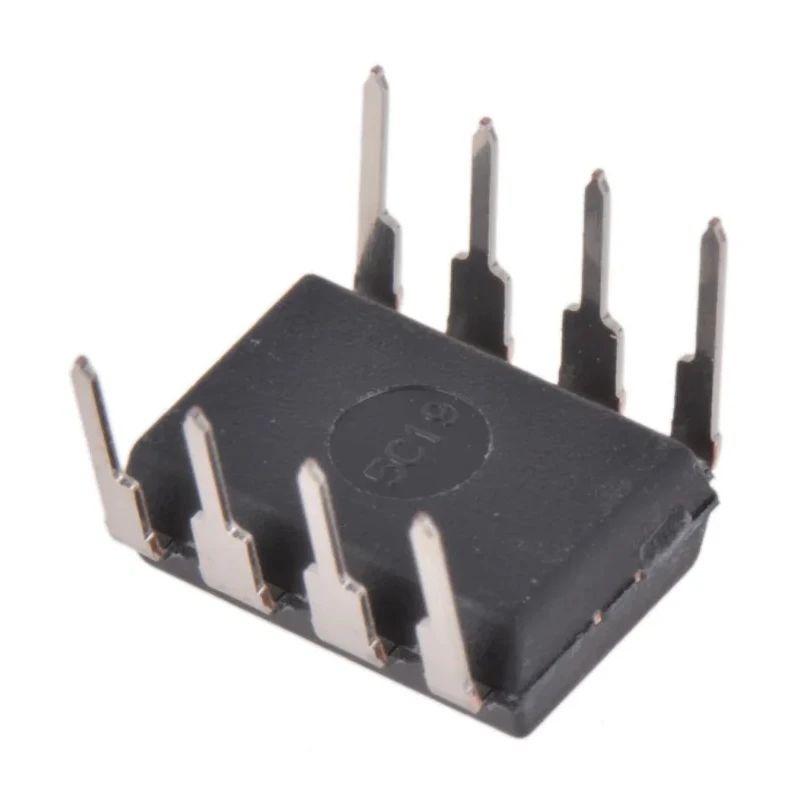

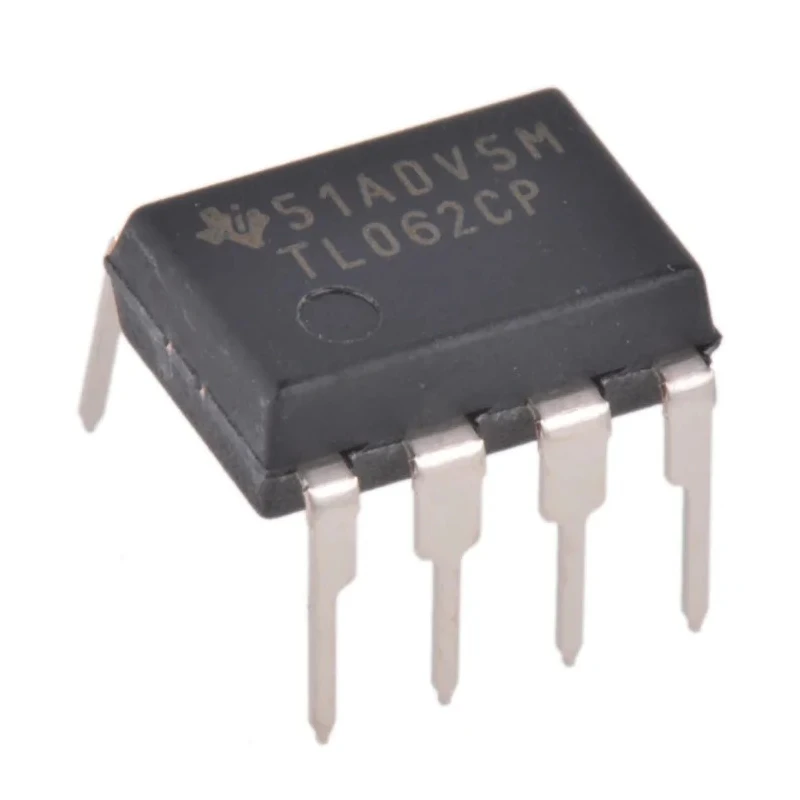

Texas Instruments Operational Amplifier 1 MHz Gain Bandwidth, 8-Pin Through Hole PDIP TL062CP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | TL062CP |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | TL062 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 10 nA |
| Vos - Input Offset Voltage | 20 mV |
| Slew Rate | 3.5V/μs |
| Input Offset Current | 5 nA |
Key Features
- Low-power JFET-input operational amplifier with reduced power consumption.
- Through hole mounting with PDIP package suitable for easy PCB installation.
- Operates from 5V minimum up to 15V maximum supply voltage.
- Input bias current of 10 nA and input offset current of 5 nA ensures precision performance.
- Slew rate of 3.5 V/μs allows for fast signal response in analog circuits.
- Operating temperature range from 0°C to 70°C for reliable industrial applications.
- Designed as part of the TL060 family, ideal for power-sensitive and precision amplifier tasks.
Product Description
The Texas Instruments TL062CP operational amplifier provides a 1 MHz gain bandwidth product with dual channels in a compact 8-pin PDIP through-hole package. This JFET-input amplifier excels with its low power consumption compared to traditional TL080 series, making it suitable for precision signal amplification in electronic circuits requiring efficient performance.
Designed to operate across a supply voltage range from 5V to 15V, the TL062CP ensures flexibility for various industrial, laboratory, and commercial electronics applications. It supports a slew rate of 3.5 V/μs which guarantees rapid response to input signal changes, enhancing the amplifier's effectiveness in instrumentation and control systems.
The device features low input bias current and offset currents at 10 nA and 5 nA respectively, providing precise analog signal processing ideal for sensitive measurement and amplification tasks. Its operational temperature withstands from 0°C to 70°C, supporting robust stability even in demanding environments.
Physically, the TL062CP is packaged in an industry-standard PDIP form factor measuring 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height, facilitating easy mounting and integration into printed circuit boards with through-hole techniques.
Low power consumption JFET input design suitable for portable devices. Wide operating voltage range from 5V to 15V enhances circuit compatibility. High slew rate for improved amplifier speed and signal fidelity. Precise input parameters enable effective amplification in sensor and instrumentation circuits.
Compact PDIP 8-pin package simplifies manufacturing and repair.
This operational amplifier is commonly employed across industrial electronics, laboratory instrumentation, signal processing, and automation control systems. Its combination of low power, high precision, and flexible packaging makes it a reliable choice for diverse engineering challenges.
Explore more Operational Amplifiers and semiconductor components at EnvMart for quality electronic component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TL062CP operational amplifier has a gain bandwidth product of 1 MHz.
It operates across a supply voltage range from 5V to 15V.
The input bias current is 10 nA, ensuring precision in signal processing.
The slew rate of the TL062CP is 3.5 V/μs, allowing for fast signal response.
This model measures 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height.
The TL062CP features dual channels, making it suitable for various applications.
The input offset current is 5 nA, contributing to its precision performance.
The operational temperature range is from 0°C to 70°C, suitable for industrial applications.
It is packaged in an 8-pin PDIP format, designed for through-hole mounting.
The input offset voltage is 20 mV, which is important for precision applications.
This operational amplifier is part of the TL060 series.
The TL062CP operational amplifier is manufactured in India.
