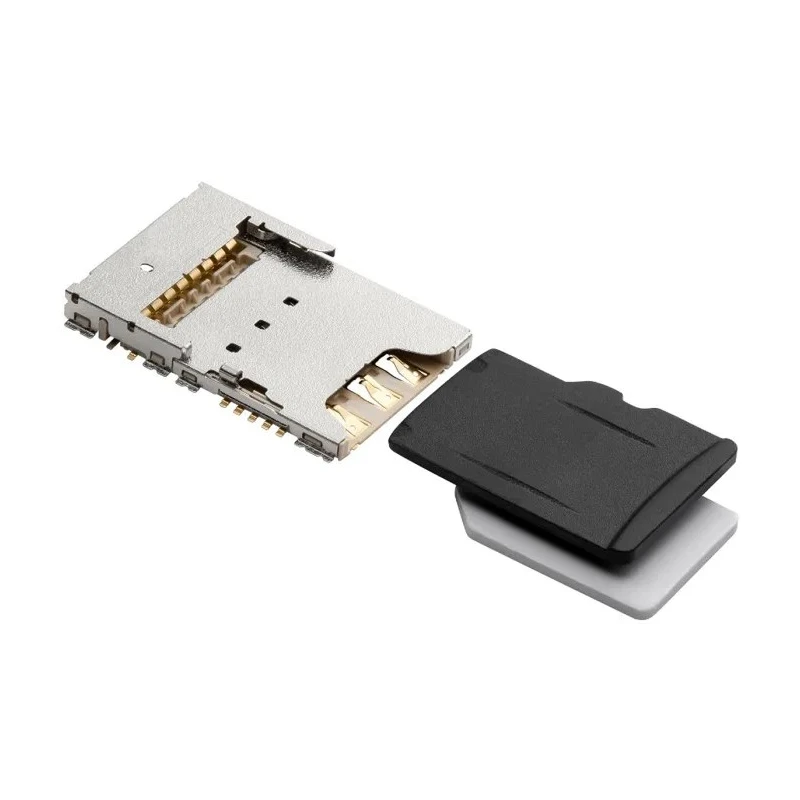

Molex 6 Way Push Pull Nano SIM MicroSD Memory Card Connector, Surface Mount, Solder 104239-1430
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Gender | Female |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | 104239 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 6 |
| Card Type | Nano SIM, MicroSD |
| Insertion/Removal Method | Push Pull |
Key Features
- Supports Nano SIM and MicroSD card types in a single connector unit.
- Features 6 gold-over-nickel plated copper alloy contacts for excellent conductivity and corrosion resistance.
- Push-pull insertion/removal method with pull-lever for reduced downtime and easy card removal.
- Compact dimensions of 12.2 x 2.05 x 17.9 mm enable space-saving on printed circuit boards.
- Surface mount solder termination ensures secure PCB attachment.
- Liquid crystal polymer housing provides high temperature and chemical resistance.
- Operational temperature range from -40°C to +85°C for reliable performance in demanding applications.
- Polarized ports prevent incorrect card insertion and protect the connector.
Product Description
The Molex 104239-1430 is a 6 Way Push Pull Nano SIM MicroSD Memory Card Connector designed for use in mobile equipment and computing applications. This surface mount connector provides a space-saving stacking design to accommodate both Nano SIM and MicroSD cards within a single unit, enhancing PCB layout flexibility in compact electronic devices.
With precise dimensions of 12.2 mm length, 2.05 mm width, and 17.9 mm depth, this connector is ideal for boards where minimal footprint is critical. The push-pull mechanism with a pull lever allows easy card ejection without powering down the device, thereby improving operational efficiency and reducing downtime.
The connector features 6 contacts made from copper alloy with gold plating over nickel, ensuring excellent electrical conductivity and durability against corrosion. The liquid crystal polymer housing offers resistance to high temperatures and harsh chemicals, supporting reliable use in various industrial and commercial electronics contexts.
Additional features include polarized connector ports to prevent damage from incorrect card insertion, anti-stubbing contacts for smooth card movement, and hold-down posts for secure surface mounting on printed circuit boards.
This memory card connector operates across a broad temperature range from -40°C to +85°C, making it suitable for demanding environments such as telecommunications, consumer electronics, and embedded computing systems.
Supports simultaneous mounting of Nano SIM and MicroSD cards in one connector. Stacked design optimizes PCB space with a low profile height of 2.05 mm. Pull-lever ejection mechanism for easy card removal while device remains powered.
Gold-over-nickel plated copper alloy contacts ensure reliable signal transmission. Liquid crystal polymer housing enhances durability and chemical resistance. Polarization and anti-stubbing features protect against card and connector damage.
Surface mount solder termination aids secure installation and mechanical stability. Operating temperature from -40°C to +85°C accommodates harsh usage conditions.
This Molex 104239 series connector is an excellent choice for manufacturers and designers of mobile devices and embedded computing equipment seeking compact, robust, and reliable dual memory card connector solutions. Browse more Memory Card Connectors and Molex brand products at EnvMart for industrial electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports both Nano SIM and MicroSD card types within a single connector unit.
The operational temperature range is from -40°C to +85°C, making it suitable for demanding applications.
The dimensions are 12.2 mm in length, 2.05 mm in width, and 17.9 mm in depth.
This connector features 6 contacts made from copper alloy with gold plating over nickel.
It utilizes a surface mount solder termination for secure attachment to printed circuit boards.
The housing is made of liquid crystal polymer, which provides high temperature and chemical resistance.
It features a push-pull mechanism with a pull lever, allowing for easy card ejection without powering down the device.
The pitch of this connector is 2.54 mm.
Yes, it has polarized ports to prevent incorrect card insertion and protect the connector.
The connector is female and has a straight orientation.
It is designed for use in mobile equipment and computing applications, particularly in compact electronic devices.
The country of origin for this connector is Korea.
