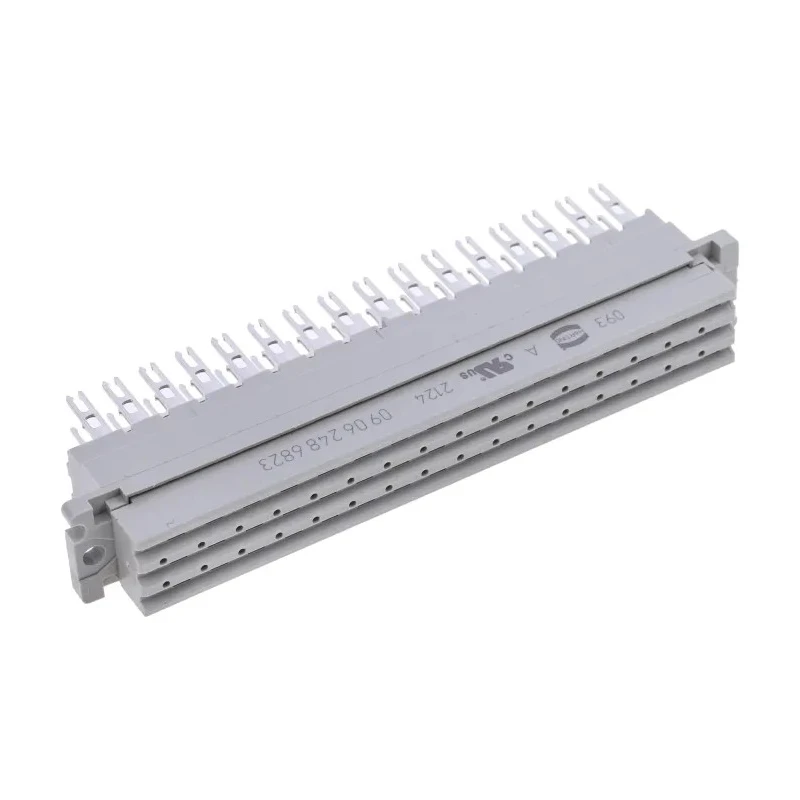

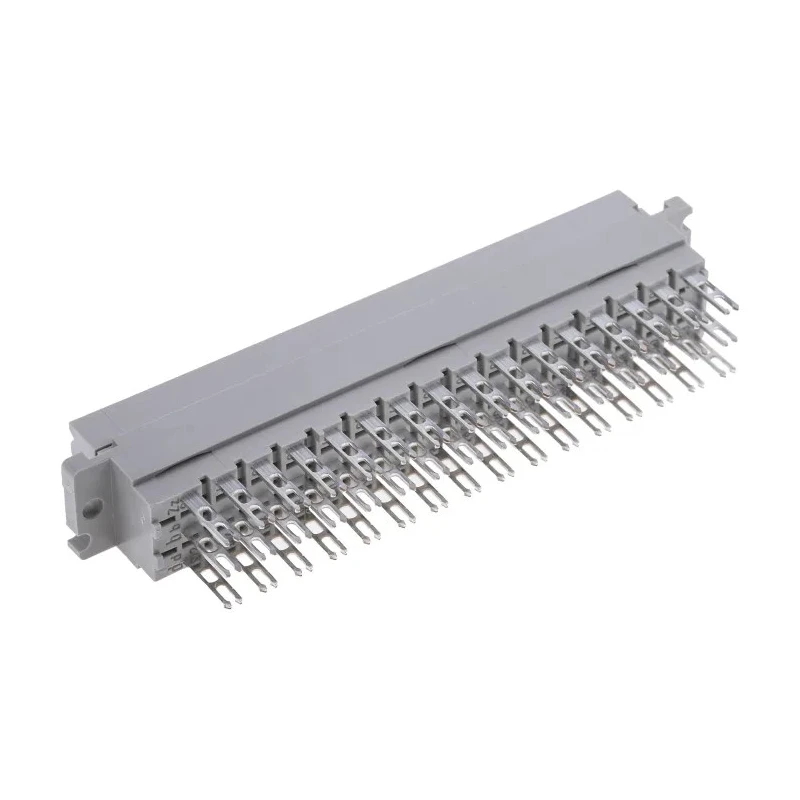

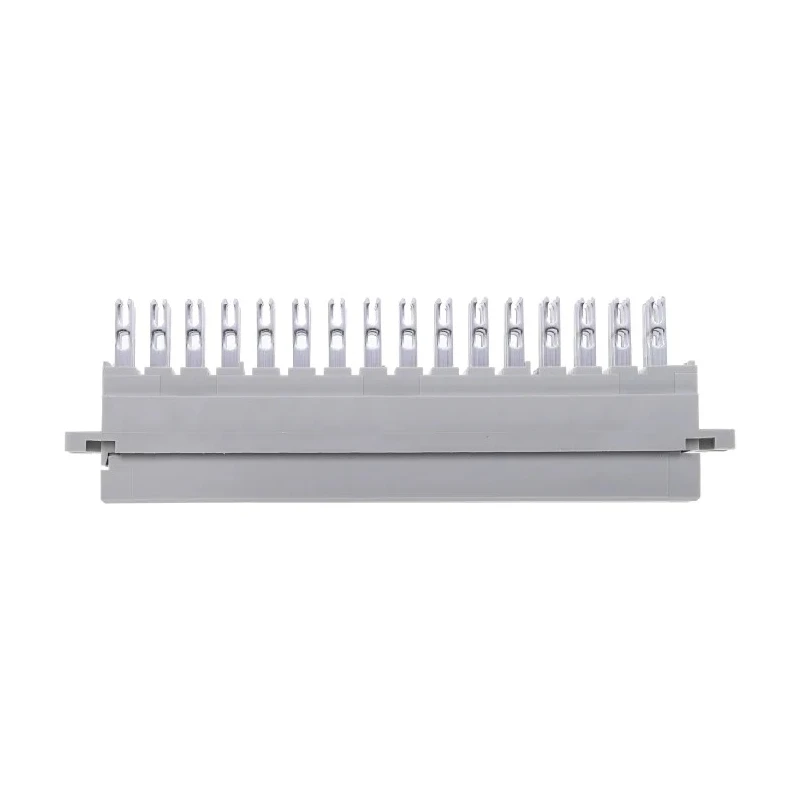

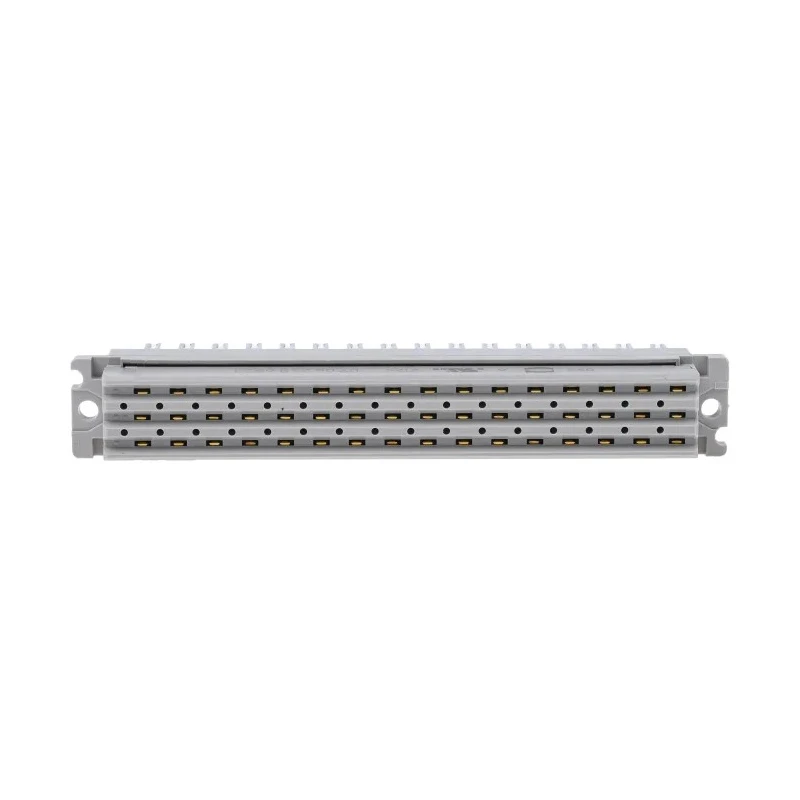

HARTING DIN 41612 48 Way 5.08 mm Pitch Type C/2 3 Row Female Straight Solder Class C2 Connector 09062486823
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 6A |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 5.08mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 48 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 15mΩ |
| Row Loading | B, D, Z |
Key Features
- Features 48 contacts with a 5.08 mm pitch for efficient connectivity.
- Three rows of female contacts ensure high-density connections.
- Solder termination type provides secure and durable contact.
- Gold over nickel plating enhances corrosion resistance and conductivity.
- Operates reliably in temperatures ranging from -55°C to 125°C.
- Supports current up to 6 A per contact for high performance.
- Constructed with copper alloy contacts and polybutylene terephthalate housing for durability.
- Maximum contact resistance is 15 milliohms ensuring signal integrity.
Product Description
HARTING 09062486823 DIN 41612 Connector is a high-quality 48-way, 5.08 mm pitch, Type C/2 connector featuring a 3-row female straight solder termination designed for robust board-to-board and cable-to-board connections in industrial and electronic applications.
This connector supports a maximum current of 6 A per contact and operates efficiently within a temperature range of -55°C to 125°C, making it suitable for challenging environments such as railway transportation and power supplies.
Contacts are plated with gold over nickel to ensure excellent conductivity and resistance to corrosion, while the housing is made from durable polybutylene terephthalate, providing mechanical strength and thermal stability.
The connector is assembled with copper alloy contacts and features a maximum contact resistance of 15 milliohms to maintain signal integrity and minimize power loss.
Featuring a straight orientation with row loading B, D, and Z, the connector supports versatile wiring configurations, ideal for control cards, power supply units, and high-reliability backplane connections.
48 contacts with 5.08 mm pitch for compact, efficient interconnect solutions. Type C/2 solder termination ensures reliable and robust contact connections. Gold plating prevents corrosion and enhances conductivity. Wide operating temperature range from -55°C to +125°C for industrial applications.
Polybutylene terephthalate housing offers durability and thermal resistance. Maximum current rating of 6 A supports demanding electrical loads. Low contact resistance of 15 milliohms ensures signal quality. Three-row female design for high contact density.
Manufactured in Germany, conforming to high standards of quality.
This DIN 41612 Connector series from HARTING is highly regarded for industrial, railway, manufacturing, and power distribution applications requiring dependable electrical connections with high mechanical and thermal endurance.
Explore EnvMart's Electronics Components category for compatible connectors, accessories, and related industrial hardware.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a maximum current of 6 A per contact, making it suitable for demanding electrical loads.
It operates reliably within a temperature range of -55°C to 125°C, suitable for various industrial applications.
The connector features 48 contacts, designed for high-density connections.
It uses a solder termination type, providing secure and durable contact connections.
The contacts are made from copper alloy, while the housing is constructed from polybutylene terephthalate.
The maximum contact resistance is 15 milliohms, ensuring good signal integrity.
This connector has a straight orientation, which is suitable for various wiring configurations.
The contacts are plated with gold over nickel, enhancing corrosion resistance and conductivity.
This connector is manufactured in Germany, adhering to high standards of quality.
The pitch size of the contacts is 5.08 mm, allowing for efficient connectivity.
The connector supports row loading configurations B, D, and Z, providing versatility in applications.
It is suitable for industrial and electronic applications, including railway transportation and power supplies.
