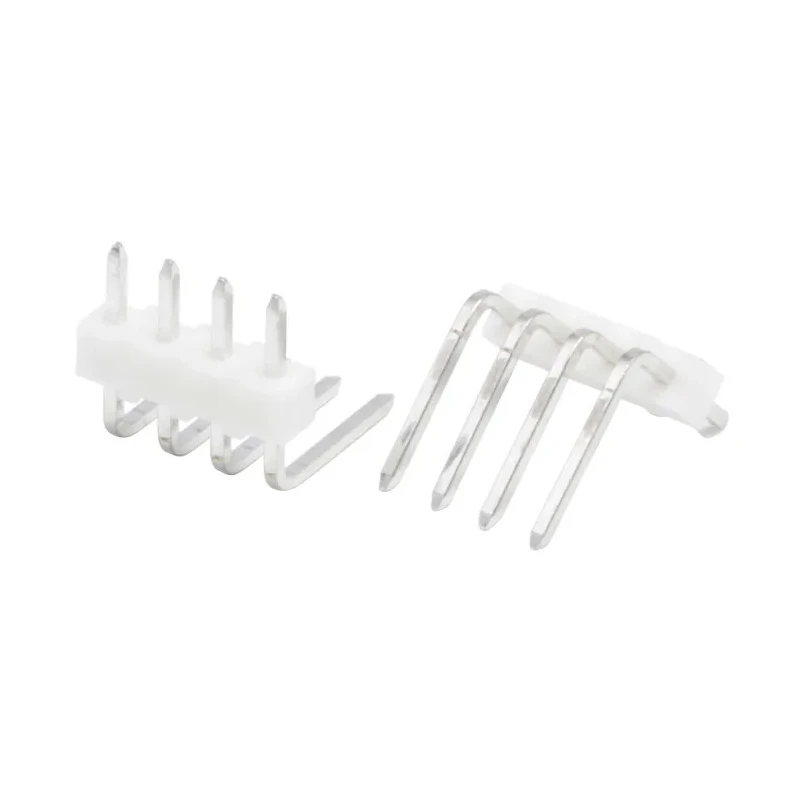

Molex KK 254 Series Right Angle Through Hole Pin Header 4 Contacts 2.54 mm Pitch Unshrouded 22-05-2041
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 4A |
| Mount Type | Through Hole |
| Contact Material | Brass |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Mating Pin Length | 2.54mm |
Key Features
- Features 4 brass contacts with tin plating for reliable electrical connection.
- Right angle orientation ensures compact PCB layout and easy wire connection.
- Designed for through-hole mounting to provide a secure mechanical and electrical connection.
- Rated for 4A current and 250V voltage suitable for diverse electronic applications.
- Wide operating temperature range from -40°C to 105°C for industrial environments.
- Contact gender is male with a mating pin length of 2.54 mm for standard PCB headers.
- Series KK 254 provides compatibility with board-to-board and wire-to-board connector systems.
- Unshrouded configuration allows for easy visual inspection and soldering.
Product Description
Molex 22-05-2041 KK 254 Series Right Angle Through Hole Pin Header is a high-quality PCB connector featuring 4 brass contacts plated with tin. This unshrouded male header has a pitch and mating pin length of 2.54 mm, making it compatible with standard PCB designs requiring a right angle orientation.
Designed for through-hole mounting, this pin header delivers a reliable connection for board-to-board and wire-to-board applications. Rated for 4 Amperes and 250 Volts, it is suitable for industrial, electronic manufacturing, and prototyping environments.
The header supports a wide operating temperature range from -40°C to 105°C, ensuring stable performance in harsh conditions. Its unshrouded configuration permits easy inspection and soldering during assembly. The KK 254 Series ensures stackability side to side and end to end, enhancing design flexibility.
This product is manufactured in Mexico and meets standard design requirements for durability and electrical performance, though it lacks specific UL or CSA approvals listed. Features 4 brass contacts with tin plating for reliable electrical connection.
Right angle orientation ensures compact PCB layout and easy wire connection. Designed for through-hole mounting to provide a secure mechanical and electrical connection. Rated for 4A current and 250V voltage suitable for diverse electronic applications.
Wide operating temperature range from -40°C to 105°C for industrial environments. Contact gender is male with a mating pin length of 2.54 mm for standard PCB headers. Series KK 254 provides compatibility with board-to-board and wire-to-board connector systems.
Unshrouded configuration allows for easy visual inspection and soldering.
This Molex KK 254 Series pin header is ideal for industrial electronics, manufacturing, prototyping, and repair. Browse our PCB Headers category for a variety of compatible components to meet your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for 250V, making it suitable for various electronic applications.
The pitch of the contacts is 2.54 mm, which is standard for PCB designs.
It operates within a wide temperature range from -40°C to 105°C, suitable for industrial environments.
This model features 4 brass contacts, providing reliable electrical connections.
It is designed for through-hole mounting, ensuring a secure mechanical and electrical connection.
The contact gender is male, which is standard for this type of connector.
The termination type is solder, which is typical for PCB connections.
It features an unshrouded configuration, allowing for easy visual inspection and soldering during assembly.
This product is manufactured in Mexico, adhering to standard design requirements.
The contacts are made of brass and are plated with tin for reliable electrical connection.
