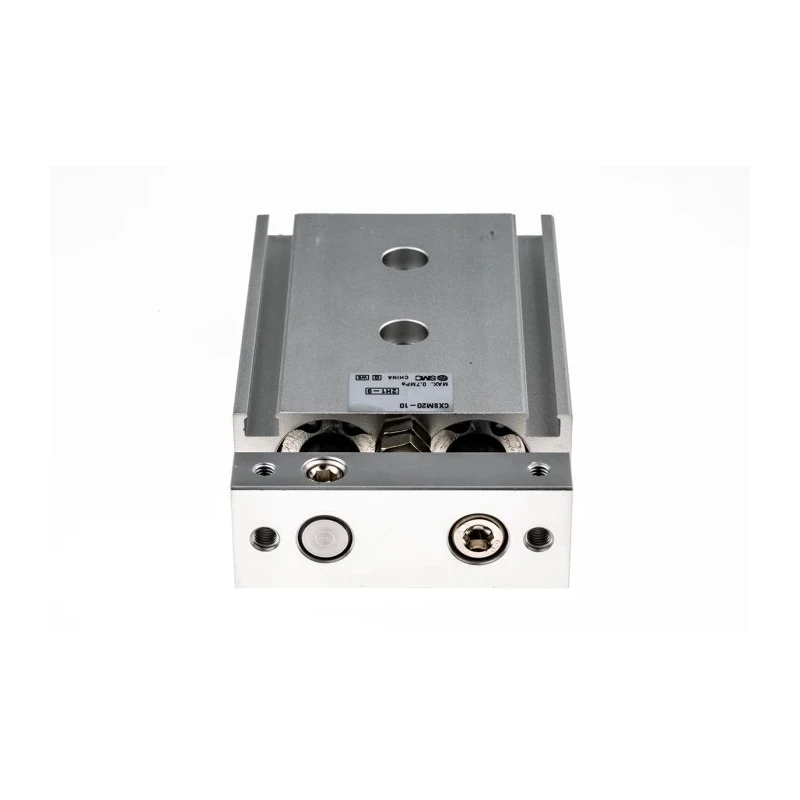

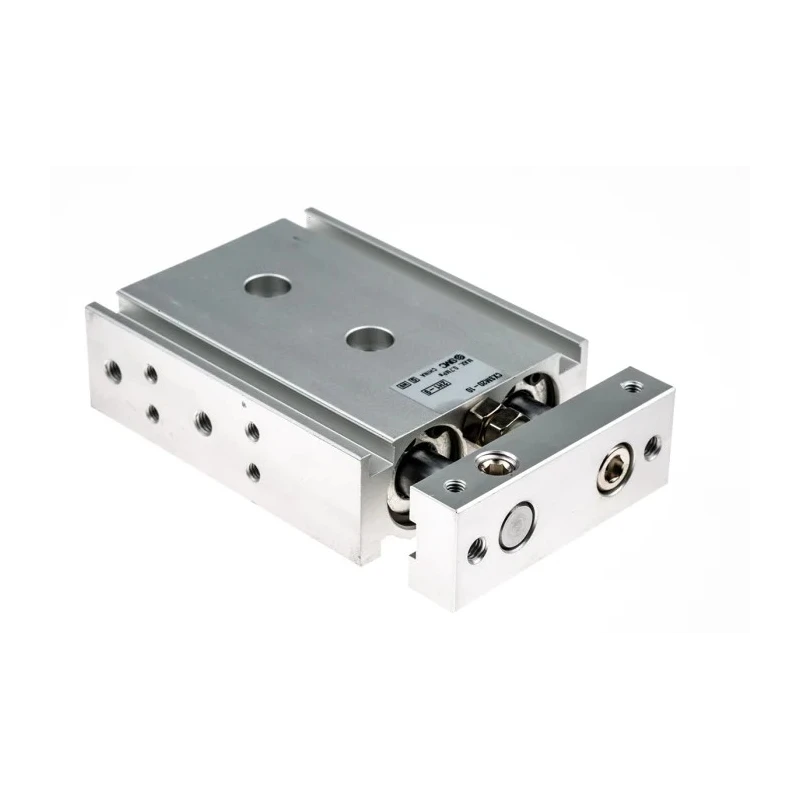

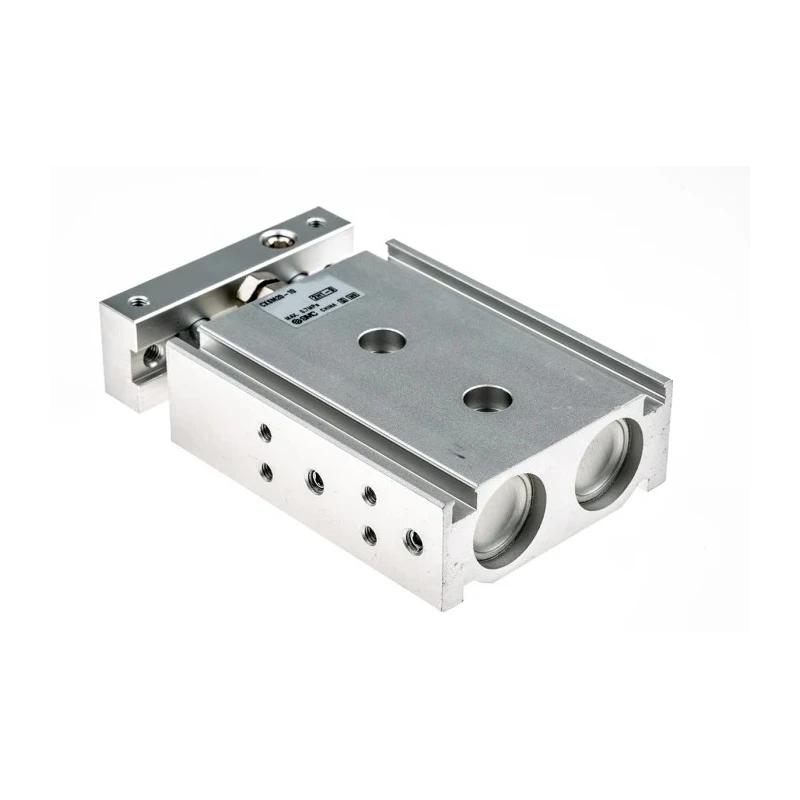

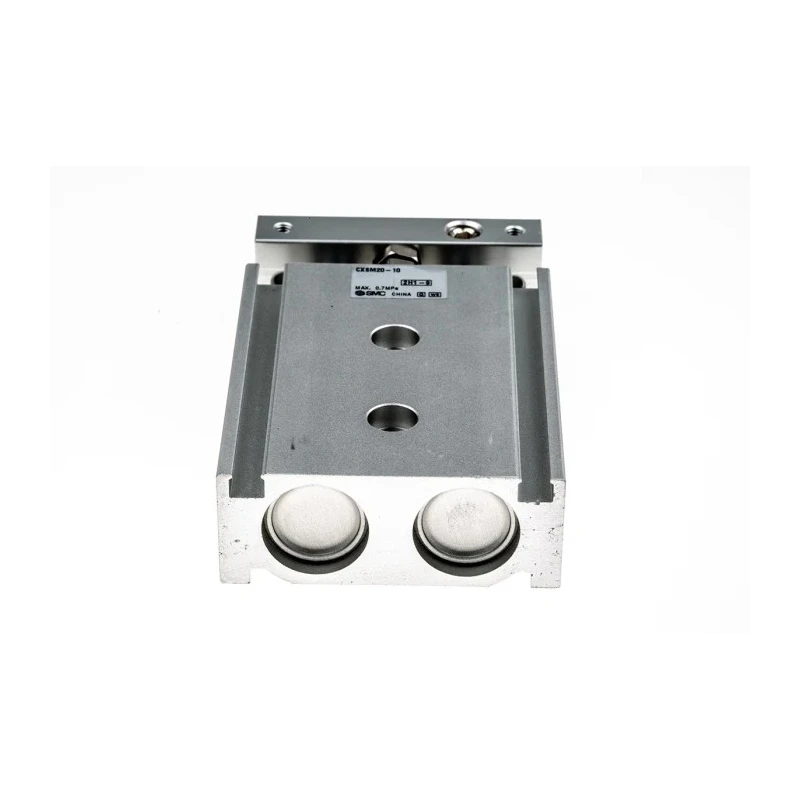

SMC Pneumatic Guided Cylinder 20mm Bore, CXSM Series, Linear Action, Surface Mount, 0.7 Mpa Max Pressure, 10mm CXSM20-10

SMC CXSM20-10 is a pneumatic guided cylinder with a 20mm bore diameter and 10mm stroke length designed for precise linear actuation in industrial pneumatics applications. This CXSM series cylinder incorporates a dual rod construction which guarantees high non-rotational accuracy critical for pick-and-place and positioning tasks. It uses a combination of slide bearings and ball bearings as guides, ensuring minimal friction and smooth movement.

The surface mount type facilitates straightforward mounting and integration into various mechanical systems. It can withstand a maximum operating pressure of 0.7 Mpa and piston speeds up to 300mm/s, making it suitable for moderate-speed automation processes. Rubber cushioning provides shock absorption and reduces mechanical wear over time.

Operating temperature range from -10°C to 60°C allows use in diverse environmental conditions commonly found in manufacturing, laboratory, and HVAC industrial sectors. Compliance with JISC0920 and IEC IP67 standards ensure durability against dust and water ingress, important for reliable long-term use.

The compact dimensions (104mm length, 64mm height, 25mm width) make it ideal for installation where space is limited. The cylinder also includes integral stroke adjustment adjustable to stroke minus 5mm and is designed with recesses for fitting magnetic auto switches for position feedback.

Dual rod design offers enhanced stability and rotational resistance. Slide and ball bearing guides reduce wear and improve motion smoothness. Maximum operating pressure of 0.7 Mpa suitable for pneumatic applications. Rubber cushioning buffers shocks at stroke ends.

Wide temperature operating range from -10°C to 60°C. Complies with JISC0920 and IEC IP67 standards for quality assurance. Standard surface mount type simplifies fitting and setup. Compact size for easy integration in tight spaces.

Includes adjustable stroke and magnetic sensing compatibility.

This pneumatic guided cylinder from SMC is appropriate for a variety of industrial applications including manufacturing automation, laboratory instrumentation, fluid power systems, HVAC actuators, and general mechanical machinery. Its precision and robust design improve system reliability and process efficiency. For further exploration of pneumatic actuator and guided cylinder options, browsing the EnvMart category for Pneumatic Guided Cylinders is recommended.
