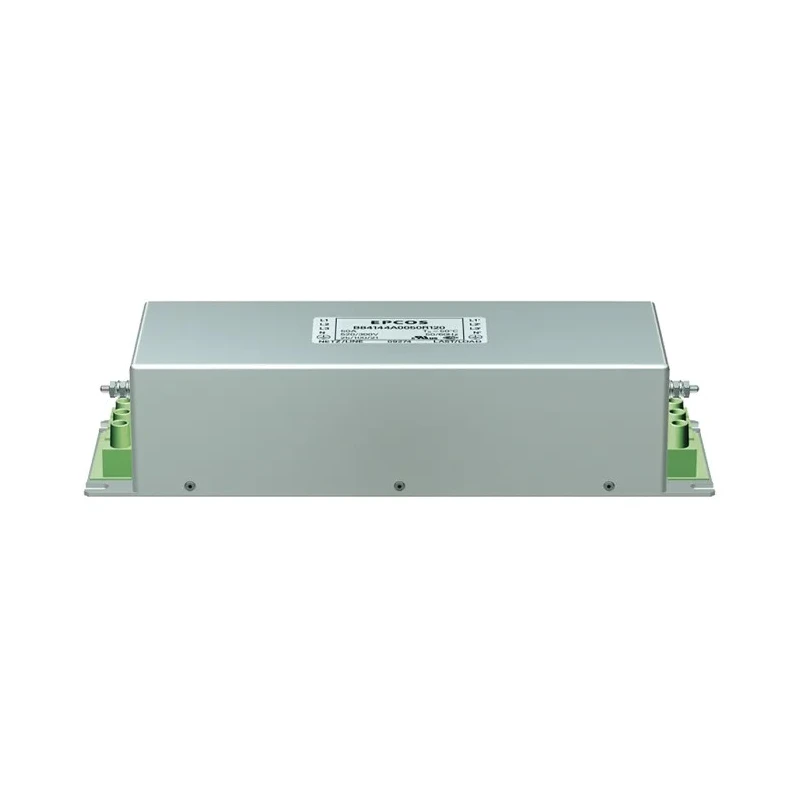

TDK 120 A 520V AC 50Hz, 60 Hz Flange Mount 3 Phase Screw Termination EMC Filter B84144A0120R120

TDK B84144A0120R120 EMC Filter is a robust and easy-to-install 3 phase power line filter designed for industrial electronic applications. It features a flange mount and screw termination style, delivering reliable electromagnetic interference (EMI) suppression for systems operating at 120A maximum current and 520V AC voltage. This filter supports dual operating frequencies of 50Hz and 60Hz, making it compatible with various regional power standards.

The filter is housed in a metal enclosure and potted in polyurethane material rated UL 94 V-0, providing excellent protection and durability for demanding industrial environments. Its single-stage construction and optimized electrical characteristics make it particularly effective for use with long motor cables, ensuring stable operation under full load conditions.

Typical applications include frequency converters for motor drives commonly found in elevators, pumps, conveyor systems, and HVAC equipment. The product operates reliably in ambient temperatures ranging from -25°C to 100°C, with a minimal leakage current of just 13mA to maximize energy efficiency and EMI compliance.

Compliance with international standards such as EN 133200, UL 1283, and CSA C22.2 No.8 reflects TDK's commitment to safety and quality. The filter's resistance is rated at 470Ω, contributing to its performance in mitigating conducted and radiated emissions in electrical systems.

Manufactured in Hungary, this filter meets stringent quality controls typical for TDK products. Its durable construction and reliable performance make it well suited for various industrial, manufacturing, and commercial electrical equipment requiring EMI filtering.

The filter features a screw termination style and a single stage design. It is housed in a metal case potted with polyurethane for durability and safety. Optimized for long motor cable operation under full load conditions.

Designed for applications including frequency converters for motor drives such as elevators, pumps, conveyors, and HVAC systems. Operating temperature ranges from -25°C minimum to 100°C maximum. Leakage current is low at 13mA, ensuring efficient EMI suppression.

Complies with standards EN 133200, UL 1283, and CSA C22.2 No.8. Product origin is Hungary.

This product is a key choice for engineers and technicians in electronic component sourcing, industrial automation, and power supply design, providing dependable EMI solutions. Browse more Power Line Filters and EMC filter options at EnvMart for a variety of industrial applications.
