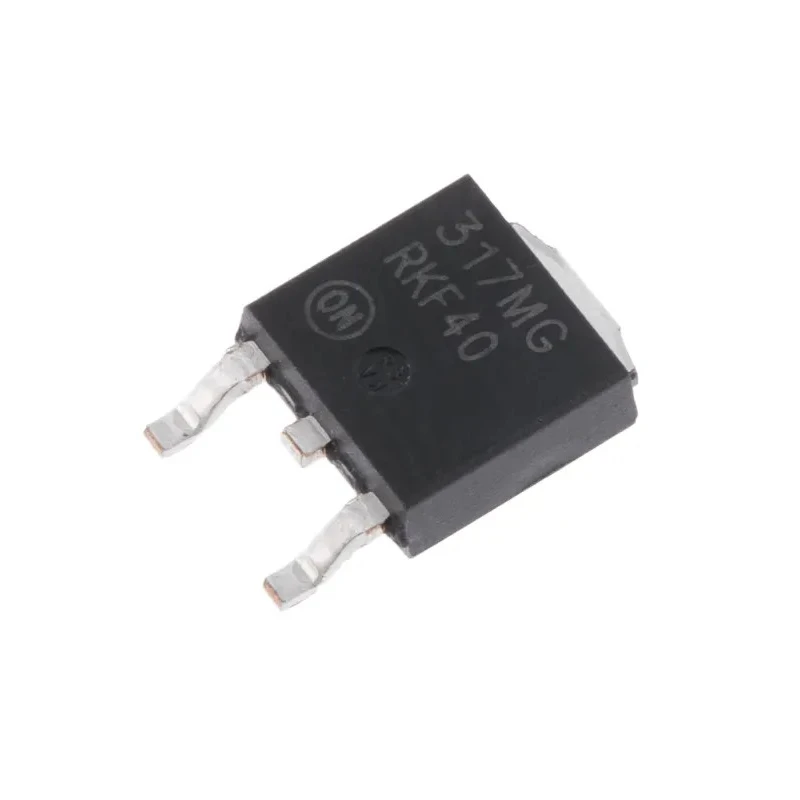

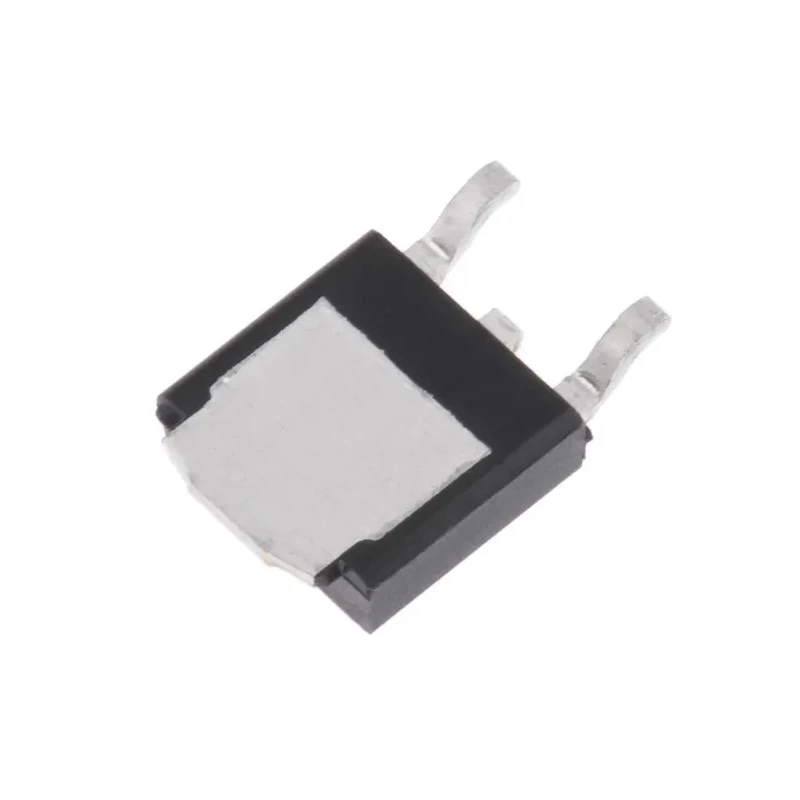

onsemi Adjustable Linear Voltage Regulator 1.25-37 V 1.5 A Surface Mount 3-Pin LM317MDTG
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | Regulators onsemi LM317MDTG, Voltage Regulator 40V 3-Pin RS Stock No |
| Brand | onsemi |
| Height | 2.38mm |
| Length | 6.73mm |
| Model | LM317MDTG |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | LM317 |
| Output Current | 1.5 A |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 40V |
| Quiescent Current | 3.5mA |
| Output Voltage Range | 1.25 V to 37 V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Offers adjustable output voltage between 1.25 V and 37 V ensuring flexible power management.
- Delivers up to 1.5 A output current suitable for various medium power applications.
- Features 3-pin surface mount design for easy PCB integration and space-saving.
- Includes short circuit current limiting, thermal protection, and safe-area compensation for reliable operation.
- Supports floating operation for high-voltage application versatility.
- Maximum operating temperature of 125°C ensures durability in demanding environments.
- Complies with automotive standard AEC-Q100 ensuring quality and robustness.
- Compact dimensions of 6.73 mm length, 6.22 mm width, and 2.38 mm height.
Product Description
onsemi LM317MDTG voltage regulator is a versatile adjustable linear regulator in a compact 3-pin surface mount package designed for efficient power management solutions in industrial and automotive applications. It provides an output voltage range of 1.25 V to 37 V and can supply output currents up to 1.5 A, making it suitable for various medium power electronics requiring stable voltage supply with high reliability.
The device incorporates essential protective features including thermal shutdown, short circuit current limiting, and safe-area compensation, ensuring dependable operation under adverse conditions and safeguarding connected circuits. Its floating operation capability further extends its usability in high-voltage scenarios.
With a maximum operating temperature of 125°C and conformity to the rigorous automotive standard AEC-Q100, the LM317MDTG is engineered to meet the challenging requirements of automotive and industrial environments. The regulator’s compact dimensions and surface-mount configuration make it ideal for space-constrained PCB layouts without sacrificing performance.
This voltage regulator is well-suited for applications such as on-card voltage regulation, programmable output regulators, and precision current regulators by using an external resistor between the adjustment and output pins. Its positive polarity and low quiescent current optimize energy efficiency in battery-powered and low-power circuits.
Adjustable output voltage from 1.25 V to 37 V. Output current rating of 1.5 A for medium power devices. Includes short circuit and thermal protection for durability. Surface mount 3-pin package for easy board assembly. Meets automotive standard AEC-Q100 ensuring robust quality.
Compact form factor with 6.73 mm length and 6.22 mm width. Low quiescent current of 3.5 mA for efficient operation. Maximum operating temperature up to 125°C. Manufactured in Malaysia with proven reliability.
The onsemi LM317MDTG serves a broad range of industrial, automotive, and commercial electronic applications requiring reliable and adjustable voltage regulation. EnvMart offers this component for engineers and technicians designing power management boards, automation systems, and embedded electronics.
Explore other Voltage Regulators and power components in EnvMart’s extensive electronics catalog to complement your designs and applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LM317MDTG offers an adjustable output voltage range from 1.25 V to 37 V.
This model can supply output currents up to 1.5 A, making it suitable for medium power applications.
The compact dimensions of this unit are 6.73 mm in length, 6.22 mm in width, and 2.38 mm in height.
The maximum operating temperature for this voltage regulator is 125°C, ensuring its durability in demanding environments.
It includes short circuit current limiting, thermal protection, and safe-area compensation for reliable operation.
The quiescent current for this voltage regulator is 3.5 mA, optimizing energy efficiency in low-power circuits.
Yes, it complies with the automotive standard AEC-Q100, ensuring quality and robustness for automotive applications.
This voltage regulator features a surface mount design, making it suitable for easy PCB integration.
The maximum input voltage for this model is 40 V, allowing it to handle a range of applications.
It is well-suited for on-card voltage regulation, programmable output regulators, and precision current regulators using an external resistor.
This voltage regulator has a 3-pin configuration, which facilitates its integration into various designs.
The LM317MDTG is manufactured in Malaysia, ensuring proven reliability in its performance.
