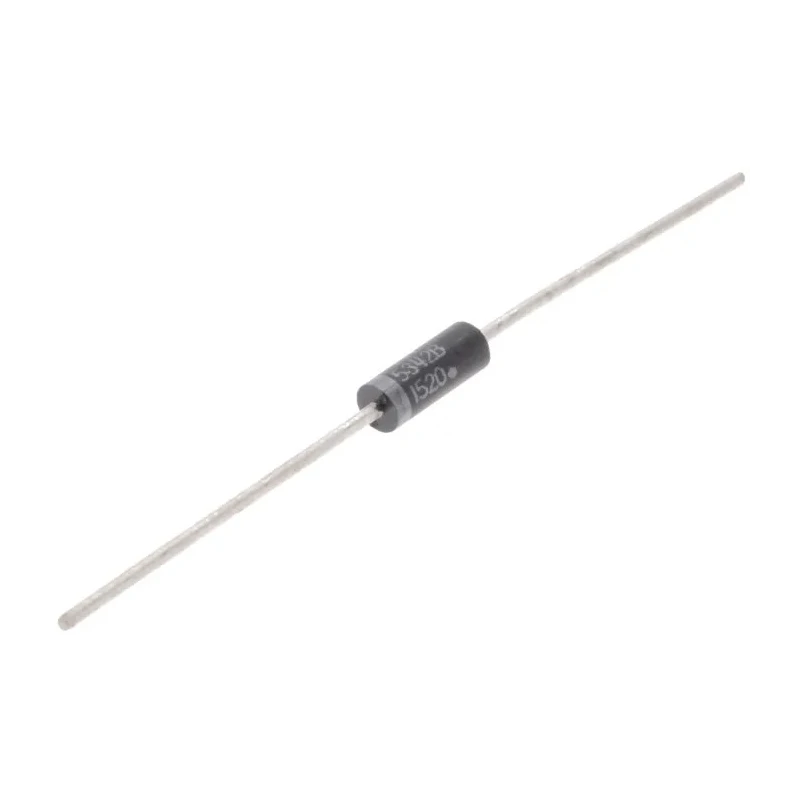

onsemi 6.8 V 5 W Zener Diode, Single, Through Hole 2-Pin DO-15 1N5342BG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5342BG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 175mA |
| Maximum Reverse Leakage Current | 10μA |
| Nominal Zener Voltage Vz | 6.8V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 1Ω |
| onsemi, 6.8V Zener Diode 5% 5 W Through Hole 2-Pin 017AA-01Brand | ON Semiconductor |
| onsemi 1, 4.3 V Zener Diode, Single 5 W 5 % Through Hole 2-Pin Surmetic 40Brand | onsemi |
Key Features
- The zener diode has a maximum power dissipation of 5 watts.
- Nominal Zener voltage is 6.8 V with 5% tolerance for stable voltage regulation.
- It features a single diode configuration with 2 pins in a DO-15 through hole package.
- Test current for the diode is 175 mA with maximum zener impedance of 1 Ω.
- Designed to operate in temperatures from -65°C up to 200°C.
- Maximum reverse leakage current is 10 μA ensuring low leakage in reverse bias.
- The diode is constructed with corrosion-resistant surfaces and readily solderable leads.
- Suitable for industrial applications requiring reliable voltage regulation in harsh environments.
Product Description
onsemi 1N5342BG Zener Diode is a high-quality single element voltage regulator diode featuring a 6.8 V nominal zener voltage and a power rating of 5 watts. Packaged in a DO-15 axial-leaded through hole format with 2 pins, this device ensures robust and reliable performance in industrial semiconductor applications.
The diode configuration is single, designed for regulation and voltage stabilization with a tight 5% voltage tolerance. Tested at a current of 175 mA, the diode offers a maximum zener impedance of 1 ohm and a low reverse leakage current of 10 microamps, contributing to efficient operation in power supply circuits.
Its molded, void-free thermosetting plastic package provides corrosion resistance and protection against common environmental conditions. The DO-15 package length is 8.89 mm, height 3.68 mm, making it suitable for through hole mounting on PCBs.
Operating temperature ranges from -65°C to 200°C enable this diode to perform reliably in demanding industrial applications, including power supply regulation and protection circuits. The axial leads are readily solderable to support manufacturing and repair needs.
The zener diode has a maximum power dissipation of 5 watts. Nominal Zener voltage is 6.8 V with 5% tolerance for stable voltage regulation. Single diode configuration with 2 pins in a DO-15 through hole package. Test current for the diode is 175 mA with max zener impedance of 1 Ω.
Designed for operating temperatures from -65°C up to 200°C. Maximum reverse leakage current is 10 μA ensuring low leakage in reverse bias. Corrosion-resistant molded package with thermosetting plastic for environmental protection.
Suitable for industrial voltage regulation and protection in power electronic circuits.
This onsemi 1N5342BG Zener Diode is ideal for electronic engineers and technicians requiring a reliable voltage regulator diode for a variety of industrial and laboratory electronics applications.
Browse EnvMart's wide selection of semiconductor components and electronic parts to find the perfect device to suit your project or production requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 6.8 V with a tolerance of 5%.
The maximum power dissipation for the 1N5342BG is 5 watts.
The maximum reverse leakage current is 10 μA, ensuring low leakage in reverse bias.
The test current for this Zener diode is 175 mA.
The maximum Zener impedance is 1 Ω.
This diode is designed to operate in temperatures ranging from -65°C to 200°C.
The 1N5342BG comes in a DO-15 axial-leaded through hole package.
This diode has 2 pins in its configuration.
The height of the DO-15 package is 3.68 mm and the length is 8.89 mm.
The diode configuration is single, designed for voltage regulation and stabilization.
The diode features a molded, void-free thermosetting plastic package that provides corrosion resistance.
This Zener diode is suitable for industrial voltage regulation and protection in power electronic circuits.
