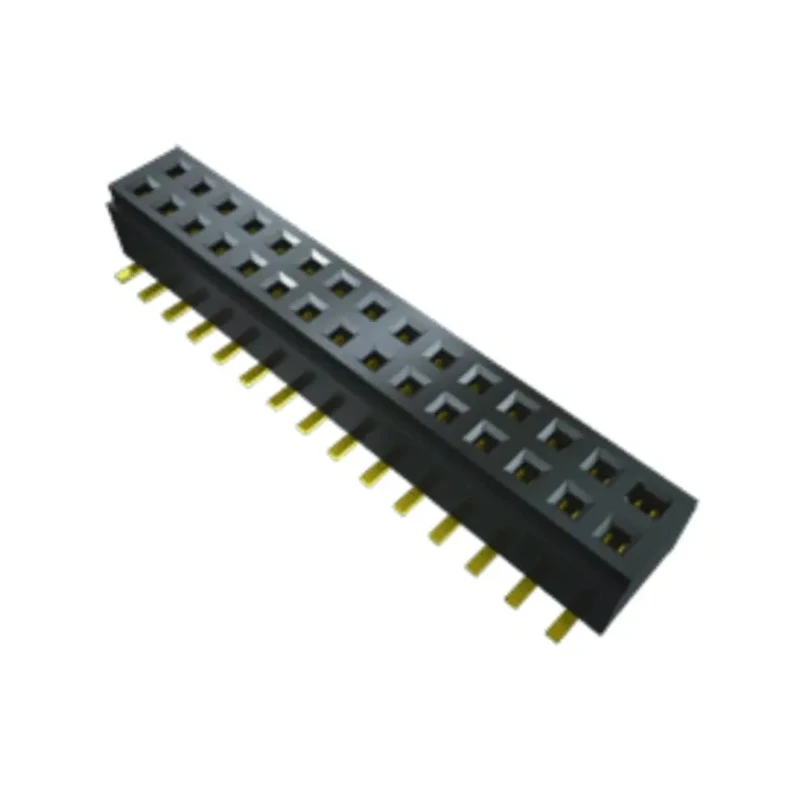

Samtec CLM Series Straight Surface PCB Socket 20-Contact 2 Row 1 mm Pitch Solder CLM-110-02-H-D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.8A |
| Model | CLM-110-02-H-D |
| Mount Type | Surface |
| Housing Material | Black Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | CLM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Tin |
| Number of Contacts | 20 |
Key Features
- Constructed from black liquid crystal polymer housing for durability.
- Features phosphor bronze contacts plated with gold over tin for excellent conductivity.
- Rated for 2.8A current per pin with solder termination type.
- Operates efficiently between -55°C to 125°C temperature range.
- Designed in a straight orientation for surface mount applications.
- Part of the CLM series known for rugged and reliable dual wipe micro socket strip.
- Complies with RoHS standards ensuring environmental safety.
- Ideal for electronic components requiring secure PCB connections.
Product Description
The Samtec CLM-110-02-H-D Straight Surface PCB Socket is a high-quality electronic component designed for secure and reliable connections in PCB assemblies.
Constructed of black liquid crystal polymer housing, the socket delivers rugged durability and excellent electrical insulation. The contacts are made of phosphor bronze with a gold plating over tin, providing superior conductivity and corrosion resistance. Its solder termination type supports permanent and strong PCB mounting.
This PCB socket supports a current rating of 2.8A per pin, suitable for low to moderate current electronic applications. It operates reliably within a wide temperature range from -55°C to +125°C, ensuring performance across diverse industrial and commercial environments.
The straight orientation surface mount design facilitates easy integration into PCB layouts requiring compact and precise connections. The CLM series is recognized for its rugged, dual wipe contact system that enhances connection stability and longevity under dynamic electrical and mechanical conditions.
Durable black liquid crystal polymer housing. Phosphor bronze contacts with gold over tin plating. 2.8A current rating per contact supporting efficient power handling. Wide operating temperature range from -55°C to 125°C.
Solder termination for secure surface mounting. Straight orientation for simplified PCB integration. RoHS compliant for environmental safety.
This PCB socket is extensively used in electronics manufacturing, industrial control systems, telecommunications, and other applications demanding reliable board-to-board connections. Its robust build and electrical characteristics make it a preferred choice for stringent industrial and commercial electrical engineering tasks.
Discover more from Samtec and explore related PCB Socket solutions on EnvMart to enhance your electronic component sourcing experience.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 2.8A per pin, suitable for low to moderate current electronic applications.
It operates reliably within a temperature range of -55°C to +125°C, making it suitable for diverse industrial and commercial environments.
The housing is made from black liquid crystal polymer, while the contacts are phosphor bronze plated with gold over tin, providing excellent conductivity and corrosion resistance.
This model features a solder termination type, which supports secure and permanent mounting on PCBs.
It has a total of 20 contacts arranged in 2 rows, designed for efficient board-to-board connections.
The contact pitch for this model is 1mm, facilitating compact PCB layouts.
This unit is designed in a straight orientation, making it suitable for surface mount applications.
Yes, this model complies with RoHS standards, ensuring it meets environmental safety requirements.
The country of origin for this PCB socket is India.
It is extensively used in electronics manufacturing, industrial control systems, and telecommunications, where reliable board-to-board connections are essential.
This socket is part of the CLM series, known for its rugged and reliable dual wipe micro socket strip design.
The maximum operating temperature for the CLM-110-02-H-D is 125°C, allowing it to function effectively in high-temperature environments.
