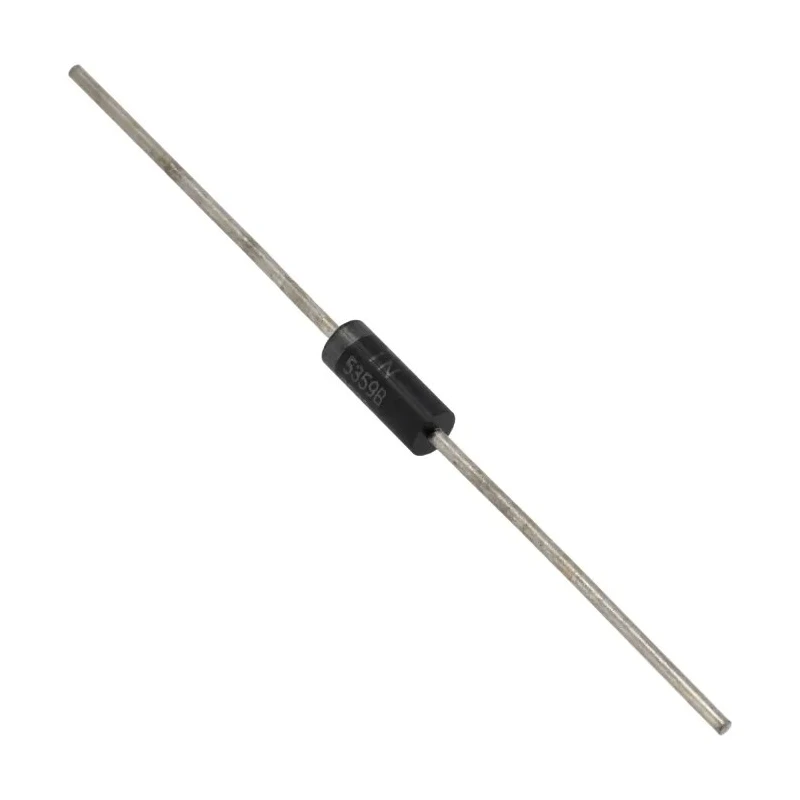

onsemi Zener Diode 24 V 5 W 5% Through Hole 2-Pin DO-15 1N5359BG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5359BG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 50mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 24V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 3.5Ω |
| ON Semiconductor, 24V Zener Diode 5% 5 W Through Hole 2-Pin DO-15Brand | ON Semiconductor |
| onsemi 1, 24 V Zener Diode, Single 5 W 5 % Through Hole 2-Pin DO-15Brand | onsemi |
Key Features
- This diode features a single diode configuration in a robust DO-15 through-hole package.
- It operates with a nominal Zener voltage of 24 volts and a test current of 50 mA.
- The device has maximum power dissipation of 5 watts and maximum reverse leakage current of 500 nA.
- The Zener impedance is rated at 3.5 ohms for stable voltage regulation.
- Designed for industrial applications with operating temperature from -65°C to 200°C.
- The package length is 8.89 mm and height is 3.68 mm, featuring corrosion-resistant external surfaces.
- The leads are axial and readily solderable for easy PCB assembly.
- This diode is part of the 1N53 series known for high reliability and performance.
Product Description
onsemi 1N5359BG Zener Diode is a single diode device designed for precise voltage regulation at 24 volts with 5 watts power dissipation and 5% tolerance, supplied in a DO-15 axial through-hole package.
This diode features a molded, void-free thermosetting plastic package that provides excellent environmental protection and corrosion resistance. Its axial leads facilitate easy soldering and mounting on printed circuit boards, suitable for industrial and commercial electronics.
The diode operates over a wide temperature range from -65°C to 200°C, ensuring stable performance under harsh conditions. The maximum reverse leakage current is a minimal 500 nA, and the maximum Zener impedance of 3.5 ohms supports reliable voltage regulation.
Typical applications include voltage regulation in power supplies, industrial control systems, and electronic circuits requiring stable voltage references. The device is part of the 1N53 series by onsemi, a recognized brand for high-quality semiconductor components.
The diode is designed to meet demanding industrial standards, although it carries no specific formal approvals or automotive standards. Its construction and specifications reflect superior silicon-oxide passivated junction technology for enhanced reliability and longevity.
This diode features a single diode configuration in a robust DO-15 through-hole package. It operates with a nominal Zener voltage of 24 volts and a test current of 50 mA. The device has maximum power dissipation of 5 watts and maximum reverse leakage current of 500 nA.
The Zener impedance is rated at 3.5 ohms for stable voltage regulation. Designed for industrial applications with operating temperature from -65°C to 200°C. The package length is 8.89 mm and height is 3.68 mm, featuring corrosion-resistant external surfaces.
The leads are axial and readily solderable for easy PCB assembly. This diode is part of the 1N53 series known for high reliability and performance. The molded package offers protection against common environmental conditions.
It is ideal for voltage regulation in electronic and industrial power circuits. Explore the onsemi Zener Diode range and other semiconductor products in the Electronics & Electricals category on EnvMart for reliable industrial solutions.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 24 volts.
This model has a maximum power dissipation of 5 watts.
The maximum reverse leakage current for this diode is 500 nA.
The Zener impedance is rated at 3.5 ohms, which supports stable voltage regulation.
The diode operates over a temperature range from -65°C to 200°C.
It comes in a DO-15 through-hole package.
The leads are designed for easy soldering and mounting on printed circuit boards.
The package height is 3.68 mm and the length is 8.89 mm.
The test current for this Zener diode is 50 mA.
This diode has 1 element per chip, configured as a single diode.
This diode is part of the 1N53 series by onsemi.
It is suitable for voltage regulation in power supplies and industrial control systems.
