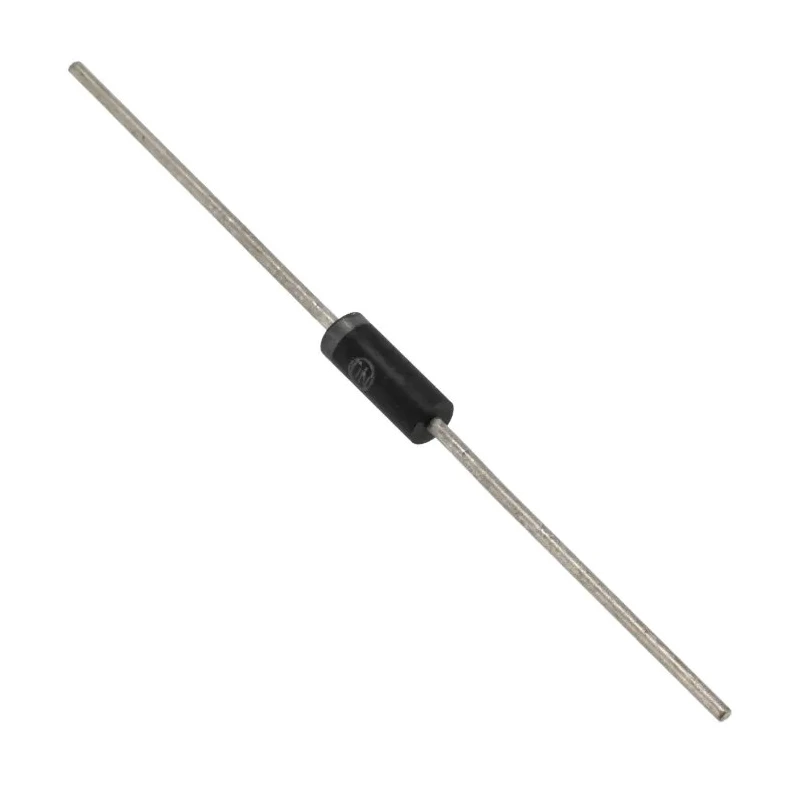

onsemi Zener Diode 3.3 V Nominal Voltage 5 W Power Dissipation Through Hole DO-15 Package 1N5333BG

Free Delivery in India | Lowest Global Shipping Charges

onsemi Zener Diode 3.3 V Nominal Voltage 5 W Power Dissipation Through Hole DO-15 Package 1N5333BG

Name: onsemi Zener Diode 3.3 V Nominal Voltage 5 W Power Dissipation Through Hole DO-15 Package 1N5333BG
Brand: onsemi
SKU: 138678



Category Zener Diodes Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	3.68mm
Length	8.89mm
Model	1N5333BG
Mount Type	Through Hole
Series	1N53
Maximum Operating Temperature	200°C
Package Type	DO-15
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	5W
Diode Configuration	Single
Test Current It	380mA
Maximum Reverse Leakage Current	300μA
Nominal Zener Voltage Vz	3.3V
Zener Type	Voltage Regulator
Maximum Zener Impedance	3Ω

Key Features

Single diode configuration built for tight voltage regulation.
Through hole mounting type suitable for PCB assembly.
Test current of 380 mA for reliable Zener performance.
Maximum operating temperature rated up to 200°C.
Axial leaded design with corrosion-resistant external surfaces.
Maximum reverse leakage current of 300 µA to minimize power loss.
Non-automotive standard device suitable for industrial use.
Offers excellent environmental protection with void-free thermosetting plastic mold.

Product Description

onsemi 1N5333BG Zener Diode is a single 5 Watt power dissipation device with a nominal Zener voltage of 3.3 V. The diode is supplied in a DO-15 through-hole package and is designed mainly as a voltage regulator with tightly controlled voltage limits and improved operating characteristics owing to its silicon-oxide passivated junction.

This diode features corrosion-resistant external surfaces and an axial leaded design, making it readily solderable and robust for various industrial applications. It operates reliably within a temperature range of -65°C to 200°C, ensuring dependable performance under harsh conditions.

The 1N5333BG has a maximum Zener impedance of 3 Ω and can handle a test current of 380 mA, delivering stable voltage regulation across a range of operating currents. The maximum reverse leakage current is limited to 300 μA, minimizing leakage and power dissipation.

Its molded package uses void-free transfer-molded thermosetting plastic, offering protection against common environmental factors encountered in industrial settings. This device is ideal for use in voltage regulation circuits, protecting sensitive electronics by clamping voltage within safe limits.

Industrial applications include power supply regulation, voltage reference sources in instrumentation, and protection circuits in electronic designs. Single diode configuration built for tight voltage regulation. Through hole mounting type suitable for PCB assembly.

Voltage tolerance of ±5% ensures stable operation. Test current of 380 mA for reliable Zener performance. Maximum operating temperature rated up to 200°C. Axial leaded design with corrosion-resistant external surfaces. Package dimensions: length 8.89 mm and height 3.68 mm.

Maximum reverse leakage current of 300 µA to minimize power loss. Non-automotive standard device suitable for industrial use. Offers excellent environmental protection with void-free thermosetting plastic mold. For more electronic components with robust specifications, browse the Semiconductor and Zener Diodes categories at EnvMart.
