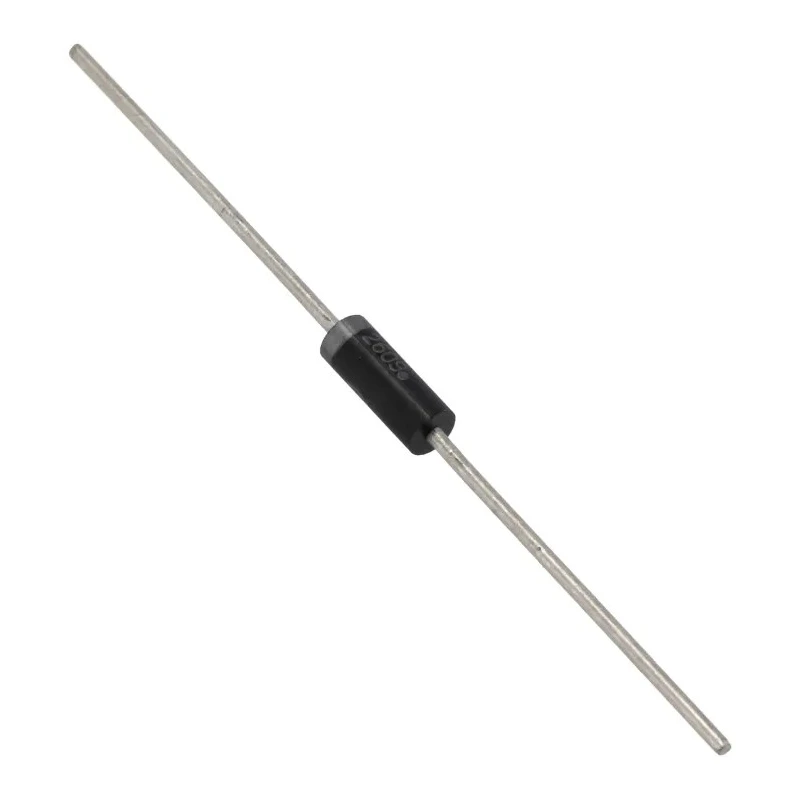

onsemi Zener Diode Single 15 V 5 W Voltage Regulator Through Hole 2-Pin DO-15 1N5352BG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5352BG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 75mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 15V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 2.5Ω |
Key Features
- The diode features a tight voltage regulation with a tolerance of ±5%.
- It has a maximum reverse leakage current of 1 μA ensuring effective voltage clamping.
- The maximum zener impedance is rated at 2.5 Ω for stable operation.
- Designed to operate from -65°C to 200°C, suitable for demanding industrial environments.
- Axial-leaded device with corrosion-resistant molded thermosetting plastic package.
- Leads are readily solderable for ease of assembly.
- Ideal for use in voltage regulator, protection, and reference applications.
- Surmetic™ 40 series offering rugged construction for enhanced reliability.
Product Description
onsemi 1N5352BG Zener Diode is a high-quality, single diode voltage regulator designed for industrial and electronic applications requiring a stable 15 V reference. With a maximum power dissipation of 5 W, this through-hole component features a 2-pin DO-15 package ensuring robust installation in various circuits.
This axial-leaded Zener diode is constructed using Surmetic™ 40 axial-leaded technology with a molded, thermosetting plastic package providing void-free transfer molding for excellent protection against environmental conditions. The diode has corrosion-resistant external surfaces, ensuring long-term durability in industrial settings.
Operating temperature range extends from -65°C up to 200°C, enabling use in harsh environments. It features a tight voltage tolerance of ±5%, a maximum reverse leakage current of only 1 μA, and maximum zener impedance of 2.5 Ω to maintain efficient voltage regulation and stability.
Typically used for voltage regulation and protection in electronic systems, this diode is suitable for industrial, manufacturing, and commercial electrical use cases. The component's leads are readily solderable, simplifying installation on printed circuit boards and prototypes.
While it does not carry specific industry certifications, it meets general performance and quality standards for semiconductor devices. The diode features a tight voltage regulation with a tolerance of ±5%. It has a maximum reverse leakage current of 1 μA ensuring effective voltage clamping.
The maximum zener impedance is rated at 2.5 Ω for stable operation. Designed to operate from -65°C to 200°C, suitable for demanding industrial environments. Axial-leaded device with corrosion-resistant molded thermosetting plastic package.
Leads are readily solderable for ease of assembly. Ideal for use in voltage regulator, protection, and reference applications. Surmetic™ 40 series offering rugged construction for enhanced reliability. Complies with standard industrial requirements but has no special certifications.
Explore additional Zener Diodes and semiconductor components in EnvMart's Electronics & Electricals category to find solutions tailored to industrial and electronic requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal zener voltage of this model is 15V, making it suitable for voltage regulation applications.
This diode has a maximum power dissipation of 5W, allowing it to handle significant power in various applications.
It operates within a temperature range of -65°C to 200°C, making it suitable for demanding industrial environments.
The maximum zener impedance is rated at 2.5 Ω, providing stable operation during use.
It is packaged in a DO-15 through-hole type, facilitating robust installation in various circuits.
This model has 2 pins, which are readily solderable for ease of assembly on printed circuit boards.
The height of this diode is 3.68mm and the length is 8.89mm, making it compact for various applications.
This diode is ideal for use in voltage regulation, protection, and reference applications in electronic systems.
The test current for this model is 75mA, which is used to determine its performance characteristics.
It belongs to the 1N53 series, which includes various zener diodes designed for voltage regulation.
The country of origin for this diode is India.
