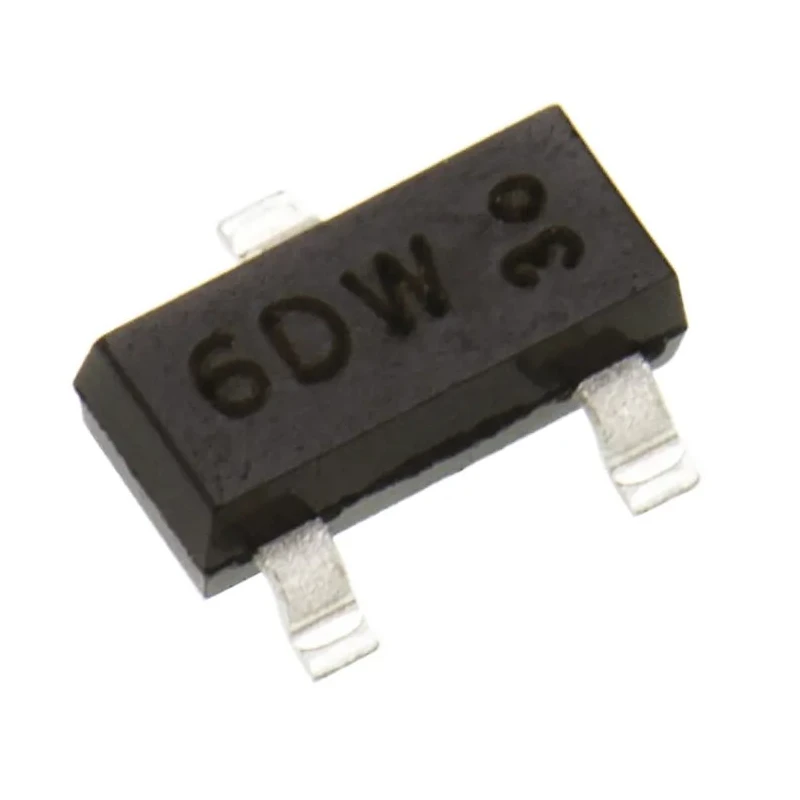

Nexperia Small Signal NPN Transistor BC817,215 500 mA 45 V 3-Pin SOT-23

The Nexperia BC817,215 small signal NPN transistor features a maximum DC collector current of 500 mA and collector-emitter voltage rating of 45 V, making it suitable for various amplification and switching applications in electronic circuits.

Its compact 3-pin SOT-23 surface mount package ensures ease of integration on printed circuit boards with limited space.

With a minimum DC current gain (hFE) of 100 and maximum power dissipation of 250 mW, this transistor provides efficient performance in low power signal amplification and switching tasks.

The device supports a wide operating temperature range from -65°C to 150°C, ensuring reliability under demanding industrial and automotive conditions. Compliance with RoHS and the automotive standard AEC-Q101 further attest to its quality and environmental compliance.

The maximum transition frequency of 100 MHz allows use in high frequency applications, providing versatility for communications and industrial electronics. Physical dimensions (3 mm length, 2.5 mm width, and 1.1 mm height) and low pin count simplify design and assembly processes.

This transistor is commonly used in industrial, automotive, and consumer electronics for switching and amplification tasks where moderate current and voltage capabilities suffice. Maximum DC collector current of 500 mA allows moderate power use.

Collector-emitter voltage rating of 45 V ensures versatility in low to mid-voltage circuits. Surface mount package type SOT-23 with 3 pins for compact PCB layouts. High current gain minimum hFE of 100 provides efficient amplification.

Operating temperature range from -65°C to 150°C suitable for industrial environments. Maximum power dissipation of 250 mW supports small signal applications. Maximum transition frequency of 100 MHz allows use in high frequency circuits.

Compliant with RoHS and automotive standard AEC-Q101 for quality and reliability. Compact physical dimensions: Length 3 mm, Width 2.5 mm, Height 1.1 mm. Pin count of 3 for simple circuit integration. Explore more in Nexperia transistors and other Bipolar Transistors for your electronic design needs at EnvMart.
