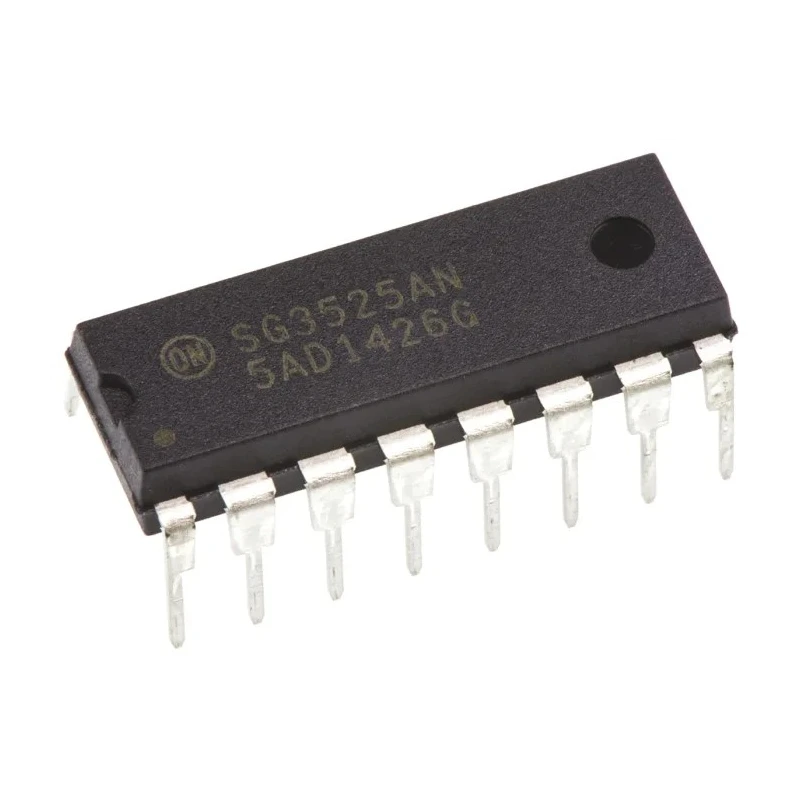

onsemi 16-Pin PDIP 2-Channel Voltage Mode PWM Controller 400 kHz 35V SG3525ANG
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | onsemi |
| Height | 3.43mm |
| Length | 19.55mm |
| Model | SG3525ANG |
| Width | 6.85mm |
| Mount Type | Through Hole |
| Maximum Duty Cycle | 49% |
| Series | SG |
| Output Current | 400mA |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number of outputs | 2 |
| Output Voltage | 5.2V |
| Maximum Switching Frequency | 400kHz |
| Pin Count | 16 |
| Maximum Supply Voltage | 35V |
| Minimum Supply Voltage | 8V |
| PWM Controller Type | Voltage Mode |
Key Features
- Maximum switching frequency of 400 kHz enables efficient PWM control.
- Dual output channels for versatile control applications.
- Operates over 8V to 35V supply voltage range.
- Produces an output voltage of 5.2V with 400 mA output current capability.
- Designed for through-hole mounting in a 16-pin PDIP package.
- Supports operating temperature range from 0°C to 70°C for reliable industrial use.
- Manufactured in Czech Republic ensuring quality and reliability.
Product Description
onsemi SG3525ANG is a precision 2-channel PWM controller optimized for voltage mode DC-DC converter applications. Housed in a 16-pin PDIP through-hole package, it provides robust power management with a maximum switching frequency of 400 kHz. Operating over a wide supply voltage range of 8 to 35 volts, this controller delivers a regulated 5.2 V output voltage with up to 400 mA current on each output channel, ideal for power conversion circuits.
The SG3525ANG features voltage mode PWM control technology designed for industrial, power supply, and embedded system applications needing precise pulse width modulation control. Its 49% maximum duty cycle and temperature tolerance ranging from 0°C to 70°C ensure stable performance in demanding environmental conditions.
Compact dimensions (19.55 mm length, 6.85 mm width, 3.43 mm height) and a through-hole pin mount package type facilitate easy integration in printed circuit boards. This model is part of onsemi's SG series of power management ICs engineered to meet modern power conversion demands.
The product is manufactured in Czech Republic and complies with standard industrial specifications, although it does not carry specific automotive standards or certifications. Maximum switching frequency of 400 kHz enables efficient PWM control.
Provides dual output channels for flexible power regulation applications. Supports supply voltage from 8V minimum to 35V maximum. Delivers 5.2 V output voltage with 400 mA output current on each channel. Voltage mode PWM controller for precise power control.
Compact 16-pin PDIP through-hole package for PCB mounting. Operating temperature range of 0°C to 70°C suitable for industrial environments. Compact physical dimensions: 19.55 x 6.85 x 3.43 mm. Manufactured in Czech Republic ensuring high quality standards.
Ideal for industrial machinery, power management systems, and electronic manufacturing applications requiring reliable PWM control components. Explore our extensive selection of Power Management ICs and semiconductor components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching frequency of this model is 400 kHz, enabling efficient PWM control.
It operates over a supply voltage range of 8V to 35V.
This unit delivers a regulated output voltage of 5.2V.
Each output channel can provide an output current of up to 400 mA.
The operating temperature range is from 0°C to 70°C, making it suitable for industrial use.
The dimensions of this model are 19.55 mm in length, 6.85 mm in width, and 3.43 mm in height.
This PWM controller features two output channels.
It is housed in a 16-pin PDIP through-hole package, suitable for PCB mounting.
The maximum duty cycle for this model is 49%.
This model is manufactured in the Czech Republic, ensuring quality and reliability.
It utilizes voltage mode PWM control technology, optimized for DC-DC converter applications.
This PWM controller is ideal for industrial machinery, power management systems, and electronic manufacturing applications requiring precise pulse width modulation control.
