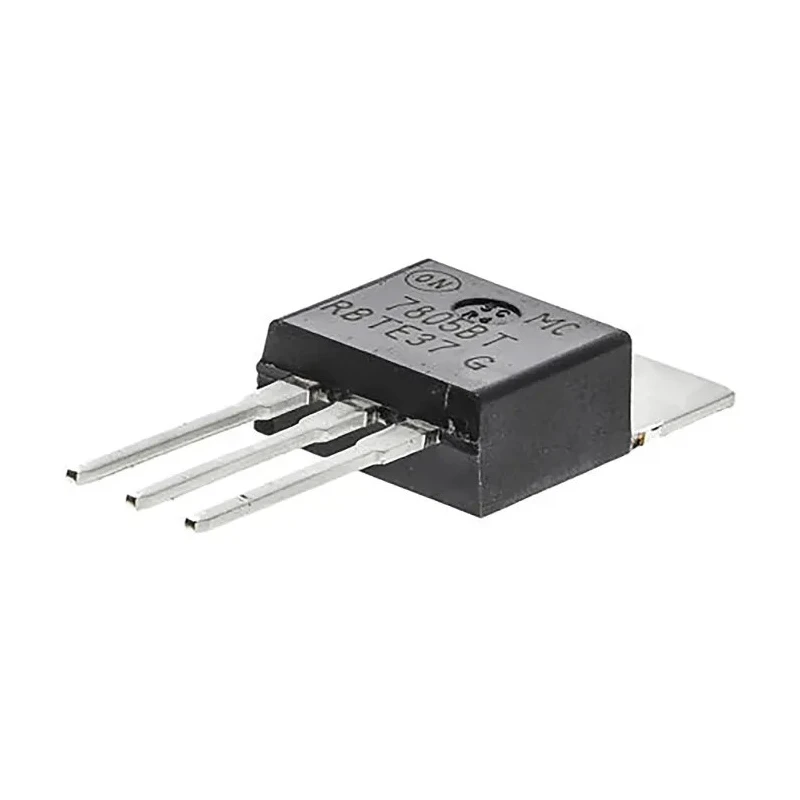

onsemi 5-Channel Linear Voltage Regulator 5V 1A TO-220 3-Pin MC7805BTG
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | Regulators onsemi MC7805BTG, 5-Channel Linear, Voltage Regulator, 1 A, 5V, TO-22 |
| Brand | onsemi |
| Height | 30.02mm |
| Length | 10.28mm |
| Model | MC7805BTG |
| Width | 4.82mm |
| Mount Type | Through Hole |
| Output type | Fixed |
| Series | MC78xx |
| Output Current | 1A |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Load Regulation | 100 mV |
| Minimum Operating Temperature | -40°C |
| Polarity | Positive |
| Regulator Type | Linear |
| Number of outputs | 5 |
| Maximum Input Voltage | 35V |
| Output Voltage | 5V |
| Quiescent Current | 3.2mA |
| Line Regulation | 100 mV |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 5V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Linear voltage regulator designed for five output channels.
- Delivers a stable fixed output voltage of 5 volts.
- Supports a maximum output current of 1 ampere for effective power management.
- Employs a TO-220 package with through-hole mount type for easy PCB integration.
- Includes internal thermal overload protection and current limiting.
- Operates reliably within -40°C to 125°C temperature range.
- Features low quiescent current of 3.2mA for energy efficiency.
- Complies with RoHS standards and automotive AEC-Q100 specifications.
Product Description
onsemi MC7805BTG is a 5-channel linear voltage regulator specifically designed for stable and reliable power management in electronic circuits. It provides a fixed output voltage of 5 volts with a maximum output current of 1 ampere, making it suitable for a wide range of applications including local and on-card regulation. The device is housed in a TO-220 3-pin package compatible with through-hole PCB mounting.
This linear regulator integrates built-in thermal overload protection, current limiting, and safe area compensation, ensuring robust operation under varying load and temperature conditions. It features a low quiescent current of 3.2mA, which contributes to efficient power consumption in sensitive applications.
The operational temperature range spans from -40°C to 125°C, supporting use in diverse industrial, automotive, and electronic environments. The device is compliant with RoHS directives and meets the automotive AEC-Q100 standards, making it suitable for stringent automotive electronics applications.
Featuring positive polarity and fixed output characteristics, the MC7805BTG is part of the established MC78xx series by onsemi, renowned for dependable power regulation. With dimensions of approximately 30.02mm height, 10.28mm length, and 4.82mm width, this voltage regulator fits compact circuit designs.
Common applications include power management in embedded circuits, industrial automation, telecommunications equipment, and automotive control units. Its protection features also enhance circuit reliability and longevity.
Linear voltage regulator designed for five output channels. Delivers a stable fixed output voltage of 5 volts. Supports a maximum output current of 1 ampere for effective power management. Employs a TO-220 package with through-hole mount type for easy PCB integration.
Includes internal thermal overload protection and current limiting. Operates reliably within -40°C to 125°C temperature range. Features low quiescent current of 3.2mA for energy efficiency. Complies with RoHS standards and automotive AEC-Q100 specifications.
Designed for positive polarity applications with fixed output type. Ideal for local and on-card voltage regulation in electronics and industrial systems. Explore a wide range of power management ICs and Voltage Regulators in our Electronics & Electricals category on EnvMart for industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MC7805BTG supports a maximum output current of 1 ampere.
It delivers a stable fixed output voltage of 5 volts.
This voltage regulator operates reliably within a temperature range of -40°C to 125°C.
It employs a TO-220 package with a through-hole mount type for easy PCB integration.
The quiescent current is 3.2mA, contributing to energy efficiency.
This linear voltage regulator is designed for five output channels.
The dimensions are approximately 30.02mm in height, 10.28mm in length, and 4.82mm in width.
The line regulation is 100 mV, and the load regulation is also 100 mV.
Yes, it complies with RoHS standards and meets automotive AEC-Q100 specifications.
The maximum input voltage is 35V.
It is suitable for local and on-card voltage regulation in electronics and industrial systems.
The MC7805BTG features a positive polarity output type.
