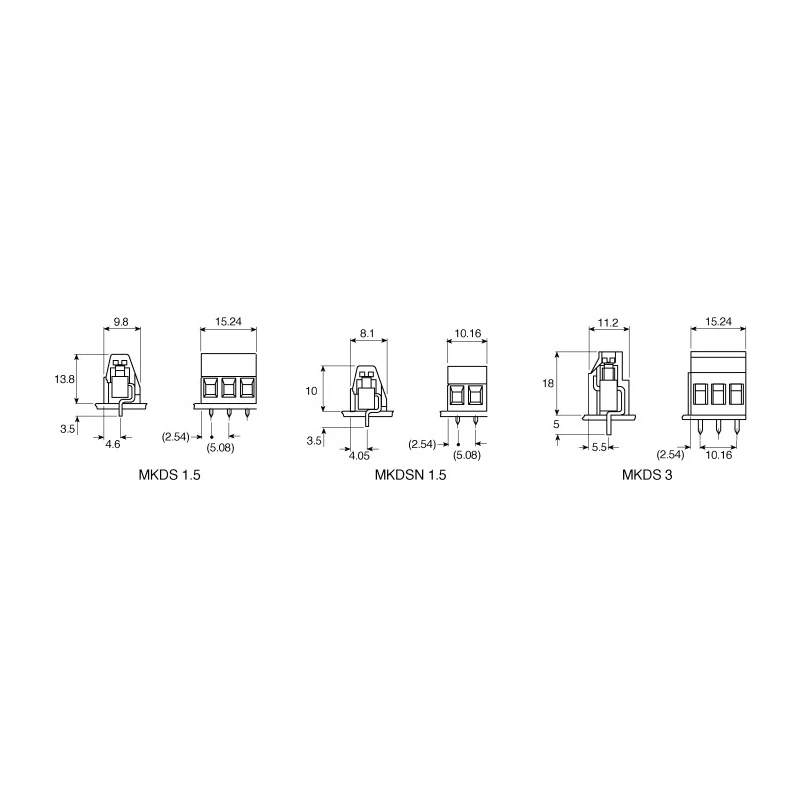

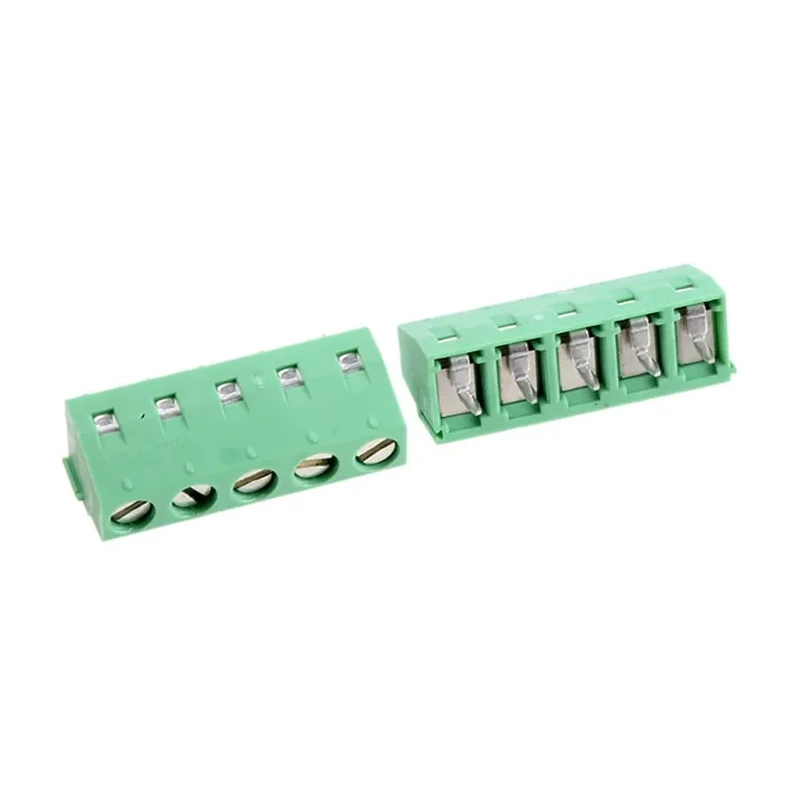

Phoenix Contact MKDSN 1.5/5-5.08 Series Straight Wave Soldering Mount PCB Terminal Block, 5 Contacts, 5.08 mm Pitch 1729157
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 400V |
| Brand | Phoenix Contact |
| Orientation | Straight |
| Current | 13.5A |
| Model | 1729157 |
| Mount Type | Wave Soldering Mount |
| Series | MKDSN 1.5/5-5.08 |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | CSA, cULus, EU RoHS |
| Number of Contacts | 5 |
| RS PRO PCB Terminal Block, 5-Contact, 5 mm Pitch, 1 RowBrand | RS PRO |
Key Features
- Constructed from durable polyamide-nylon material for long-lasting use.
- Features integrated protective guards to prevent incorrect conductor insertion.
- Supports wave soldering mount for easy PCB integration.
- Includes a single row with straight orientation for compact design.
- Compatible with wires stripped to 8 mm and secured with M3 screws.
- Certified with CSA, cULus, and compliant with EU RoHS standards.
- Made in Germany ensuring high manufacturing quality.
- Allows quick and secure connections for electrical and electronic applications.
Product Description
The Phoenix Contact MKDSN 1.5/5-5.08 Series Straight Wave Soldering Mount PCB Terminal Block, model 1729157, is engineered for industrial and electronic applications requiring reliable and safe electrical connections. Featuring a 5.08 mm pitch and 5 contact points in a single-row straight orientation, this terminal block enables easy and secure wiring on printed circuit boards. It supports a nominal current of 13.5 A and is rated for voltages up to 400 V.
Manufactured from robust polyamide-nylon material, the terminal block offers durability and reliable mechanical stability. The copper contacts ensure excellent conductivity and low temperature rise during operation. Integrated protective guards on the contacts prevent incorrect wire insertion under the tension sleeve, enhancing connection safety. The terminal block is designed for wave soldering mount, simplifying the assembly process onto PCBs.
Installation is user-friendly, requiring only an 8 mm wire strip length and tightening with an M3 screw for a secure connection that maintains electrical integrity over time. This unit is certified with CSA and cULus standards, ensuring compliance with safety regulations, and complies with EU RoHS environmental directives.
Applications include electronic equipment manufacturing, industrial control systems, and laboratory devices where robust and reliable PCB connectivity is essential. The product is made in Germany, reflecting high quality manufacturing standards.
Durable polyamide-nylon construction for mechanical strength. Safe contact design with protective guards against misinsertion. Wave soldering mount compatible for efficient PCB assembly. 5 contact points arranged in one row with 5.08 mm pitch.
Supports nominal current of 13.5 A and voltage rating of 400 V. Certified to CSA, cULus standards and EU RoHS compliant. Facilitates secure wire connections with M3 screw tightening. Made in Germany ensuring excellent product quality.
Explore EnvMart’s comprehensive catalog of PCB Terminal Blocks for additional industrial and electronic component solutions tailored to your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block supports a nominal current of 13.5 A.
It is rated for voltages up to 400 V.
This terminal block features 5 contact points arranged in a single row.
The pitch size is 5.08 mm.
It supports wave soldering mount for easy integration onto printed circuit boards.
It is constructed from durable polyamide-nylon material, ensuring mechanical stability.
Wires must be stripped to a length of 8 mm for secure connections.
It is certified with CSA, cULus standards and complies with EU RoHS directives.
This model is made in Germany, reflecting high manufacturing quality.
The terminal block has a straight orientation.
Connections are secured using M3 screws for reliable electrical integrity.
It is suitable for electronic equipment manufacturing, industrial control systems, and laboratory devices.
