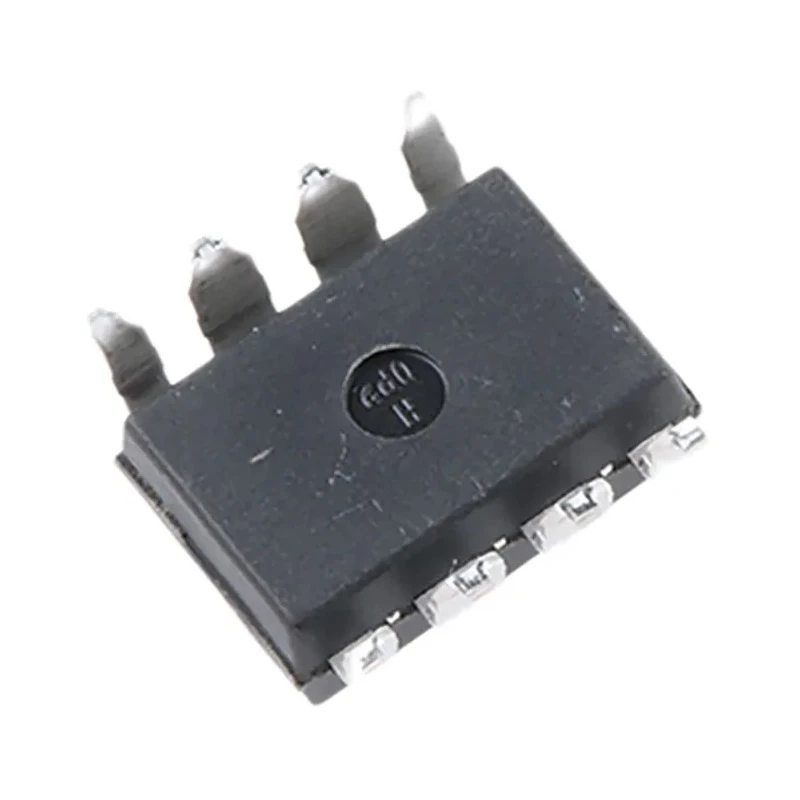

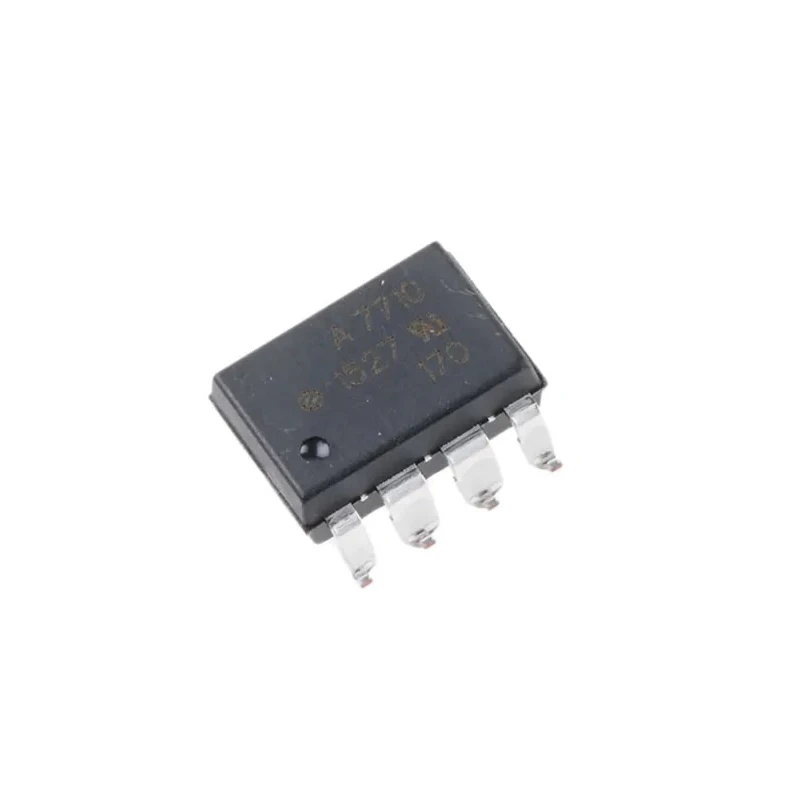

Broadcom DC Input Optocoupler Surface Mount 8-Pin DIP Package HCPL-7710-300E

Broadcom HCPL-7710-300E DC Input Optocoupler is a surface mount optocoupler housed in an 8-pin Dual In-line Package (DIP) designed to provide reliable electrical isolation between input and output circuits. It is engineered for high-speed CMOS logic gate applications, facilitating rapid signal transfer with minimized noise and interference.

The device features a transistor output type combined with a maximum forward voltage of 6.5 V and supports DC input current up to 10 mA. It maintains robust performance across a wide operating temperature range from -40°C to 100°C, suitable for industrial, manufacturing, and electronic applications where environmental conditions vary.

With an isolation voltage of 3750 V AC, the HCPL-7710-300E offers high-level protection against electrical surges and noise, ensuring system reliability and safety. Typical rise and fall times of 13 ns and 8 ns respectively contribute to fast switching capabilities, enhancing performance in signal transmission and control circuits.

This optocoupler complies with major safety standards including CSA, UL 1577, and IEC/EN/DIN EN 60747-5-5, confirming its suitability for industrial and laboratory applications. The presence of logic output supports compatibility with digital logic interfaces common in automated systems and precision electronics.

The HCPL series by Broadcom is known for delivering high-speed optoelectronic components designed to meet the rigorous requirements of modern electrical and electronic systems. The surface mount DIP package enables efficient PCB assembly and integration for optimized production workflows.

This optocoupler features a transistor output with a maximum forward voltage of 6.5 V. It supports a maximum input current of 10 mA with DC input current type. The device provides an isolation voltage rating of 3750 V AC for enhanced electrical isolation.

Operating temperature ranges from -40°C to 100°C, making it suitable for harsh environments. Typical rise and fall times are 13 ns and 8 ns respectively, ensuring fast signal response. It complies with CSA, UL 1577, and IEC/EN/DIN EN 60747-5-5 standards for safety and reliability.

Logic output type is included, allowing compatibility with digital circuits. This product is part of the HCPL series by Broadcom known for quality and performance in optoelectronic components. Explore more Broadcom Optocouplers and electronic components on EnvMart to enhance your industrial, manufacturing, telecommunications, and control system projects.
