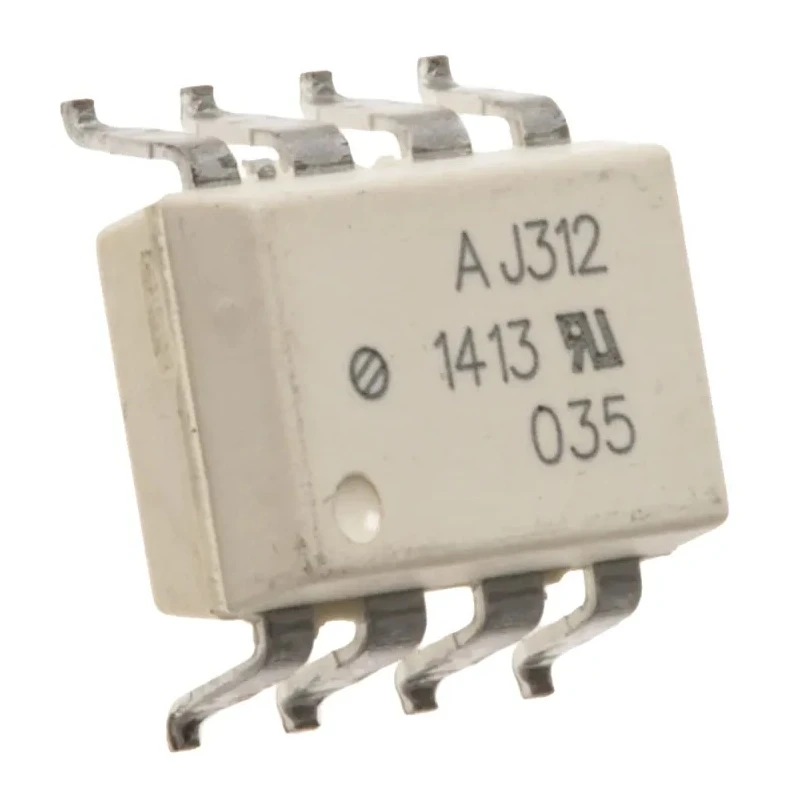

Broadcom DC Input Transistor Output Optocoupler Surface Mount 8-Pin DIP HCPL-J312-300E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-J312-300E |
| Packaging | Tube |
| Mount Type | Surface |
| Output type | Transistor |
| Series | HCPL |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 16mA |
| Standards/Approvals | UL, IEC, EN, CSA |
| Maximum Forward Voltage | 1.95V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 0.1μs |
Key Features
- Compact 8-pin DIP package suitable for surface mounting.
- Maximum forward voltage of 1.95 volts ensures efficient operation.
- Input current type is DC with a maximum input current of 16 milliamps.
- Fast switching with typical rise and fall times of 0.1 microseconds each.
- Operating temperature range from -40°C to 100°C for wide applications.
- Designed for logic output and high insulation voltage of 3.75 kVrms.
- Complies with UL, IEC, EN, and CSA standards for safety and performance.
- Optimized for driving IGBT and Power MOSFET transistors with rail-to-rail output.
Product Description
Broadcom HCPL-J312-300E is a high-performance DC input optocoupler featuring a transistor output in an 8-pin DIP surface mount package. This device is engineered to provide reliable optical isolation while driving insulated gate bipolar transistors (IGBT) and power MOSFETs, which are widely used in power control and motor drive systems.
The optocoupler delivers a maximum forward voltage of 1.95 V and supports an input current up to 16 mA, allowing for efficient switching with low input power. It exhibits fast switching speeds with typical rise and fall times of 0.1 µs each, ensuring minimal delays in signal transmission and improved system responsiveness.
Operating reliably over a broad temperature range from -40°C to 100°C, the HCPL-J312-300E is suitable for demanding industrial and automotive electronic applications. Its reinforced insulation capability of 3.75 kVrms offers superior electrical isolation, protecting sensitive control circuitry from high voltages and noise.
Designed with logic output compatibility, the device complies with multiple international standards including UL, IEC, EN, and CSA, guaranteeing trustable performance and safety. It is supplied in tube packaging format, facilitating automated assembly and production efficiency.
This optocoupler is ideal for isolated gate driving applications, such as motor control, power conversion, and other industrial electronic systems needing electrical isolation and high common mode rejection. Broadcom’s HCPL series represents industry-leading reliability and performance in optoelectronic components.
Compact 8-pin DIP surface mount construction for easy PCB integration. Motor control and power switching optimized isolated gate driver technology. High common mode rejection for noise immunity in challenging environments.
Broad operating temperature and high isolation voltage for rugged applications. Compliant with major safety and performance standards. Efficient tube packaging supporting high volume manufacturing. Explore the extensive range of electronic components and optocouplers in the Optocouplers category on EnvMart for reliable solutions in your industrial and electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 16 milliamps.
It has a typical rise time of 0.1 microseconds.
This optocoupler operates within a temperature range of -40°C to 100°C.
It provides a transistor output.
The maximum forward voltage is 1.95 volts.
It is supplied in tube packaging format.
This model complies with UL, IEC, EN, and CSA standards.
It has 8 pins.
This optocoupler features a surface mount design.
It is optimized for driving IGBT and power MOSFET transistors, suitable for motor control and power conversion applications.
The 3.75 kVrms insulation voltage provides superior electrical isolation, protecting sensitive control circuitry from high voltages and noise.
It belongs to the HCPL series of optocouplers.
