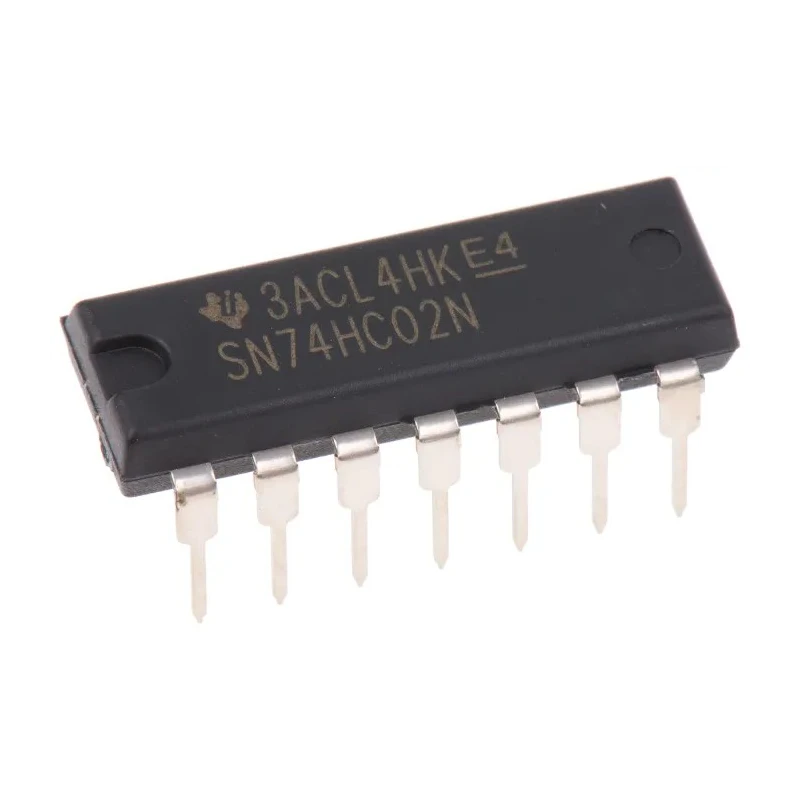

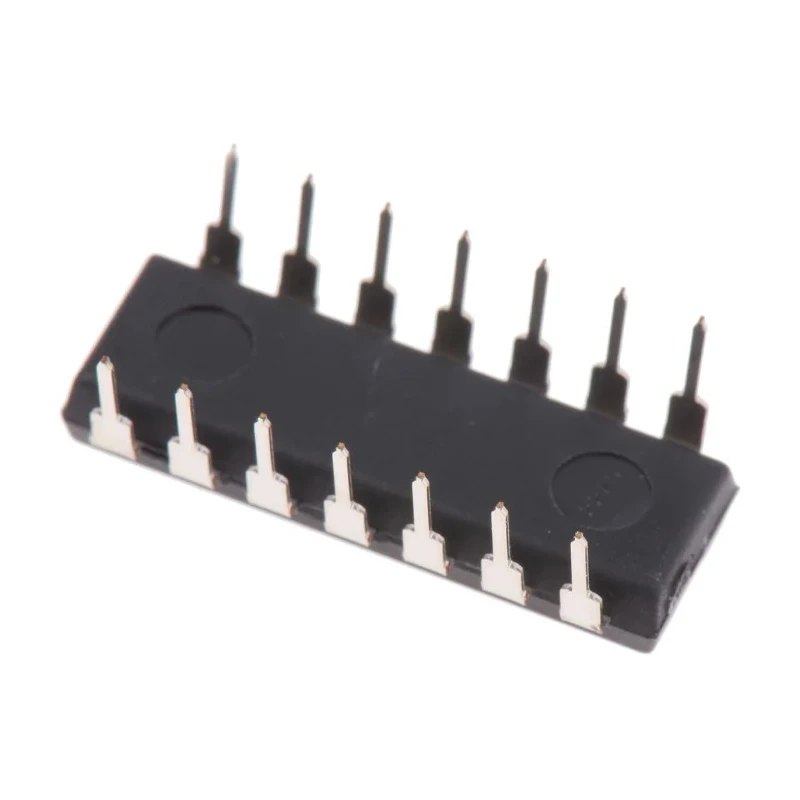

Texas Instruments 4 2-Input NOR Logic Gate, 14-Pin PDIP, CMOS Logic Family HC SN74HC02N

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments 4 2-Input NOR Logic Gate, 14-Pin PDIP, CMOS Logic Family HC SN74HC02N

Name: Texas Instruments 4 2-Input NOR Logic Gate, 14-Pin PDIP, CMOS Logic Family HC SN74HC02N
Brand: Texas Instruments
SKU: 137723
Price: 1.45 USD
Availability: InStock



Category Logic Gate Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	4.57mm
Length	19.3mm
Model	SN74HC02N
Mount Type	Through Hole
Compatibility	Input CMOS, Output CMOS
Output type	Push Pull
Series	SN74
Input Type	CMOS
Maximum Operating Temperature	85°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Operating Voltage	2 to 6 V
Pin Count	14
Number of Elements	4
Maximum Supply Voltage	6V
Logic Family	HC
Logic Function	NOR
Minimum Supply Voltage	2V
Maximum High Level Output Current	-5.2mA
Maximum Propagation Delay Time @ CL	20ns
Maximum Low Level Output Current	5.2mA
Number of Inputs per Gate	2

Key Features

The device contains four independent 2-input NOR gates.
Featuring a 14-Pin PDIP through-hole package for mounting ease.
Operating voltage range from 2 V to 6 V supports versatile circuit designs.
Maximum propagation delay time is 20ns, suitable for high-speed processing.
Suitable for industrial and electronic applications requiring low power consumption.
Operating temperature range is -40°C to 85°C ensuring reliable performance in varying environments.
Maximum high level output current is -5.2mA and low level output current is 5.2mA with push-pull output type.
Logic family HC CMOS compatible for input and output, with no Schmitt Trigger input capability.

Product Description

Texas Instruments SN74HC02N 4 2-Input NOR Logic Gate in 14-Pin PDIP package is a high-speed CMOS device from the widely used 74HC logic family. Designed to perform effectively in industrial, electronics manufacturing, and embedded system applications, it contains four independent NOR gates each with two inputs, facilitating logic NOR operations in digital circuits.

This product operates over a wide voltage range (2 V to 6 V), contributing to its compatibility with various CMOS logic circuits. The maximum propagation delay time of 20 nanoseconds ensures fast signal processing suitable for time-critical applications. The device’s push-pull output structure enables strong drive capability with a maximum high level output current of -5.2mA and low level output current of 5.2mA.

The SN74HC02N is fabricated using silicon gate CMOS technology, allowing for lower power consumption compared to older TTL logic families. It supports through-hole mounting for ease of assembly in both prototyping and volume production.

Operating temperature ranges from -40°C to 85°C, which ensures functionality across a wide variety of environmental conditions, making it ideal for industrial and laboratory electronic setups.

Contains four independent 2-input NOR gates. 14-Pin PDIP through-hole package type. Operating voltage 2 to 6 V suitable for CMOS technology. Maximum propagation delay of 20ns at load CL. No Schmitt Trigger input, compatible with standard CMOS input signals.

Push pull output type with balanced high and low level output currents. Industrial temperature range coverage (-40°C to 85°C). Complies with 74HC series logic family standards.

This Texas Instruments logic gate IC is well-suited for digital logic circuit design, automation, industrial control, and education electronics projects. It is a reliable choice for semiconductor and electronic component applications requiring precise NOR logic functionality.
