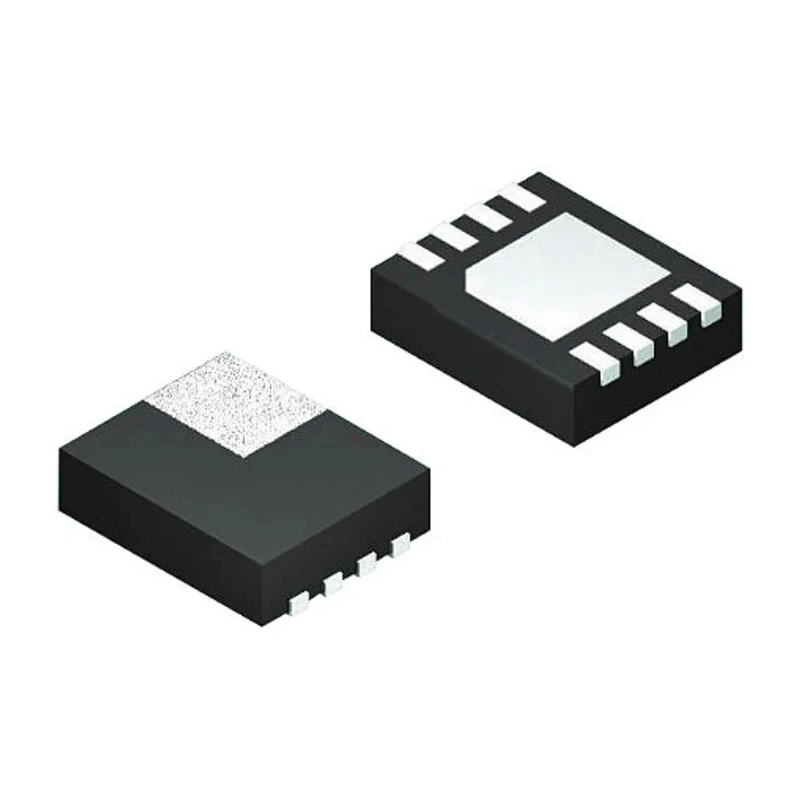

Infineon NOR 256 MB SPI Flash Memory 8-Pin WSON S25FL256SAGNFI001

Infineon S25FL256SAGNFI001 NOR 256 MB SPI Flash Memory in 8-Pin WSON package is a high-density non-volatile memory designed for embedded systems requiring fast, reliable storage. This device supports synchronous SPI interface with maximum clock frequency of 133 MHz, enabling efficient data transfers suitable for automotive and industrial applications. Operating over a voltage range of 2.7 V to 3.6 V and an extended temperature range of -40°C to 85°C, it excels in harsh environment deployments.

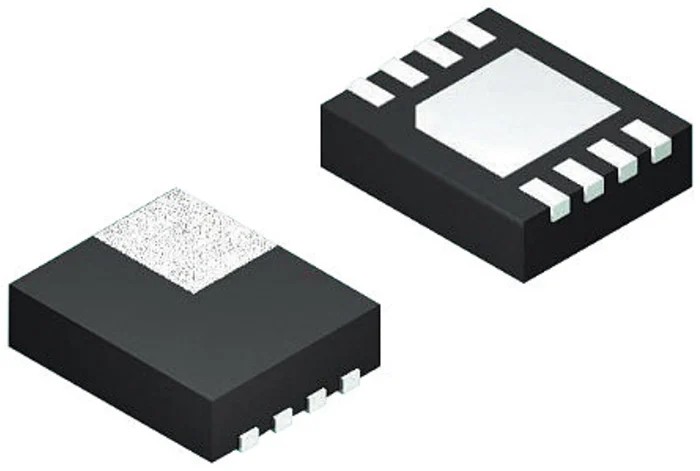

The NOR flash memory employs 256M x 1 bit memory organization and a NOR cell type to reduce random access time to 14.5 ns, making it well suited for executing code directly from memory. The 8-pin WSON package measuring 8 mm by 8 mm with a height thickness of 750 µm allows for compact surface mounting on PCBs, optimizing space usage in embedded designs.

This memory is ideal for applications such as ECU firmware and boot code storage in automotive vehicles, industrial controllers requiring extended temperature range components, telematics units for data logging and updates, secure boot implementations, and constrained consumer electronic devices needing mass storage with limited board real estate.

Qualified to meet AEC-Q100 automotive standards, the S25FL256S Series ensures robust performance and reliability. It offers memory sizes of 128M, 256M, and 64M words with 4 bits per word, catering to diverse system requirements.

256 MB memory capacity enables storage of extensive firmware images. Synchronous SPI interface supports transfers up to 133 MHz clock speed. Wide supply voltage from 2.7 V to 3.6 V suits varying power architectures. NOR cell organisation with 14.5 ns random access time minimizes code fetch latency.

Compact 8-pin WSON surface mount package measures 8 mm x 8 mm x 0.75 mm. Automotive AEC-Q100 qualification ensures high-grade reliability. Operates over industrial temperatures from -40°C to 85°C for harsh environments. Memory organisation supports flexible addressing with 256M x 1 bit and multiple word options.

Ideal for automotive ECU firmware, industrial controllers, telematics, and embedded system secure boot.

This Infineon Flash Memory product provides a reliable solution for designers requiring high-performance, robust embedded memory in automotive and industrial sectors. Explore more semiconductor and memory solutions at EnvMart for your electronic component needs.
