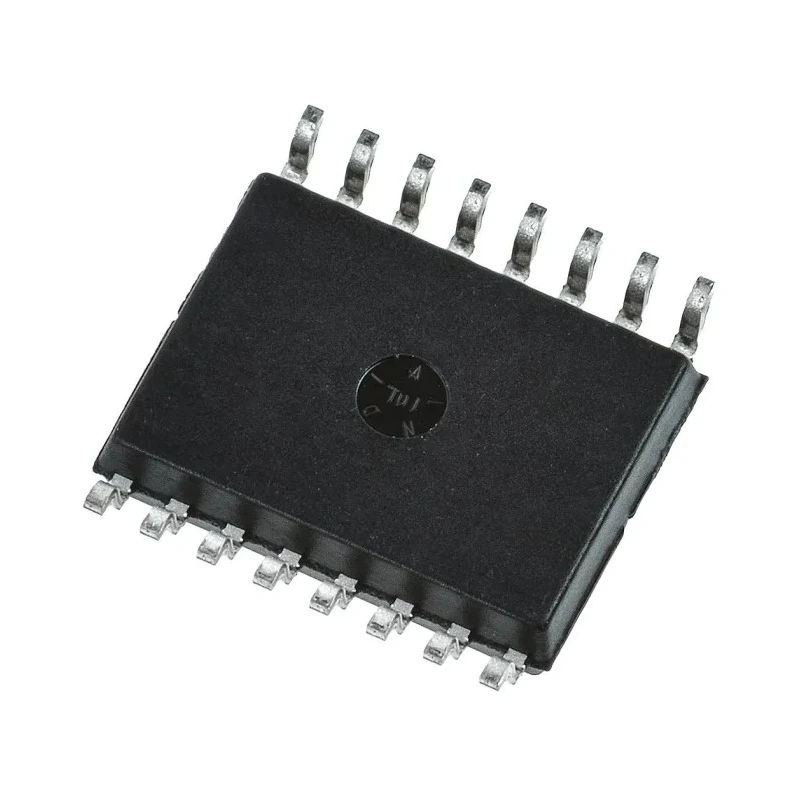

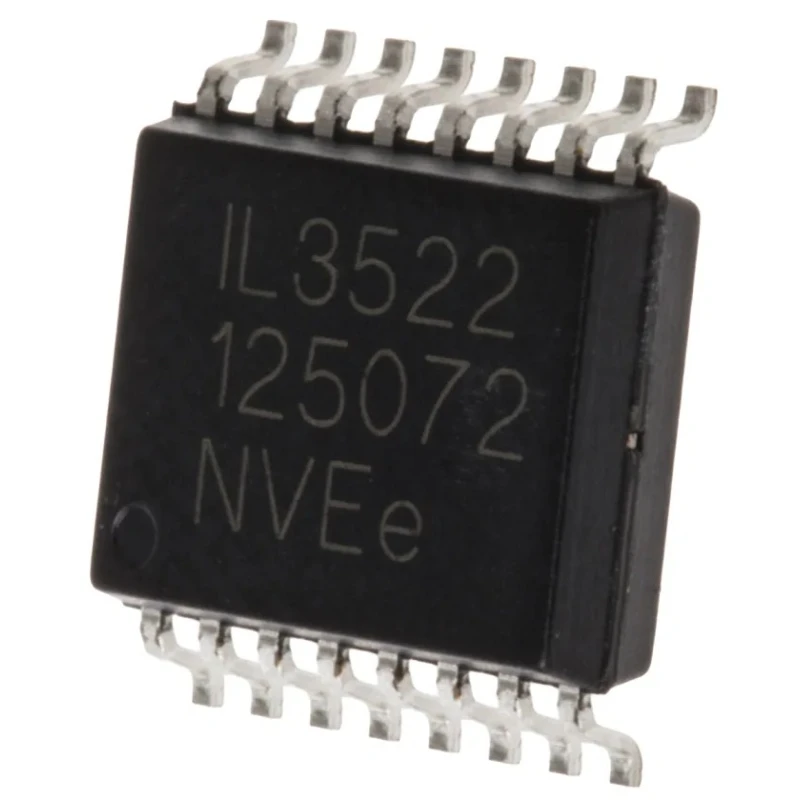

NVE Digital Line Transceiver IL3522E Non-Inverting Bus Transceiver IC 3V-5V 60mA 16-Pin SOIC IL3522E

Free Delivery in India | Lowest Global Shipping Charges

NVE Digital Line Transceiver IL3522E Non-Inverting Bus Transceiver IC 3V-5V 60mA 16-Pin SOIC IL3522E



Category Line Interface ICs Brand NVE Condition New

Specifications

Country of Origin	United States
Brand	NVE
Height	2.5mm
Length	10.49mm
Model	IL3522E
Width	7.42mm
Mount Type	Surface
Output type	Digital
Series	IL3522
Input Type	Digital
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
IC Type	Line Transceiver IC
Pin Count	16
Maximum Supply Voltage	5V
Logic Family	CML
Logic Function	Bus Transceiver
Minimum Supply Voltage	3V
Maximum High Level Output Current	60mA
Maximum Propagation Delay Time @ CL	35ns
Supply Current	6mA

Key Features

The device operates within a temperature range of -40°C to 85°C.
It delivers a maximum high-level output current of 60mA ensuring reliable signal transmission.
The maximum propagation delay time at CL is 35ns providing fast data communication.
Supply current is low at 6mA enhancing energy efficiency for embedded applications.
The compact form factor includes dimensions of 10.49mm length, 7.42mm width, and 2.5mm height.
The transistor-transceiver belongs to the IL3522 series designed specifically for RS-485 line drivers and receivers.
It is designed with surface mount technology for easy PCB assembly.
Polarity is digital non-inverting ensuring signal integrity.

Product Description

NVE IL3522E digital line transceiver is a high-performance, non-inverting bus transceiver IC in a 16-pin SOIC package. The device operates on supply voltages ranging from 3V to 5V and is designed primarily for RS-485 line drivers and receivers, ideal for robust digital communication in industrial and commercial electronic systems.

The IL3522E supports a maximum high-level output current of 60mA and features a maximum propagation delay time of 35ns at CL capacitor load, enabling fast and reliable data transfer. With a low supply current of 6mA, the device ensures energy-efficient operation suitable for embedded and low-power systems.

Operating temperature range is broad from -40°C to 85°C, supporting use in harsh industrial environments. The package dimensions are compact with a length of 10.49mm, width 7.42mm, and height 2.5mm, and the device is surface-mount compatible for ease of PCB integration.

The digital non-inverting polarity and compatibility with CML logic family add to the flexibility in design applications. The IL3522 series devices from NVE are known for reliable signal transceiving capabilities and industrial-grade durability.

Operates between 3V to 5V supply voltages. Maximum output current of 60mA provides strong signal drive. Maximum propagation delay time of 35ns ensures high-speed communication. Low supply current (6mA) for energy-efficient applications.

Supports operating temperature from -40°C to 85°C for rugged environments. Compact 16-pin SOIC package with small footprint dimensions. Surface mount technology for efficient PCB assembly. Non-inverting digital polarity maintains signal fidelity.

CML logic family compatible for diverse digital circuit integration.

This transceiver IC is well suited for industrial, automation, data communication, electronic interfaces, and embedded systems requiring robust and fast line transceiving. It plays a critical role in enhancing production efficiency and system communications in electronics manufacturing, HVAC control, and signal processing applications.

Choose the NVE IL3522E line transceiver for high performance digital RS-485 line driver and receiver applications. Explore more semiconductor components in the Line Interface ICs category at EnvMart.
